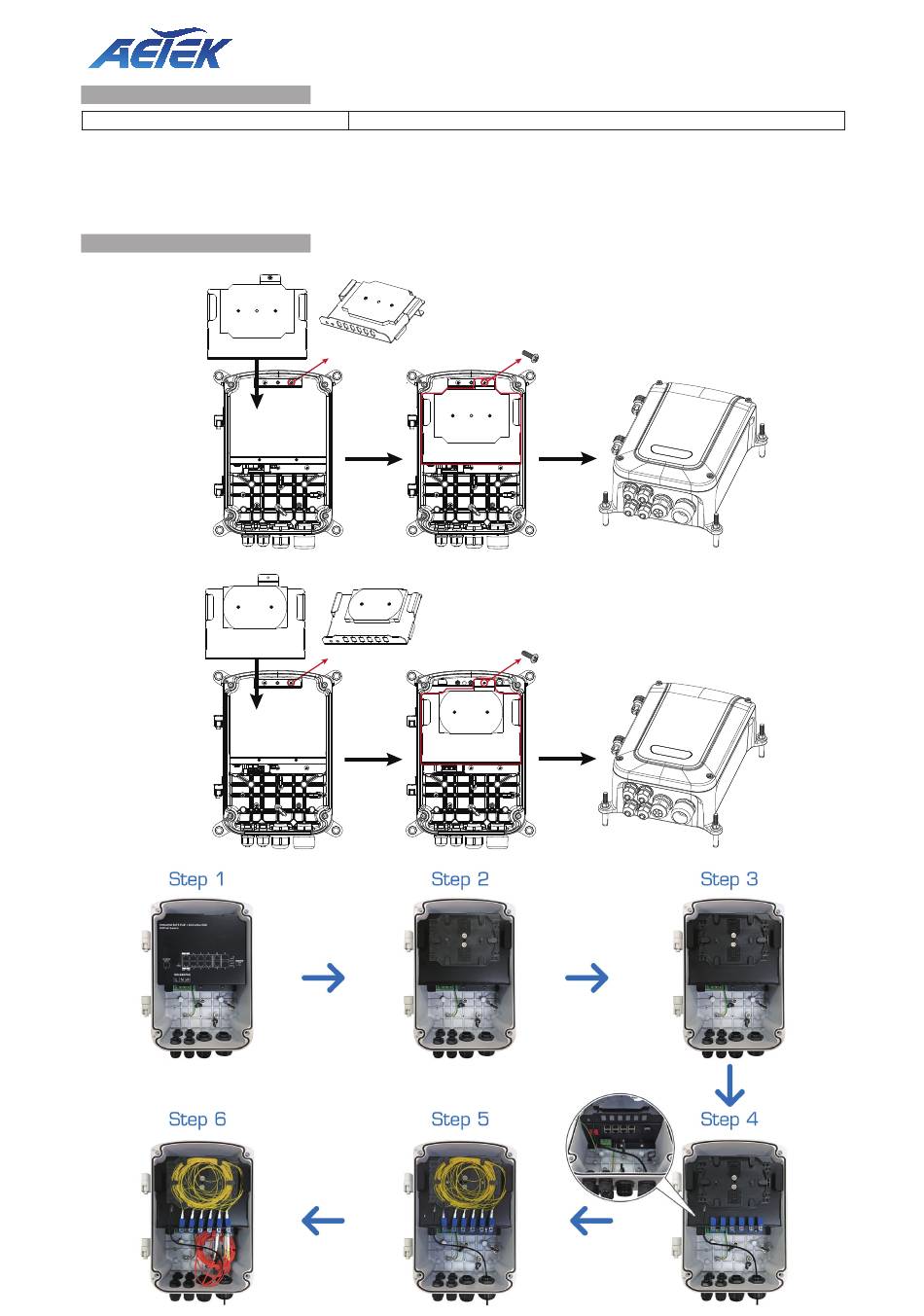

AT-303 & AT-303-V2 Fiber Splice Tray
Quick Installation Guide
PACKAGE CONTENTS
* 1x Fiber Splice Tray
Note : AT-303 & AT-303-V2 only for H21-082-31-150、H40-044-30-150-v3、H40-044-91-250-v3、H40-082-30-
250-v3、H40-044-30-DC、H40-044-91-DC、H40-082-30-DC、H51-084-30-250、H51-044-90-250、H51-044-91-250、
H51-044-30-150、H51-044-30-DC、H51-084-30-DC、H51-044-90-DC、H51-044-91-DC、H60-044-30-150、H60-084-
30-250、H60-044-90-250、H60-044-91-250、H60-044-30-DC、H60-084-30-DC、H60-044-90-DC、H60-044-91-DC
use.
Installation
AT-303 fiber panel
AT-303
AT-303-V2 fiber panel
AT-303-V2
* 1x Quick Installation Guide
Remove the screw
Remove the screw
Mounting screw
Mounting screw
P/N: A625014401G
Advertisement
Related Manuals for AETEK AT-303
Summary of Contents for AETEK AT-303
- Page 1 AT-303 & AT-303-V2 Fiber Splice Tray P/N: A625014401G Quick Installation Guide PACKAGE CONTENTS * 1x Fiber Splice Tray * 1x Quick Installation Guide Note : AT-303 & AT-303-V2 only for H21-082-31-150、H40-044-30-150-v3、H40-044-91-250-v3、H40-082-30- 250-v3、H40-044-30-DC、H40-044-91-DC、H40-082-30-DC、H51-084-30-250、H51-044-90-250、H51-044-91-250、 H51-044-30-150、H51-044-30-DC、H51-084-30-DC、H51-044-90-DC、H51-044-91-DC、H60-044-30-150、H60-084- 30-250、H60-044-90-250、H60-044-91-250、H60-044-30-DC、H60-084-30-DC、H60-044-90-DC、H60-044-91-DC use. Installation AT-303 fiber panel Remove the screw...
- Page 2 1. Open Outdoor PoE Switch cover. 2. Remove the screws on the top above Outdoor PoE Switch. 3. Load the AT-303 & AT-303-V2 into the Outdoor PoE Switch. 4. After installation, lock the Outdoor PoE Switch cover. 5. Install the Outdoor PoE Switch on a wall or pole or corner (with AT-100 or AT-101 or AT-200)
