Summary of Contents for Sennheiser SKP 100 G3 - 01-09

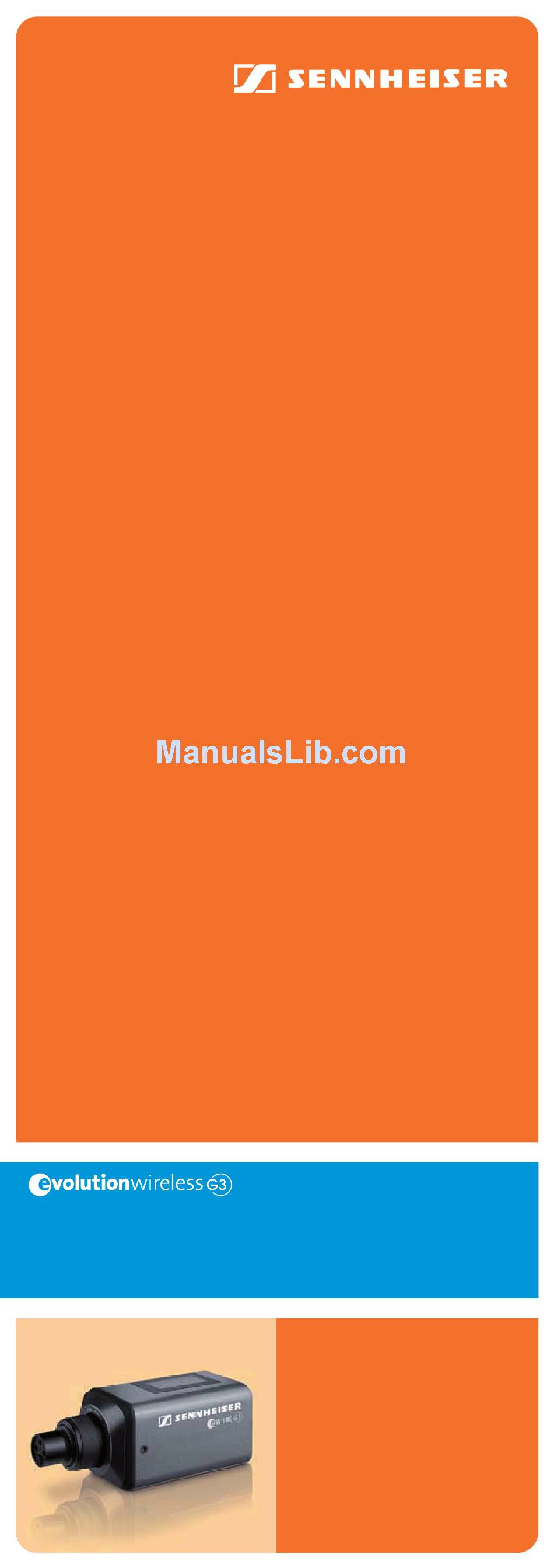

  • Page 1 SKP 100 Instruction manual...

  • Page 2: Table Of Contents

    Using the plug-on transmitter ................. 7 Switching the plug-on transmitter on/off ..........7 Deactivating the lock mode temporarily ............ 8 Muting the audio signal or deactivating the RF signal ......8 Selecting a standard display ................. 9 Using the operating menu ................10 The buttons ....................

  • Page 3: Important Safety Instructions

    • Heed all warnings and follow all instructions in this instruction manual. • Use only a cloth for cleaning the product. • Do not place the product near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.

  • Page 4: The Skp 100 G3 Plug-On Transmitter

    Channel 1 – freely selectable frequency Channel 2 – freely selectable frequency Frequency bank U Channel 12 – freely selectable frequency Each of the channels in the frequency banks “1” to “20” has been factory- preset to a fixed frequency (frequency preset).

  • Page 5: Delivery Includes

    The factory-preset frequencies within one frequency bank are intermodulation-free. These frequencies cannot be changed. For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency information sheet can be downloaded from the SKP 100 G3 product page on our website at www.sennheiser.com.

  • Page 6: Product Overview

    Battery compartment cover Overview of the displays After switch-on, the plug-on transmitter displays the “Frequency/Name” standard display. For further illustrations and examples of the different standard displays, refer to page 9. The display backlighting is automatically reduced after approx. 20 seconds.

  • Page 7: Putting The Plug-On Transmitter Into Operation

    Putting the plug-on transmitter into operation Inserting the batteries/accupack For powering the plug-on transmitter, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack (see “Accessories” on page 20). Slide the battery compartment cover...

  • Page 8: Using The Plug-On Transmitter

    The transmission link is established and the diversity receiver’s RF level display “RF” reacts. It is vital to observe the notes on frequency selection on page 17. If you cannot establish a transmission link between plug-on transmitter and receiver, read the chapter “Synchronizing the plug-on transmitter with a receiver”...

  • Page 9: Deactivating The Lock Mode Temporarily

    You can activate or deactivate the automatic lock mode via the “Auto Lock” menu item (see page 14). If the lock mode is activated, you have to temporarily deactivate it i0n order to be able to operate the plug-on transmitter:...

  • Page 10: Selecting A Standard Display

    MUTE. The plug-on transmitter reacts as indicated in the table. The current state of the muting function or the RF signal is displayed on the display panel of the plug-on transmitter: 533.875 ew100 G3...

  • Page 11: Using The Operating Menu

    Using the operating menu Using the operating menu A special feature of the Sennheiser ew G3 series is the consistent, intuitive menu structure of transmitters and receivers. As a result, adjustments to the settings can be made quickly – even in stressful situations, for example on stage or during a live show or presentation.

  • Page 12: Working With The Operating Menu

    Working with the operating menu If the lock mode is activated, you have to deactivate it In order to be able to work with the operating menu (see page 8). By way of example of the “Sensitivity” menu, this section describes how to use the operating menu.
  • Page 13 Change to the “Exit” menu item. Menu Exit Confirm your selection. You return to the next higher menu level or you exit the operating menu and return to the current standard display. To directly return to the current standard display: Press the ON/OFF button.

  • Page 14: Adjusting Settings Via The Operating Menu

    Adjusting settings via the operating menu Make use of the possibility to adjust settings via the operating menu of your receiver and to transfer these settings to the plug- on transmitter. For more information, refer to the instruction manual of the receiver.
  • Page 15 Enter a character; and confirm store the setting “Stored” Via the “Name” menu item, you can enter a freely selectable name (e.g. the name of the performer) for the plug-on transmitter. The name can be displayed on the “Frequency/Name” and “Name/ Channel”...

  • Page 16: The Extended Menu "Advanced Menu

    When you have selected one of the system banks and then select the “Tune” menu, the plug-on transmitter automatically switches to channel 1 of the frequency bank “U”. In this case, “U.1” briefly appears on the display panel. Upon delivery, the channels of the frequency bank “U”...
  • Page 17 The pilot tone supports the receiver’s squelch function. Devices of the ew 100 G1 series (generation 1) do not support the pilot tone function. Therefore, please observe the following when combining a...

  • Page 18: Synchronizing The Plug-On Transmitter With A Receiver

    Make sure that you set the plug-on transmitter to the same frequency bank and the same channel as the receiver (see page 13). If you still cannot establish a transmission link, refer to the chapter “If a problem occurs ...” on page 19.

  • Page 19: Cleaning The Plug-On Transmitter

    ... for optimum reception • Transmission range depends to a large extent on location and can vary from about 10 m to about 150 m. There should be a “free line of sight” between plug-on transmitter and receiving antennas. • To avoid overloading the receiver, observe a minimum distance of 5 m between plug-on transmitter and receiving antennas.

  • Page 20: If A Problem Occurs

    If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at...

  • Page 21: Accessories

    Accessories Accessories The following SKP 100 G3 accessories are available from your specialist dealer: Cat. No. Accessory 009950 BA 2015 accupack 009828 L 2015 charger 005232 POP 1 pouch (with belt clip)

  • Page 22: Specifications

    180 mA ≤25 µA • with switched-off plug-on transmitter Operating time typ. 8 hrs Dimensions approx. 105 mm x 43 mm x 43 mm Weight (incl. batteries) approx. 195 g In compliance with Europe EN 301489-1/-9 Radio EN 300422-1/-2...

  • Page 23: Manufacturer Declarations

    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 24: Index

    (lock mode) displays adjusting the contrast of the display panel (LCD Contrast) charge status overview standard displays factory default settings (resetting the settings made in the operating menu) frequency ~ ranges preset frequencies selecting ~ presets setting a transmission frequency...
  • Page 25 Index microphones connecting overview suitable ~ Mute (muting the audio signal) Mute Mode (setting the mode for the MUTE switch) MUTE switch function setting the mode (Mute Mode) muting (audio signal) Name (entering a name) offline operation (RF signal deactivated)
  • Page 26 Sennheiser electronic GmbH & Co. KG Printed in Germany Am Labor 1, 30900 Wedemark, Germany Publ. 01/09 www.sennheiser.com 529675/A01 Instrucciones de uso...
