  • Page 1 SKM 100 Instruction manual...

  • Page 2: Table Of Contents

    Areas of application ... 4 Delivery includes ... 5 Product overview ... 6 Overview of the SKM 100 G3 radio microphone ... 6 Overview of the displays ... 7 Putting the radio microphone into operation ... 8 Inserting the batteries/accupack ... 8 Charging the accupack ...

  • Page 3: Important Safety Instructions

    Replacement parts When replacement parts are required, be sure the service technician uses replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

  • Page 4: The Skm 100 G3 Radio Microphone Family

    The SKM 100 G3 radio microphone family This radio microphone is part of the evolution wireless series generation 3 (ew G3). With this series, Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use.

  • Page 5: Areas Of Application

    It might be that these frequencies are intermodulation-free. Areas of application The radio microphone can be combined with the EM 100 G3 rack-mount receiver. The EM 100 G3 rack-mount receiver is available in the same UHF frequency ranges and is equipped with the same frequency bank system with factory-preset frequencies.

  • Page 6: Delivery Includes

    Delivery includes Delivery includes The packaging contains the following items: 1 SKM 100 G3 radio microphone incl. microphone head 2 AA size batteries, 1.5 V 1 microphone clamp 1 instruction manual 1 frequency information sheet 1 RF licensing information sheet...

  • Page 7: Product Overview

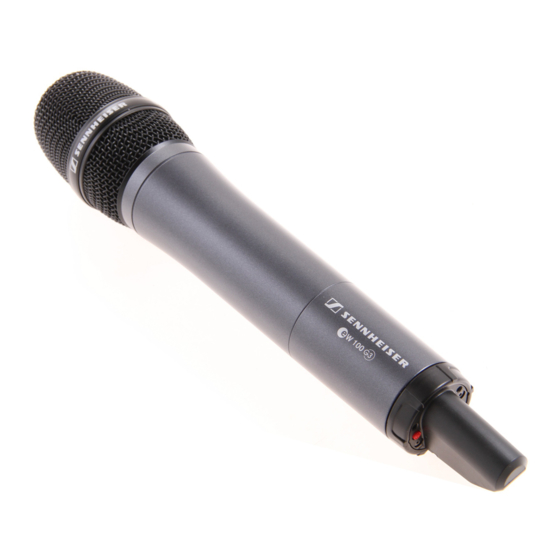

    Product overview Overview of the SKM 100 G3 radio microphone Microphone head (interchangeable) Name and pick-up pattern of the microphone head (not visible here, see page 4) Body of radio microphone Battery compartment (not visible from outside) Display panel, backlit in orange...

  • Page 8: Overview Of The Displays

    Overview of the displays After switch-on, the radio microphone displays the stan- dard display “Frequency/Name”. For further illustrations and examples of the different standard displays, refer to page 15. The display backlighting is automatically reduced after approx. 20 seconds. 533.875...

  • Page 9: Putting The Radio Microphone Into Operation

    Inserting the batteries/accupack For powering the radio microphone, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack (see “Accessories and spare parts” on page 29). Unscrew the lower part of the radio microphone from the radio microphone’s body...

  • Page 10: Charging The Accupack

    Close the battery compartment cover Push the battery compartment into the radio micro- phone’s body. Screw the lower part of the radio microphone back to the radio microphone’s body Charging the accupack To charge the radio microphone with the BA 2015 accupack (see “Accessories and spare parts”...

  • Page 11: Changing The Microphone Head

    Changing the microphone head The microphone head Schrauben Sie das Mikrofonmodul Do not touch the contacts of the radio microphone nor the contacts of the microphone head contacts can become dirty or damaged if touched. When unscrewing the microphone head operation, the muting function is automatically acti- vated.

  • Page 12: Changing The Color-Coded Protection Ring

    Putting the radio microphone into operation Changing the color-coded protection ring The color-coded protection ring function switch from accidental operation. Protection rings sories (see “Accessories and spare parts” on page 29). The protection rings allow you to clearly identify each radio microphone.

  • Page 13: Using The Radio Microphone

    25. If you cannot establish a transmission link between radio microphone and receiver, refer to the chapter “Synchro- nizing the radio microphone with a receiver” on page 25. Switching the radio microphone on/off To switch the radio microphone...
  • Page 14 RF signal. The transmission icon 533.875 ew100 G3 MUTE Use this function to save battery power or to prepare a radio microphone for use during live oper- ation without causing interference to existing trans- mission links. activate signal: Briefly press the ON/OFF appears on the display panel.

  • Page 15: Deactivating The Lock Mode Temporarily

    “Auto Lock” menu item (see page 22). If the lock mode is activated, you have to temporarily deac- tivate it In order to be able to operate the radio microphone: Press the multi-function switch. “Locked“ appears on the display panel.

  • Page 16: Selecting A Standard Display

    Move the multi-function switch to select a standard display. Contents of the display Selectable standard display 533.875 ew100 G3 MUTE B.Ch: 20.12 533.875 MUTE ew100 G3 B.Ch: 20.12 MUTE Using the radio microphone “Frequency/Name” “Frequency bank/Channel/ Frequency” “Name/Frequency bank/ Channel”...

  • Page 17: Using The Operating Menu

    Using the operating menu Using the operating menu A special feature of the Sennheiser ew G3 series is the consistent, intuitive menu structure of transmitters and receivers. As a result, adjustments to the settings can be made quickly – even in stressful situations, for example on stage or during a live show or presentation.

  • Page 18: Overview Of The Operating Menu

    Overview of the operating menu Main menu “Menu” Sensitivity Frequency Preset Name Auto Lock Advanced Exit Display Main menu “Menu” Sensitivity Frequency Preset Name Auto Lock Advanced Exit Extended menu “Advanced Menu” Tune Pilot Tone LCD Contrast Reset Software Revision Exit Using the operating menu Extended menu...

  • Page 19: Working With The Operating Menu

    Using the operating menu Working with the operating menu If the lock mode is activated, you have to deactivate it In order to be able to work with the operating menu (see page 14). By way of example of the “Sensitivity” menu, this section describes how to use the operating menu.
  • Page 20 Exiting a menu item Change to the “Exit” menu item. Menu Exit Confirm your selection. You return to the next higher menu level. To directly return to the current standard display: Press the ON/OFF Using the operating menu ON/OFF button.

  • Page 21: Adjusting Settings Via The Operating Menu

    “Sensitivity” Adjustment range: 0 to −48 dB, adjustable in steps of 6 dB The audio level display “AF” audio level, even if the radio microphone is muted, e.g. allowing you to check the adjusted sensitivity before live operation. B.Ch: 20.12 533.875...
  • Page 22 Only the factory-preset frequencies within one frequency bank are intermodulation-free (see page 25). Radio microphone and receiver of a transmission link have to be set to the same frequency. It is vital to observe the notes on frequency selection on page 25.

  • Page 23: The Extended Menu "Advanced Menu

    Auto Lock Active Call up “Auto Lock” The lock mode prevents that the radio microphone is accidentally switched off or programed during operation. The lock mode icon indicates that the lock mode is activated. Move the multi-function switch to select the desired setting.
  • Page 24 Adjusting settings via the operating menu It is vital to observe the notes on frequency selection on page 25 Setting a transmission frequency for the current channel Move the multi-function switch until the “Tune” menu item appears. Press the multi-function switch. The frequency selection appears.
  • Page 25 Pilot Tone Active Call up “Pilot Tone” The radio microphone adds an inaudible signal, known as the pilot tone, to the transmitted signal. The receiver detects and evaluates the pilot tone. The pilot tone supports the receiver’s squelch function (Squelch) and protects against interference due to RF signals from other devices.

  • Page 26: Synchronizing The Radio Microphone With A Receiver

    For information on automatic synchronization of radio microphones with receivers (multi-channel operation), refer to the instruction manual of your receiver. For more information on multi-channel operation, visit the SKM 100 G3 product page at www.sennheiser.com. icon.

  • Page 27: Cleaning The Radio Microphone

    Keep all liquids away from the radio microphone. Use a cloth to clean the radio microphone from time to time. Do not use any solvents or cleansing agents. To clean the sound inlet basket of the microphone head...

  • Page 28: Recommendations And Tips

    Recommendations and tips ... for optimum sound • Hold the radio microphone in the middle of the micro- phone body. Holding it close to the sound inlet basket will influence the radio microphone’s pick-up pattern. • You can vary the bass reproduction by increasing/ decreasing the talking distance.

  • Page 29: If A Problem Occurs

    If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.sennheiser.com under “Service & Support”. Possible solution Deactivate the lock mode (see page 14).

  • Page 30: Accessories And Spare Parts

    MMD 845-1 microphone head, dynamic, super-cardioid 501581 MME 865-1 microphone head, condenser, super-cardioid 502582 MMK 965-1 BK microphone head, color black externally polarized dual diaphragm condenser microphone, cardioid/super-cardioid (switch- able) 502583 MMK 965-1 BL microphone head, color blue externally polarized dual diaphragm condenser...

  • Page 31: Specifications

    12 user program- mable channels 42 MHz ±24 kHz/±48 kHz ≤ ±15 ppm typ. 30 mW can be switched off Sennheiser 80–18,000 Hz ≥ 110 dBA ≤ 0.9% 48 dB, adjustable in 6-dB steps −10°C to +55°C 2 AA size batteries, 1.5 V or BA 2015 accupack 2.4 V...

  • Page 32: Polar Diagrams And Frequency Response Curves Of The Microphone Heads

    Microphone dynamic type Sensitivity 2.1 mV/Pa Pick-up cardioid pattern Max. SPL 154 dB SPL Polar diagrams and frequency response curves of the microphone heads Polar diagram MMD 835-1 0° 30° 60° 90° 120° 150° 125 Hz 250 Hz 180° 500 Hz...
  • Page 33 Specifications Frequency response curve MMD 835-1 Frequency response curve MMD 845-1 Frequency response curve MME 865-1 0° 1.000 1.000 1.000 90° 10.000 10.000 10.000...

  • Page 34: Manufacturer Declarations

    Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •...
  • Page 35 This class B digital device complies with the Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment. Before putting the device into operation, please observe the...

  • Page 36: Index

    3 selecting (Frequency Preset) 21 selecting (Tune) 22 Charging accupack 9 battery status display 7 Cleaning (radio microphone) 27 Color-coded protection ring, changing 11 Deactivating lock mode temporarily 14 Displays adjusting the contrast (LCD Contrast) 24 charge status 7...
  • Page 37 (Tune) 22 Setting up multi-channel system 26 transmission link 26 Software Revision (displaying the software revision) 25 Synchronizing (radio microphone/receiver) 26 Transmission frequency selecting (Frequency Preset) 21 setting (Tune) 22 Transmission link, establishing 26 Transmission power, optimizing 28...
  • Page 38 Sennheiser electronic GmbH & Co. KG Printed in Germany Am Labor 1, 30900 Wedemark, Germany Publ. 01/09 www.sennheiser.com 529671/A01...
