Instructions For Following Product(s)
• All standard Highline 25 Credenzas
Related Instructions
• 02D00018 - Cabinet Door Hinge
• 02D00021 - Cabinet Drawer Slide
• 02D00020 - Cabinet Trash Drawer
Tools Required
Driver\Drill Gun
In The Box (Supplied By DatesWeiser)

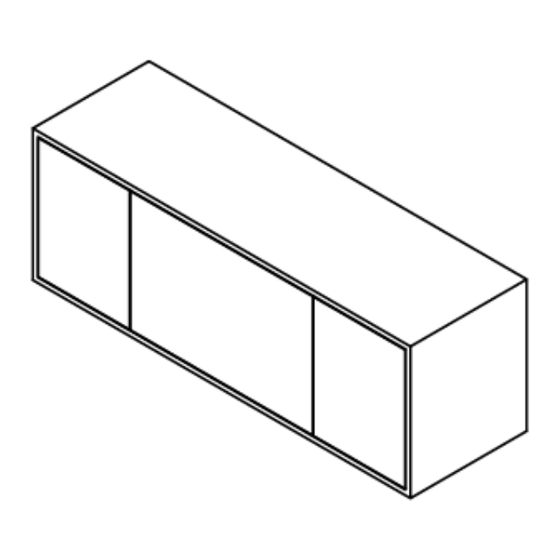

Instructions for Highline 25 Credenza
Instruction Number: 02D00014-R01
Tape Measure
Product(s) Required But Ordered Separately
• None
Driver Bit,
Phillips #3
Page 1 of 3
Advertisement
Related Manuals for DATESWEISER Highline 25 Credenza
Summary of Contents for DATESWEISER Highline 25 Credenza
- Page 1 Instructions for Highline 25 Credenza Instruction Number: 02D00014-R01 Instructions For Following Product(s) Product(s) Required But Ordered Separately • All standard Highline 25 Credenzas • None Related Instructions • 02D00018 - Cabinet Door Hinge • 02D00021 - Cabinet Drawer Slide •...
- Page 2 Instructions for Highline 25 Credenza Case & Leg Assembly Note: Completely assembled Credenzas are typically very heavy. Starting the assembly process as close as possible to its final position will make any re-positioning post assembly easier. With Case (A) positioned up-side-down, secure Base Assembly (B01) using Fastener (B03). See Figure 01.
- Page 3 Instructions for Highline 25 Credenza Full-Length Top (If Equipped) Note: Assembly is complete if Credenza is not equipped with an Accent Top. Clear Glass Only Peel and stick Bumpers (C02), placing one in each corner of the Credenza inset approximately 2" to the center of the Bumper. Then (Spaced equally) stick the remaining bumpers along the length of the Credenza.
