Summary of Contents for HDL MWC1-KT.10

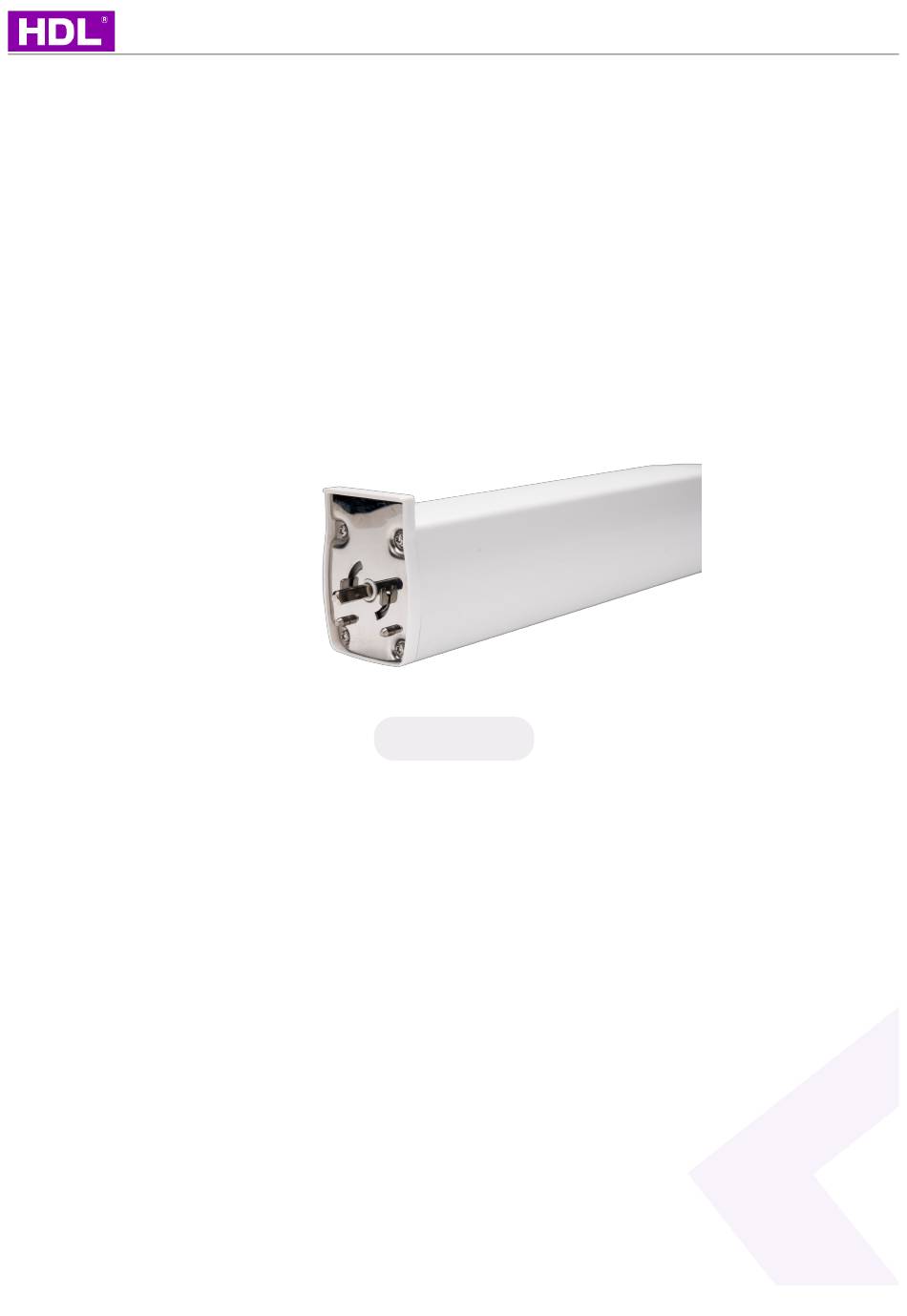

- Page 1 Curtain Motor Instruction Manual MWC1-KT.10 Before using this product, please read this manual carefully and keep it properly！ Document Version：C...
- Page 2 ◇◆ Overview Curtain Motor (Model: MWC1-KT.10; hereinafter referred to as the“product”or “device”) is designed to drive curtain track, such as open or close the curtain cloth. Additionally, the device is compatible with commissioning software and mobile APP. Upon proper installation and commissioning, it is able to integrate the device into smart room system, helping end users easily and conveniently remote control their curtains.
-
Page 3: Technical Data
◇◆ Technical Data Motor input voltage 100 - 240V AC, 50/60Hz Motor rated consumption KNX rated voltage 30V DC KNX rated current 8mA/30V DC Motor torque 1.2 N·m Motor rotate speed 90rpm Motor maximum load-bearing 50kg ＜30dB ,at silent mode Motor sound level Communication protocol Working temperature... -
Page 4: Safety Precaution
Warning: The installation and testing for the product must be carried out by HDL Automation Co., Ltd. (hereinafter referred to as HDL) or its appointed service agencies. The electric construction shall comply with local laws and safety regulations. - Page 5 Before performing any installation or disassembly procedures, any maintenance or cleaning procedures on the device, it is crucial to disconnect the device from all voltage sources. This step is necessary to ensure the safety of the technician and prevent any potential damage to the device. Do not use corrosive liquid to wipe the device body, especially the interface, so to avoid damage to the device.
-
Page 6: Installation
◇◆ Installation Warning: Before performing any installation procedures on the device, it is crucial to disconnect the device from all voltage sources. This step is necessary to ensure the safety of the technician and prevent any potential damage to the device. Tips: The device should be mounted onto the guide rail. -
Page 7: Operation
◇◆ Disassembly ◇◆ Operation The device is configured with one programming button and indicator, as described below. Note: All operation and settings described as below should be carried out when the device is running normally. 1. Basic Operation 1.1. Switch Power-on to Quick Start... - Page 8 Operation Status of Indicator Connect the device to power supply, then it starts running normally. Red light is on then off. 1.2. Test Motor Travel Operation Status of Motor Reconnect the device to power supply. When it restarts, pull Curtain motor will be activated to work and the curtain cloth gently towards any direction.
- Page 9 Step 3: Long press Red light programming button for is on. Step 4: Long press Red light After successfully If no operation on programming button programming button for flashes set, the motor rotates within 15s, it will exit setting 3s again. then off.
-
Page 10: Packing List
Status Status of Function Operation Remark Motor Indicator Option 1: Step 1: Short press programming button, then Pairing by release until the indicator is red. At this Red light programming moment, the device is entering the status of is on. button learning code. -
Page 11: Technical Support
HDL has all the intellectual property rights to this document and contents thereof. Reproduction or distribution for third parties are prohibited without written authorization from HDL. Any infringement of HDL’s intellectual property rights will be investigated the legal liability. The contents of this document will be updated as the updates of product versions or other reasons. Unless otherwise agreed upon, this document is to be used as a guidance only.
