Summary of Contents for Halverson HWP-120

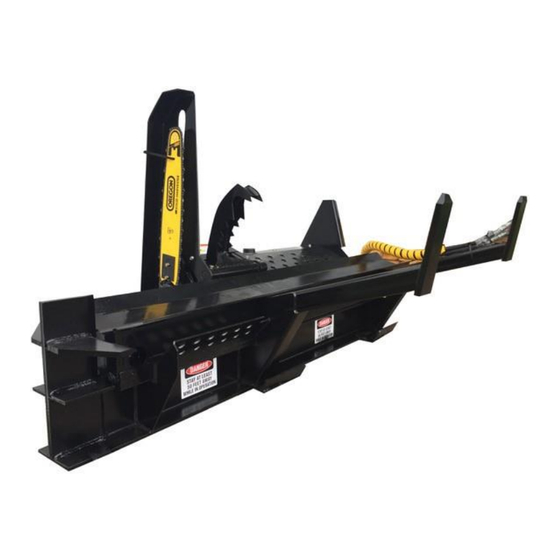

- Page 1 HWP-120 Firewood Processor 205 College Street Pine River, MN 56474 218-587-2065 www.HalversonWoodProducts.com...
- Page 2 DOES NOT EXCEED 3000 PSI or the valve body could fail if operated at higher pressures. In addition to standard pressure and return lines, the HWP-120 requires a low pressure case drain line. The chain saw motor has a small amount of internal flow to provide lubrication to the motor’s internal moving parts.
- Page 3 HWP-120 Specifications Length ………………………………………………………… Travel Configuration: 90” Working Configuration: 114” Width ................. 50” Height ................46” Weight ................975 lbs. Hydraulic Requirements Flow: 12.5 - 18 gpm Pressure: 2850-3000 psi Connections: 1-pressure, 1-return and 1-case drain Control System..............Solenoid operated valves mounted on the processor.
- Page 4 DIAGRAM OF VALVE BODY VALVES ON VALVE BODY WIRE LOCATION SV1-GRAB ARM UP AND DOWN 1-GRAB ARM UP SV2-ENABLER / MAIN PRESSURE RELIEF 2-GRAB ARM DOWN RV1-SAW UP RELIEF 3-UNLOADER CH1-CAP 4-TABLE FORWARD CBV1-FLOAT VALVE 5-TABLE BACK 6-SAW UP 7- SAW DOWN www.HalversonWoodProducts.com 218-587-2065...
-
Page 5: General Safety
GENERAL SAFETY Labels Your HWP-120 Firewood Processor carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the labels that appear on the equipment. Take a moment to study them and make note of their location on your processor before you operate the unit. Replace damaged or missing labels immediately. -
Page 6: Installation
• Process one log at a time. • Do not modify the processor except as noted in this manual. Operator Requirements • Operators must be adults and familiar with the operation of the skid steer and HWP-120. • Never operate while impaired. General Safe Operating Practices •... - Page 7 GENERAL SAFETY, CONTINUED Chain Shot What is chain shot? Chain shot is the high velocity separation and ejection of a piece or pieces of cutting chain from the end of a broken chain in mechanized timber harvesting. Chain shot exposes both machine operators and bystanders to a risk of serious injury or death.
- Page 8 INSTALLATION Fitting the Processor to the Skid Steer 1) Engage the upper portion of the skid steer’s quick-attach mount, and then rotate the mount into position against the processor’s main mounting plate. 2) Lock the pins or wedges to secure the processor to the skid steer mount. Make sure the locks, pins or wedges are fully engaged into the slots on the NOTE: When...
- Page 9 INSTALLATION, CONTINUED Connecting the Processor to the Skid Steer With the wiring completed, the firewood processor can be re-attached and the cable and hydraulic connections can be made. Connect the case drain hose to the case drain quick coupler on the skid steer, then the pressure line (“P”) and the tank/return line (“...
- Page 10 ADJUSTMENTS & CONTROL FUNCTIONS SAW OILER: To increase the oiler pump output, turn the adjusting stem out (counter clockwise). To decrease the amount of bar oil, turn the stem in (clockwise). CLEANING: Keep the splitter area, valve compartment and splitting table free of debris.
- Page 11 When Processor is not in use, disconnect power cord or it could drain your battery and shorten the life of your electrical components. CONTACT HALVERSON WOOD PRODUCTS OR YOUR DEALER BEFORE ADJUSTING ANY VALVES! OPTIONAL CAB HARNESS KIT CONTROL DIAGRAM HWP-120...
-
Page 12: Replacing The Chain
REPLACING THE CHAIN Oregon Harvester Chain Micro Chisel Part #18HX078E (404.080” / 2.0mm) STEP ONE: Position the log table in the home position. From the cab, this would be all the way to the left. STEP TWO: Hold Saw button down, temporarily run oil to machine while bar goes down. STEP THREE: While holding the saw down, lower bar to ¾... -
Page 13: Operating Sequence
OPERATING SEQUENCE 1) Roll processor forward until the feet at the end of the legs are parallel to the ground. 2) Drive to the log pile and place the feet under a log. 3) Roll the processor back to pick up the log and allow it to roll down the legs onto the splitter table. 4) Press and hold the TABLE FORWARD button to extend the splitting cylinder and splitter table carrying the log to the splitter head. -
Page 14: Warranty
Specifically excluded are failures of and damage to any vehicle or other piece of equipment either rubber tired or tracked upon which the HWP-120 is attached and any damage to the HWP-120 caused by failure on a vehicle or other piece of equipment upon which the firewood processor is attached. - Page 15 Halverson Wood Products Inc. will have no obligation to the purchaser. Neither equipment distributors, equipment dealers, nor any other person or entity, has the authority to make a representation or promise on the behalf of Halverson Wood Products Inc. or to modify its terms in any way. Replacement Parts Warranty New Halverson Wood Products Inc.
-
Page 16: Troubleshooting
The remainder of the original warranty may be transferred to the subsequent owner of the HWP- 120 only by express written consent. Please report the transfer of ownership to Halverson Wood Products Inc. by phone at 218-587-2065 or by email. - Page 17 ATTACHMENT HARNESS 14 PIN OUT PLACEMENTS *Suggested Pin Out-Please contact your skid steer dealer for specifics CAT Pre 2022 KUBOTA POWER POWER GROUND Black GROUND Black SAW DOWN Yellow SAW DOWN Yellow SPLITTER OUT Purple SPLITTER OUT Purple GRAB UP Green GRAB UP Green...
- Page 18 TEREX-ASV-TAKEUCHI JOHN DEERE POWER POWER GROUND Black GROUND Black SAW DOWN Yellow GRAB ARM UP Green SPLITTER OUT Purple Purple SPLITTER OUT GRAB UP Green GRAB UP Blue GRAB DOWN Orange Yellow SPLITTER BACK Blue Orange SPLITTER BACK GRAB ARM DOWN NEW HOLLAND JOHN DEERE 2023 &...
- Page 19 Serial #: Date Purchased: www.HalversonWoodProducts.com 218-587-2065...
-
Page 20: Warranty Registration
I have received the HWP-120 Operations/Safety Manual. I have read and understand the HWP-120 Operations/Safety Manual. Halverson Wood Products Inc accepts no responsibility for misuse of the HWP-120 Firewood Processor. Any modifications to the HWP-120 Firewood Processor not performed by authorized service technicians will void Warranty.
