Halverson HWP-100-3P Manual

Firewood processor
Hide thumbs

Advertisement

Table of Contents

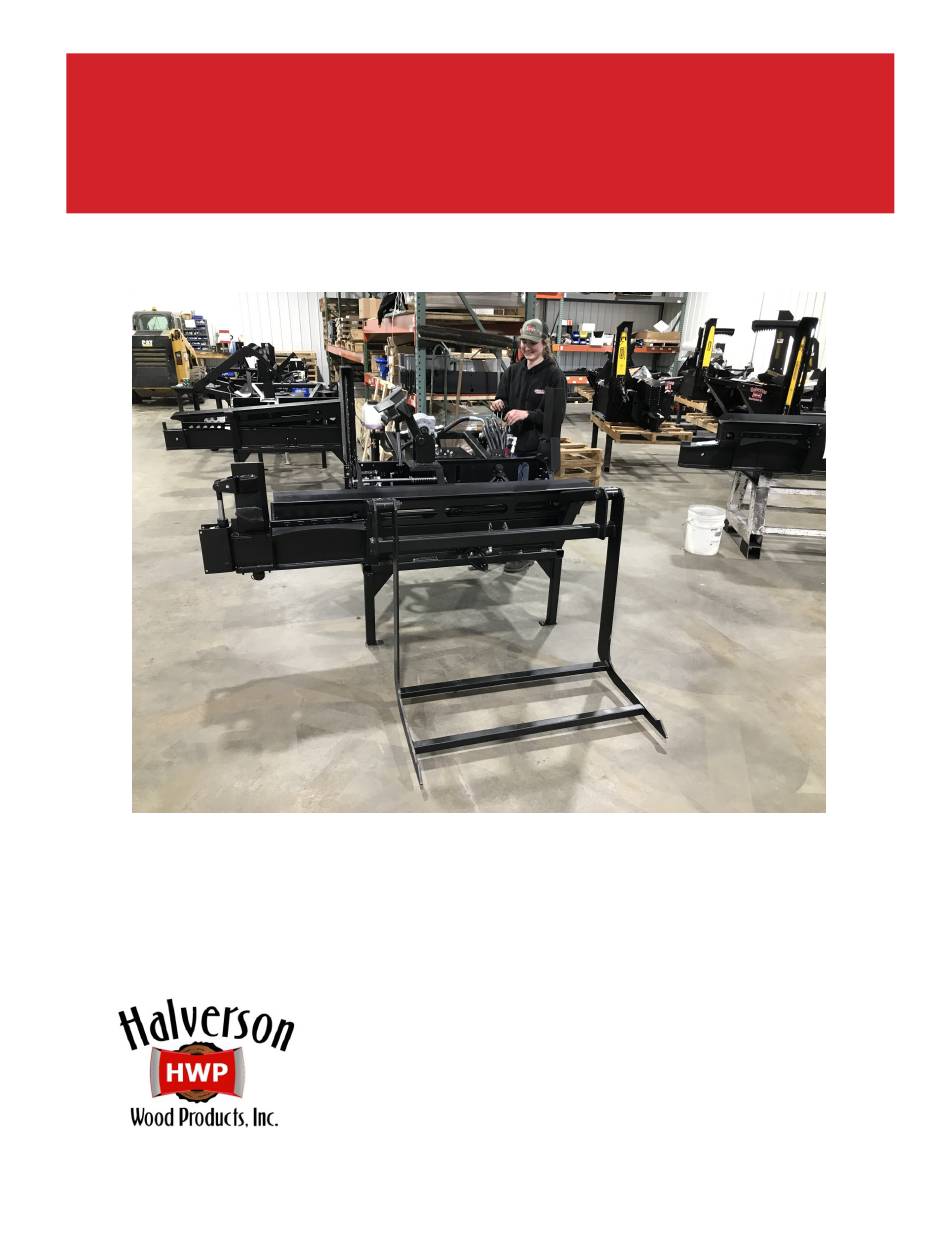

HWP-100-3P Firewood
Processor
205 College Street
Pine River, MN 56474
218-587-2065
www.HalversonWoodProducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWP-100-3P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Halverson HWP-100-3P

Summary of Contents for Halverson HWP-100-3P

  • Page 1 HWP-100-3P Firewood Processor 205 College Street Pine River, MN 56474 218-587-2065 www.HalversonWoodProducts.com...
  • Page 2 The processor's optional Hydraulic Pump Kit (HPK) supplies hydraulic flow up to 21.2 gallons per minute and is capable of overpowering the HWP-100-3P. It is recommended to operate the HPK at an idle. Motor requirements A minimum of 30 HP is recommended for the optional Hydraulic Pump Kit.
  • Page 3 HWP-100-3P Specifications Length ………………………………………......81” (205 cm) Width .................. 64” (162.5 cm) Height ................62” (157.5 cm) Weight ................1027 lbs. (466 kg) Hydraulic Requirements 13 gallons Universal Trans Hydraulic oil (fill to 3/4 on sight glass) Control System..............Manually operated valves mounted on the processor.
  • Page 4 DIAGRAM OF VALVE BODY www.HalversonWoodProducts.com 218-587-2065...

  • Page 5: General Safety

    DIAGRAM OF HWP-100-3P MAIN PARTS 1. SPLITTING WEDGE 2. CHAIN SAW 3. SAW GUARD 4. GRAB ARM 5. LOG LIFT 6. OIL CONTAINER 7. TABLE 8. SPLITTER TROUGH 9. CONTROL LEVERS GENERAL SAFETY Labels Your HWP Firewood Processor carries prominent labels as reminders for its proper and safe use.
  • Page 6 Keep everyone at least 50 FEET (15 meters) away from machine while in operation. Keep everyone at least 50 FEET (15 meters) away from machine while in operation. Operating this Firewood Processor safely is necessary to prevent or minimize the risk of serious injury or death.
  • Page 7 GENERAL SAFETY, CONTINUED Chain Shot What is chain shot? Chain shot is the high velocity separation and ejection of a piece or pieces of cutting chain from the end of a broken chain in mechanized timber harvesting. Chain shot exposes both machine operators and bystanders to a risk of serious injury or death.

  • Page 8: Installation

    Ensure your tractor's PTO is set to 540 RPM to prevent damage to the HWP-100-3P and/or implement. 1 Slowly back the tractor towards the HWP-100-3P and align the lower lift arm hitch holes with the lug holes on the HWP-100-3P using the tractor's 3-point hydraulic controls.

  • Page 9: Replacing The Chain

    REPLACING THE CHAIN Oregon Saw Chain Part #73EXL068G (3/8' / 0.58” 1.5 mm) STEP ONE: Position the log table in the extended position. This would be all the way to the left. STEP TWO: Hold saw lever forward while bar goes down. STEP THREE: SHUT MACHINE'S MOTOR OFF.

  • Page 10: Operating Sequence

    OPERATING SEQUENCE 1) Place the processor near the log pile with the log loader facing the pile. 2) Push the log lift handle forward to lower the log lift to the ground. 3) With a Cant Hook, roll a log onto the log lift. 4) 4) Pull back on the log lift handle to raise log lift until the log rolls onto the table.

  • Page 11: Warranty

    Specifically excluded are failures of and damage to any vehicle or other piece of equipment, either rubber tired or tracked, upon which the HWP-100-3P is attached and any damage to the HWP-100-3P caused by failure on a vehicle or other piece of equipment upon which the firewood processor is attached.
  • Page 12 Products Inc. firewood processors. In the event that the above warranty fails to correct purchaser’s performance problems caused by defects in workmanship and or materials, purchaser’s exclusive remedy shall be limited to payment by Halverson Wood Products Inc. of actual damages in an amount not to exceed the cost of the HWP-100-3P Firewood Processor.

  • Page 13: Troubleshooting

    The remainder of the original warranty may be transferred to the subsequent owner of the HWP-100TR only by express written consent. Please report the transfer of ownership to Halverson Wood Products Inc. by phone at 218-587-2065 or by email. E-mail: halversonwoodproducts@halversonwp.com...
  • Page 14 Serial #: Date Purchased: www.HalversonWoodProducts.com 218-587-2065...

  • Page 15: Warranty Registration

    I have received the HWP-100-3P Operations/Safety Manual. I have read and understand the HWP-100-3P Operations/Safety Manual. Halverson Wood Products Inc accepts no responsibility for misuse of the HWP-100-3P Firewood Processor. Any modifications to the HWP-100-3P Firewood Processor not performed by authorized service technicians will void warranty.
