Summary of Contents for Carbest 851010

  • Page 1 MPPT-Solar-Laderegler 30A MPPT-Solar Charge Controller 30A 851010 DE – BENUTZERHANDBUCH EN – USER’S INSTRUCTION...
  • Page 2: Table Of Contents

    CARBEST MPPT-Solar-Laderegler 30A | 851010 INHALT GARANTIEBEDINGUNGEN ������������������������������������������������������������������������������ 2 HAUPTKOMPONENTEN ����������������������������������������������������������������������������������� 3 WARNUNG �������������������������������������������������������������������������������������������������������� 3 INSTALLATION �������������������������������������������������������������������������������������������4 – 6 LED-ANZEIGE ���������������������������������������������������������������������������������������������6 – 7 SCHUTZFUNKTION ������������������������������������������������������������������������������������������ 7 LADEPARAMETER �������������������������������������������������������������������������������������������� 8 TECHNISCHE PARAMETER ������������������������������������������������������������������������������ 8 ERHÄLTLICHES ZUBEHÖR ������������������������������������������������������������������������������� 9 ENTSORGUNG �������������������������������������������������������������������������������������������������� 9...
  • Page 3: Hauptkomponenten

    CARBEST MPPT-Solar-Laderegler 30A | 851010 HAUPTKOMPONENTEN • Erhöhen Sie die Ladeeffizienz: Im Vergleich zum herkömmlichen PWM-Regler kann die MPPT- Ladeeffizienz um 10-30 % gesteigert werden. (Umwandlungswirkungsgrad des Reglers >95 %) • Fünf Batterietypen können über den DIP-Schalter ausgewählt werden. GEL-Batterie, Blei-Säure- Batterie, AGM, LiFePO4 und Lithium-Ionen.
  • Page 4: Installation

    CARBEST MPPT-Solar-Laderegler 30A | 851010 INSTALLATION Sicherung Erdung Erdung Batterie-Typ Ladeprioritätstaste Bluetooth-Modul Auswahl Batterie-Typ 1 Batterie-Typ 2 # 851007 1� Aufladen von zwei Akkus 1.1 Es können zwei Gruppen von Batterien gleichzeitig angeschlossen werden. 1.2 Es können Batterien unterschiedlichen Typs (z.B. AGM + LiFePO4) oder unterschiedlicher Spannung (12V/24V) miteinander verbunden werden.
  • Page 5 CARBEST MPPT-Solar-Laderegler 30A | 851010 2� Solarmodul 2.1 Spannung des Solarmoduls: Die Leerlaufspannung des Solarmoduls muss unter 50 V liegen. Eine zu hohe Spannung kann den Regler beschädigen 2.2 Schließen Sie die Sicherung an den Pluspol des Solarmoduls an. Die Spezifikation der Sicherung beträgt das 1,5 bis 2-fache des maximalen Stroms des Solarmoduls...
  • Page 6 CARBEST MPPT-Solar-Laderegler 30A | 851010 9� Priorität des Ladevorgangs 9.1. Die Standardbatterie 1 wird vorrangig geladen. Laden Sie zuerst den Akku 1. Wenn der Akku 1 in die Konstantspannungs-Ladestufe eintritt, wird automatisch zum Laden des Akkus 2 gewechselt. Wenn die Batterie 2 in die Konstantspannungs-Ladestufe eintritt, wechseln Sie wieder zum Laden der Batterie 1.
  • Page 7: Led-Anzeige

    CARBEST MPPT-Solar-Laderegler 30A | 851010 LED-Anzeige Status Batterie Status Batterie AUS: BATTERIE 2 HAT VORRANG AUS: Batterie 1 Priorität EIN: Batterie 1 Priorität EIN: Batterie 2 Priorität Vorrangig Blinkend: Solarmodul hat Blinkend: Solarmodul hat (Grün) Überspannung oder Temperatur des Überspannung oder Temperatur des Reglers ist überhitzt...
  • Page 8: Ladeparameter

    CARBEST MPPT-Solar-Laderegler 30A | 851010 LADEPARAMETER Ladestufe Boost-Ladung Ausgleichsladung Erhaltungsladung Akku-Typ 14.3 V (2h) keine 13.8 V Blei-Säure 14.4 V (2h) 14.6 V 13.5 V 14.7 V (2h) 14.8 V 13.5 V LiFePo4 (12,8 V) 14.4 V (1h) keine 13.8 V Lithium-Ionen (11,1 V) 12.6 V (1h)
  • Page 9: Erhältliches Zubehör

    CARBEST MPPT-Solar-Laderegler 30A | 851010 OPTIONALES ZUBEHÖR Temperatursensor (optional) – 851004 • Erfassen Sie die Temperatur der Batterie, kann der Regler die Temperatur der Ladeparameter genau kom- pensieren. Kompensationswert: -3 mV/2 V/°C • Wenn der Temperatursensor nicht angeschlossen ist, setzt der Regler die Batterietemperatur auf einen festen Wert von 25°C zurück...
  • Page 10: Warranty Conditions

    Reimo Reisemobil-Center GmbH, Boschring 10, 63329 Egelsbach (hereinafter referred to as „Reimo“ or „we“) grants you a warran- ty of 3 years in addition to the statutory warranty rights for products sold under Reimo‘s own brand „Carbest“. The period for calculating the warranty period begins on the invoice date. The territorial scope of our guarantee extends to the terri- tory of the Federal Republic of Germany.
  • Page 11: Main Components

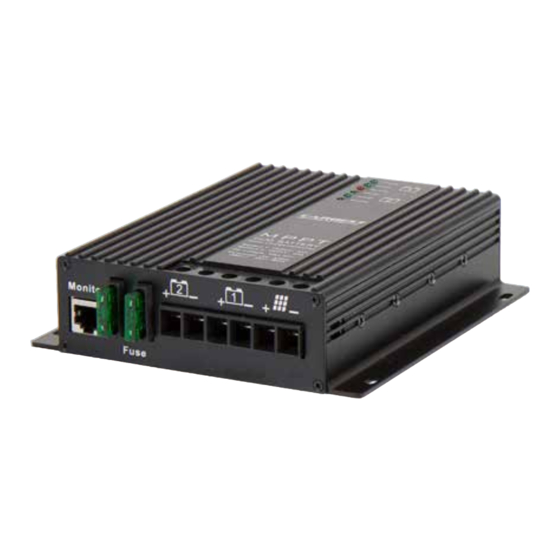

    CARBEST MPPT-Solar Charge Controller 30A | 851010 MAIN COMPONENTS • Increase the charging efficiency: Compared with the traditional PWM controller, the MPPT charg- ing efficiency can be increased by 10-30 %. (Controller conversion efficiency >95 %) • Five types of batteries can be selected through the DIP switch. GEL battery, lead-acid battery, AGM, LiFePO4, and Lithium-ion.
  • Page 12: Installation

    CARBEST MPPT-Solar Charge Controller 30A | 851010 INSTALLATION Bluetooth Module # 851007 1� Dual batterie Charging 1.1 Two groups of batteries can be connected atthe same time. 1.2 Batteries of different type (for example AGM + LiFePO4) or different voltage (12V/24V) can be connected together.
  • Page 13 CARBEST MPPT-Solar Charge Controller 30A | 851010 2� Solar panel 2.1 Solar panel voltage: The open circuit voltage of the solar panel must be less than 50 V. Excessive voltage may damage the controller 2.2 Connect the fuse to the positive pole of the solar panel, the fuse specification is 1.5-2 times of the maximum current of the solar panel 3�...
  • Page 14: Led Indicator

    CARBEST MPPT-Solar Charge Controller 30A | 851010 9� Charging priority 9.1. The default battery 1 is the priority charging battery. First charge the battery 1, when the bat- tery 1 enters the constant voltage charging stage, it will automatically change to the battery 2 charging.
  • Page 15: Protective Function

    CARBEST MPPT-Solar Charge Controller 30A | 851010 LED Sign Status Battery Status Battery OFF: Battery 2 priority OFF: Battery 1 priority ON: Battery 1 priority ON: Battery 2 priority Priority (Green) Flashing: solar panel is over-voltage or Flashing: solar panel is over-voltage or...
  • Page 16: Charging Parameter

    CARBEST MPPT-Solar Charge Controller 30A | 851010 CHARGING PARAMETER Charging stage Boost charge Equalizing charge Float charge Battery type 14.3 V (2h) 13.8 V Lead- acid 14.4 V (2h) 14.6 V 13.5 V 14.7 V (2h) 14.8 V 13.5 V LiFePo4 (12.8 V)
  • Page 17: Availabel Accessories

    CARBEST MPPT-Solar Charge Controller 30A | 851010 AVAILABLE ACCESSORIES Temperature Sensor (optional) – 851004 • Collect the temperature of the battery, the controller can accurately compensate the temperature of the charging parameters. Compensation value: -3 mV/2 V/°C • If the temperature sensor is not connected, the controller defaults the battery temperature to a fixed value of 25 °C...
  • Page 18 REIMO REISEMOBIL-CENTER GMBH 63329 EGELSBACH · BOSCHRING 10 GERMANY · WWW.REIMO.COM MADE IN CHINA · © REIMO 04/2024...
