Summary of Contents for Top RC Hobby ASW28

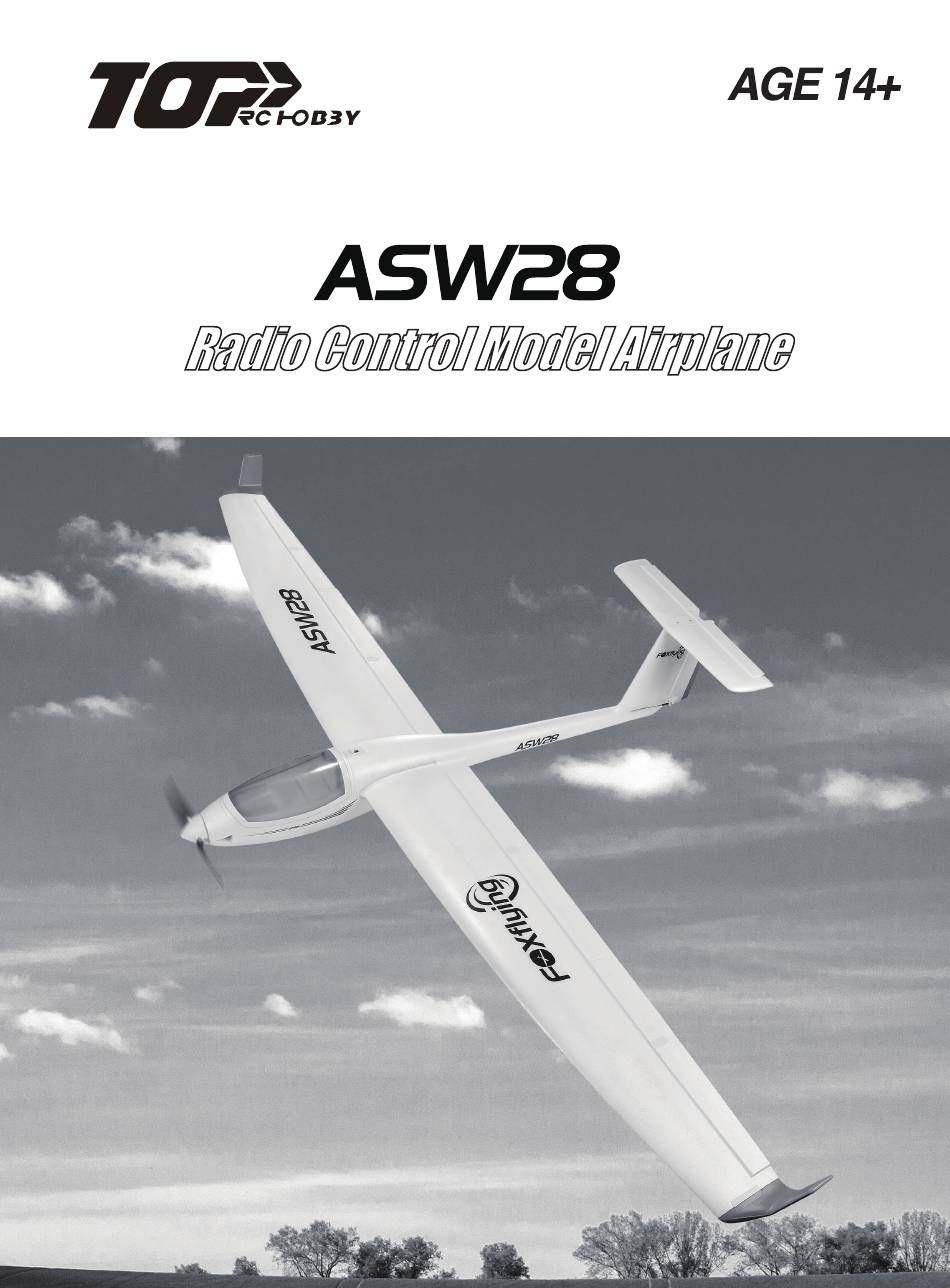

- Page 1 Operation Manual...
-
Page 2: Table Of Contents
Brief introduction....................1 Main specifications....................1 Main configuration....................1 Products con ....................1 Assembl process....................2 Adjustment steps....................3 Safety precautions....................4 Charging method and cautions.................4 Caution and Notice for Li-po battery .............5 Caution and notice for ESC ................5 Trouble shooting.....................6 Spare parts.........................7 Please read this manual carefully and follow the instruction before you use this product;... -
Page 3: Brief Introduction

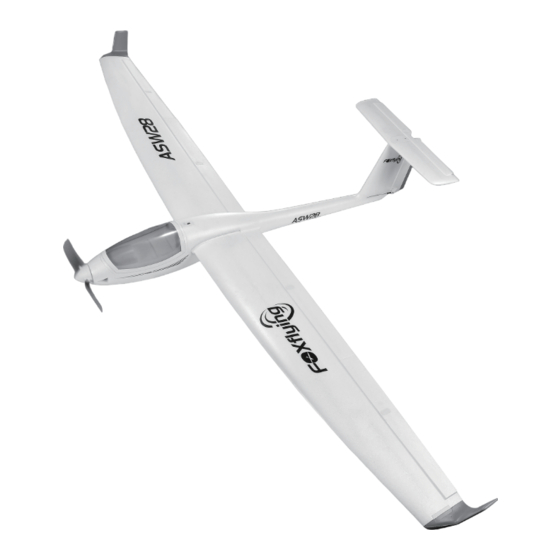

Brief Introduction ★ Thank you for choosing the TOP RC Hobby ★Efficient folded propeller and Functional Flaps. "ASW28" remote control model aircraft, and we hope ★Configured with hobbywing’s 40A ESC, 6pcs 9g that this aircraft will bring you endless fun. -
Page 4: Assembl Process
3. Take out the installed fuselage, wings (including wingtips), wing spar joiners and accessory bag, screw the wing spar joiners onto the mounting hole of the fuselage, attach the main wings to the wing spar joiner of the fuselage. Fix the main wings with 4 screws M4*10MM. 4. ASW28 assembly is completed. - Page 5 1. Turn on the transmitter, and make sure that the throttle is setting at the lowest position, and the other channels of the joystick are at the neutral position 2. Before operation, make sure the battery . Use straps to secure the battery to the battery compartment, connect the battery to the ESC plug, canopy.
-
Page 6: Adjustment Steps
4. Check the position of the center of gravity (CG) as shown in the diagram is 70-78mm back from the leading edge of the wing at the fuselage. Correct CG is very essential for successful flight. 70 ~ 78mm ASW28 5. ASW28 is completed and ready to fly. - Page 7 If you have simulator, we suggest that you can practi e your skill the simulator before you fly this model, which will bring some help for you. Please climb the plane above 50 meters with half throttle when you fly it for your first time, then you will be familiar with the performance of this plane.
- Page 8 Safety Instruction of Li-Po/Ni-MH battery Do not disassemble or reconstruct the battery. 2. Do not short-circuit the battery. 3. Do not use or leave the battery near the fire, stove or heated place (more than 80℃). 4. Do not immerse the battery in water or sea water, do not get it wet. 5.
- Page 9 Aircraft will not respond to -ESC is not armed. -Lower throttle stick and throttle trim to the throttle but responds -Throttle channel is reversed. lowest settings. to other controls. -Reverse throttle channel on transmitter. Extra propeller noise -Damaged spinner, propeller, -Replace damaged parts.
-
Page 10: Trouble Shooting
(the far wind direction) to prevent the aircraft from being unable to return safely due to insufficient power. 配件部分 Spare part for ASW28 TOP09901 TOP09902 TOP09904 Fuselage... - Page 12 www.toprchobby.com Tel: 0086-(0)755-27908315 Fax: 0086-(0)755-27908325 Made in China...
