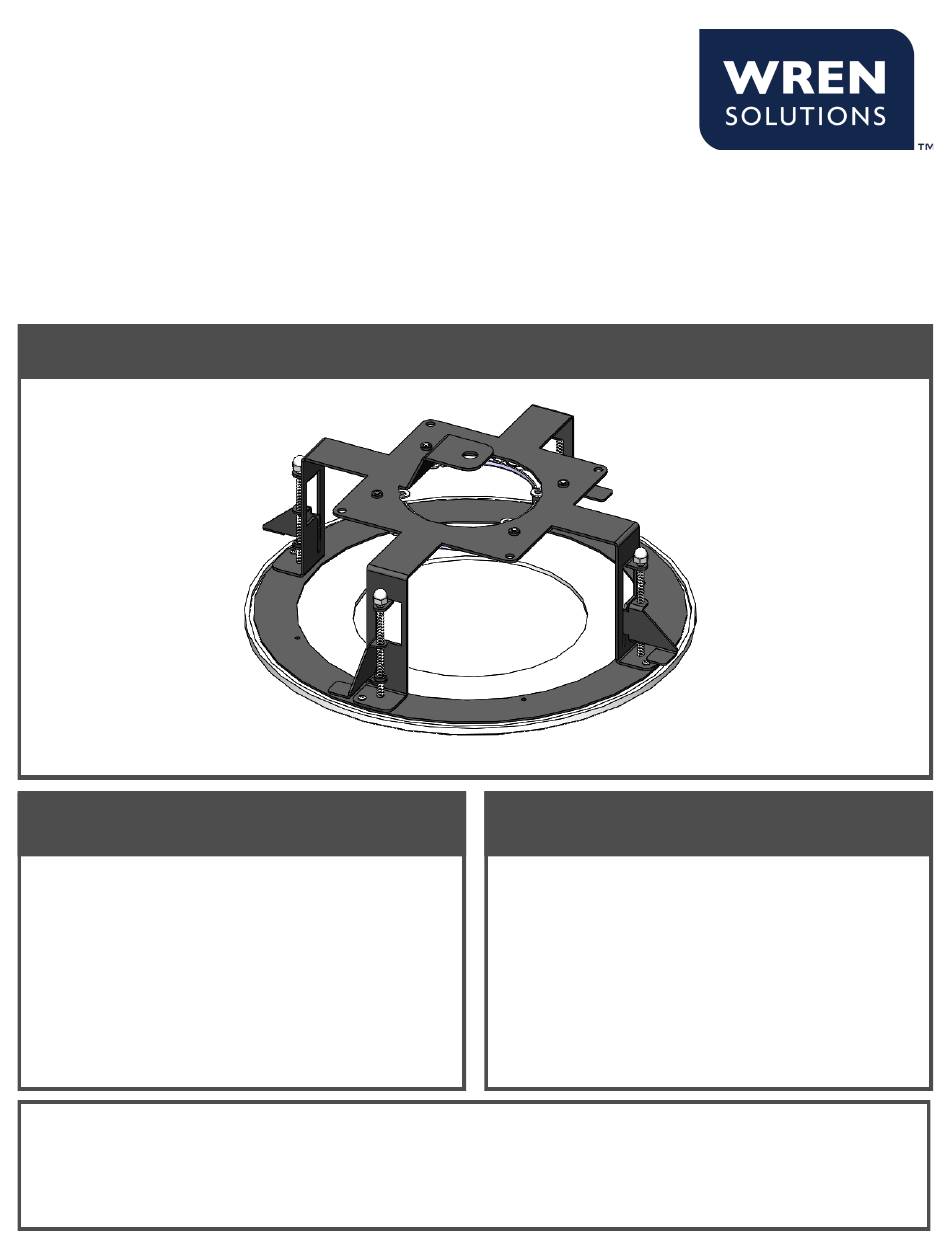

INSTALLATION INSTRUCTIONS
Before attempting to connect or operate this product, please read instructions completely.
Installation and Operation Instructions for the following model:
PRCM8
Recessed Ceiling Mount Bracket for use with i-PRO WV-X8570N / S8530N
INCLUDED HARDWARE
(1) Recessed Ceiling Mount Bracket
•
(1) Trim Ring
•
(2) #8-32 x 5/16", #2 Phillips Double SEMS
•
Screw
(4) M4 x 7mm x .25", #2 Phillips Screw
•
(2) 1/32" O.D. Safety Tethers
•
(1) Cut Template
•
(1) Installation Instructions (This document)
•
Distributed by:
Panasonic i-PRO Sensing Solutions Corporation of America
800 Gessner Rd, Suite 700 Houston, TX 77024
https://www.security.us.panasonic.com/
PRCM8
ADDITIONAL ITEMS
(1) Anchor Bolt (3/8"-16)
•
(2) Hex Nut (3/8"-16)
•
(NOT INCLUDED)
7L784
Rev.A
200821
Advertisement
Table of Contents
Related Manuals for Wren i-PRO PRCM8
Summary of Contents for Wren i-PRO PRCM8
- Page 1 INSTALLATION INSTRUCTIONS Before attempting to connect or operate this product, please read instructions completely. Installation and Operation Instructions for the following model: PRCM8 Recessed Ceiling Mount Bracket for use with i-PRO WV-X8570N / S8530N PRCM8 ADDITIONAL ITEMS INCLUDED HARDWARE (NOT INCLUDED) (1) Recessed Ceiling Mount Bracket •...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to. 4. - Page 3 Installation area for this product Make sure that the installation area is strong enough to hold the total weight of the camera assembly before installation. The installation area shall have 210 mm • {8 9/32 inches} or more space behind the ceiling.
- Page 4 IMPORTANT Prepare safety tethers and anchor bolts according to the material and strength of the area where the product is to be installed. The pull-out strength of the anchor bolt shall be more than 5 times of the total weight of the in- stalled devices (including the camera body, ceiling mount, anchor bolts, and all other parts.) Panasonic i-PRO Sensing Solutions Corporation of America assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documen-...
- Page 5 When directly attaching the attachment plate, align the OPEN mark with the nail of the attachment plate and insert. Connect cables as necessary (refer to camera operation manual) Align camera with camera attachment plate and rotate clockwise 1/4 turn until secured. (See Note) Use the driver bit (supplied with the camera) to loosen the screws and remove the enclosure from the camera main body.
- Page 6 Align trim ring around camera housing Use (2) #8-32 Screws to secure trim ring to enclosure. DO NOT OVER TIGHTEN SCREWS 7L784 Rev.A 200821...
-
Page 7: Overall Dimensions
OVERALL DIMENSIONS WEIGHT: 3.00 LBS {1.36 kg} 7L784 Rev.A 200821...
