[Zj
SENNHEISER

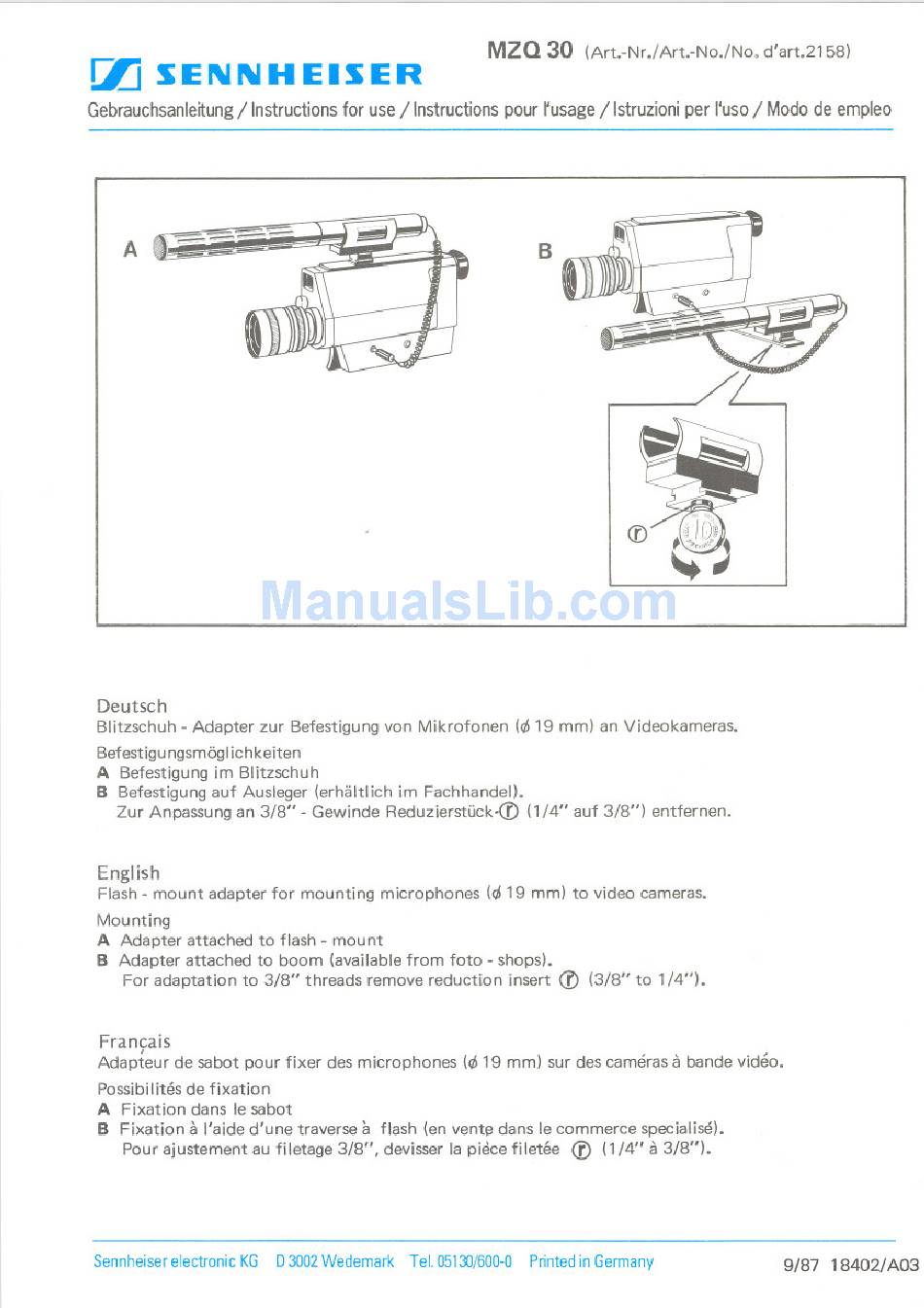

Gebrauchsanleitung
/ Instructions f or use/ Instructions p ourrusage /IstruzioniperI'uso / Mododeempleo
MZQ 30
(Art.-Nr./Art.-No./No.
d'art.215S)
A
~~~~
==~=
B
Deutsch
Blitzschuh
-
Adapter zur Befestigung von Mikrofonen «.619 mm) an Videokameras.
Befestigu ngsmöglichke iten
A Befestigung im Blitzschuh
B Befestigung auf Ausleger (erhältlich im Fachhandel).
Zur Anpassung an 3/S" - Gewinde Reduzierstück.(D (1/4" auf 3/S") entfernen.
English
Flash
-
mount adapter for mounting microphones
«.6
19 mm) to videocameras.
Mounting
A Adapter attached to flash
-
mount
B Adapter attached to boom (available from foto - shops).
For adaptation to 3/S" threads remove reduction insert CO (3/S" to 1/4").
Francais
Adapteur de sabot pour fixer des microphones
«.6
19 mm) sur des camerasa bande video.
Possibilites de fixation
A Fixation dans le sabot
B Fixation
a
I'aide
d'une
traverse
11 flash
(en vente
dans
le commerce
specialise).
Pour ajustement au filetage 3/S", devisser la piece fi letee CD (1/4" a 3/S").
Sennheiser
electronic KG D 3002Wedemark Tel. 05130/600-0 Printedin Germany
9/87 1S402/ A03
