Sennheiser MKH 8000 Series Specification Sheet

MZD 8000
Mikrophone |

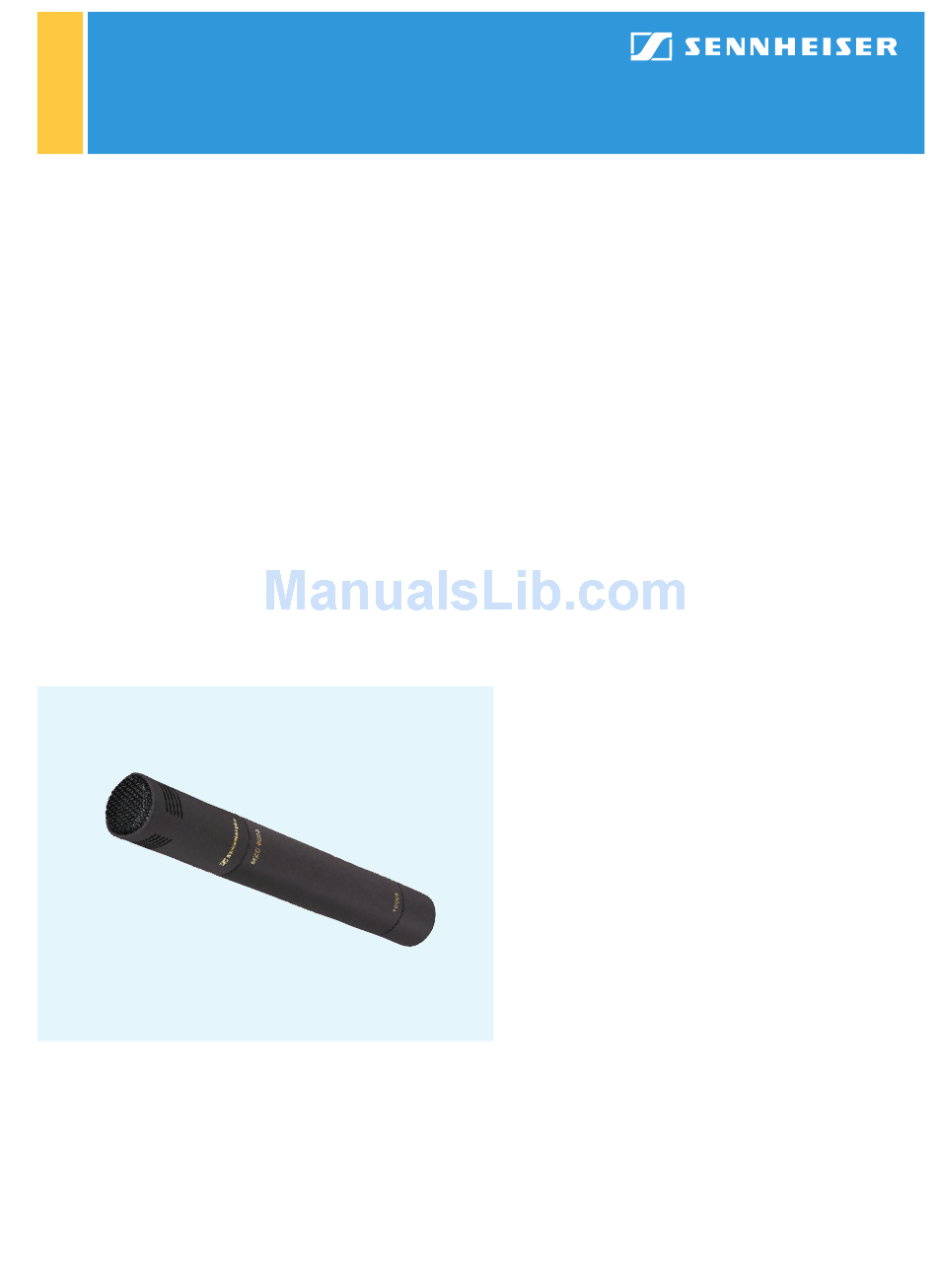

General Description
The fantastic sound of the MKH 8000 series can now be converted to
digital directly at the microphone head, ensuring a natural sound without
any loss of quality. The compact digital module is simply screwed onto
the microphone head in place of the XLR module, turning the audio signal
of the MKH 8020 (omni-directional), MKH 8040 (cardioid) and MKH 8050
(super-cardioid) into a digital one. The new digital module ensures that
the warm, natural, yet fantastically clear and powerful sound of the MKH
8000 series is maintained in full quality along the entire signal chain. In
contrast to conventional digitization, which uses a separate analogue/
digital converter at some stage in the chain, the Sennheiser MZD 8000
digital module eliminates cable losses and, most importantly, features a
converter and surrounding circuitry that have been optimally matched to
the microphone.
Like all signal-carrying components in the 8000 series, the module is desi-
gned with two channels and converts the microphone signal according to
the AES 42 standard. The microphones can be synchronized by any digital
system. In addition to the A/D converter (24-bit, sampling rate up to 192
kHz), the digital module contains a highly integrated DSP unit. With the
aid of dedicated PC control software and an AES 42 interface, the micro-
phone allows settings such as the low-cut filter, attenuation and limiter
to be remote-controlled. The required phantom power for microphones is
provided by an AES 42 interface, e.g. Neumann's DMI.
Features
2-channel 24 Bit-AD-converter, dynamic range 115 dB
j
Studio grade preamp and converter
j
Sampling rate 44,1 kHz, 48kHz, 88,2 kHz, 96 kHz, 176,4kHz and 192 kHz
j
Remote controlled DSP functions like low cut filter, attenuation and limiter
j
Digital output in AES 42 format
j
External synchronisation via AES 42, Mode 2
j
Colour: Nextel® black, non reflecting, matching to MKH 8000 series
j
Delivery Includes: Digital module MZD 8000
j
User manual
MKH 8000 Series
Technical Data
Frequency response ................................. from 10 kHz to 80 kHz
A/D conversion ......................................... 24 Bit/44,1 to 192 kHz
Delta-Sigma Sensitivity (free field,
no load, 94 dB SPL) with MKH 8020 ................................ -31 dBFS
Total harmonic distortion at -1 dBFS ........................ < -100 dBFS
Inherent self-noise (mono mode, 40 ohms) ........... < -120 dBFS
Input amplitude for -0.5 dBFS
at 0 dB attenuation .......................... 1.1 V
Group delay ......................................................... 22/19/15 samples
..................................................................single/double/quad speed
Frequency accuracy
in asynchronous operation .......................................... +/- 25 ppm
Pull-in range in
synchronous operation ...................................... min. +/- 100 ppm
Power supply ....................... AES 42-phantom power (10 V DPP)
Power consumption ..........................................................< 160 mA
Operating voltage range ..................................from 7 V to 10,5 V
Operating temperature range ...................from -10 °C to +60 °C
Diameter ................................................................................... 19 mm
Length ....................................................................................... 96 mm
Weight ............................................................................approx. 65 g
Recommended Accessories
Extension tube 15 cm (5.91") MZE 8015
j
Extension tube 30 cm (11.84") MZE 8060
j
Extension tube 60 cm (23.62") MZE 8060
j
Extension tube 120 cm (47.24") MZE 8120 Cat. No. 502317
j
Bar connector mono MZGE 8000
j
Bar connector stereo MZGE 8002
j
Vertical bar 30 cm (11.84") MZEF 8030
j
Vertical bar 60 cm (23.62") MZEF 8060
j
Vertical bar 120 cm (47.24") MZEF 8120
j
Table stand MZT 8000
j
Table stand MZT 8001
j
Shock mount MZS 8000
j
Mini clip MZQ 8001
j
Microphone clip MZQ 8000
j
Swivel joint MZG 8000
j
Remote cable 3 m (3.28 ft)MZL 8003
j
Remote cable 10 m (10.94 ft) MZL 8010
j
Windshield MZW 8000
j
Ceiling mount MZH 8000
j
Floor stand MZFS 8000
j
Digital module MZD 8000
j
Cat. No. 502097
(997 Hz sine wave)
rms
Cat. No. 502315
Cat. No. 502433
Cat. No. 502316
Cat. No. 502324
Cat. No. 502325
Cat. No. 502434
Cat. No. 502318
Cat. No. 502319
Cat. No. 502331
Cat. No. 502332
Cat. No. 502330
Cat. No. 502329
Cat. No. 502328
Cat. No. 502323
Cat. No. 502326
Cat. No. 502327
Cat. No. 502333
Cat. No. 502435
Cat. No. 502322
Cat. No. 502097
