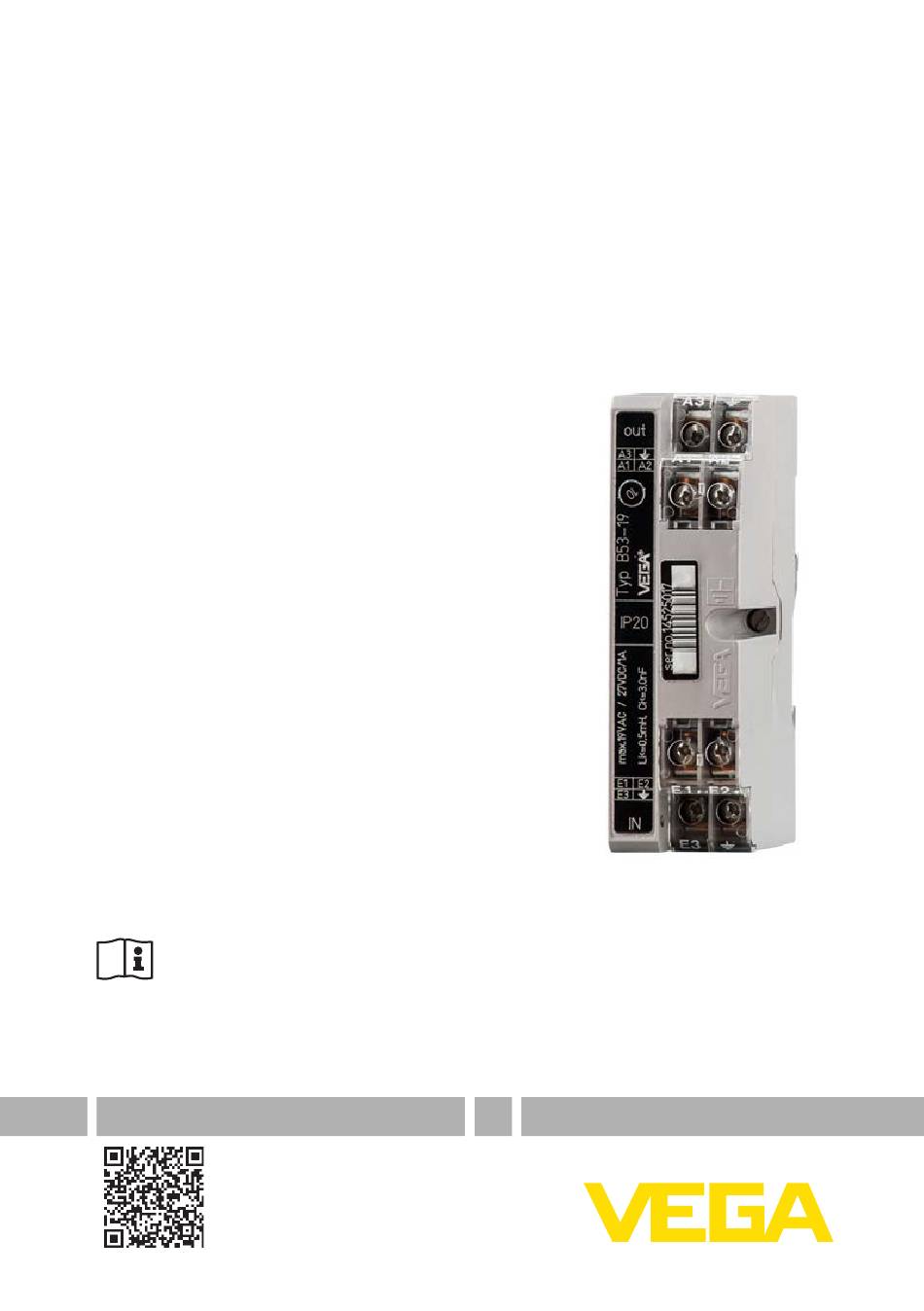

- Page 1 Operating Instructions Overvoltage protection B 53-19 For the signal cable of conductive probes Document ID: 40490...
-
Page 2: Table Of Contents
Conformity ........................15 Environment management system ................. 15 Supplement ..........................16 Technical data ........................ 16 Dimensions B53-19 ......................17 Industrial property rights ....................19 Trademark ........................19 Editing status: 2024-04-22 B 53-19 • For the signal cable of conductive probes... -
Page 3: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 4: For Your Safety
Arbitrary conversions or modifications are explicitly forbidden. For safety reasons, only the accessory specified by us must be used. To avoid any danger, the safety approval markings and safety tips on the device must also be observed. B 53-19 • For the signal cable of conductive probes... -
Page 5: Installation And Operation In The Usa And Canada
Installations in the US shall comply with the relevant requirements of the National Electrical Code (NEC - NFPA 70) (USA). Installations in Canada shall comply with the relevant requirements of the Canadian Electrical Code (CEC Part I) (Canada). B 53-19 • For the signal cable of conductive probes... -
Page 6: Product Description
They are designed for mounting on carrier rail according to EN 50 022/EN 50 035 in the switching cabinet or in a metal or plastic housing close to the sensor. B 53-19 • For the signal cable of conductive probes... -
Page 7: Packaging, Transport And Storage
Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Technical data - temperature Ambient conditions" • Relative moisture 20 … 85 % B 53-19 • For the signal cable of conductive probes... -
Page 8: Mounting Instructions
Fig. 2: Mounting on carrier rail according to EN 50 022 (DIN rail) 35 x 7.5 mm Carrier rail Fig. 3: Mounting on carrier rail according to EN 50 035 (C-rail) 35 x 7.5 mm Carrier rail Installation procedure Proceed as follows: 1. Loosen fixing screw B 53-19 • For the signal cable of conductive probes... -
Page 9: Mounting In Housing
The overvoltage arrester is optionally available in a plastic or alu- minium housing. Make sure when mounting that the cable glands point downward. Thus avoids water ingress. Fig. 5: Mounting in Aluminium housing Overvoltage protection Pressure compensation Ground terminal B 53-19 • For the signal cable of conductive probes... - Page 10 This ground terminal must be connected (low impedance) with the potential equalization line (PA). The wire cross-section must be at least 2.5 mm , the cable must be as short as possible. B 53-19 • For the signal cable of conductive probes...
-
Page 11: Connecting To Power Supply
6. Tighten the compression nuts of the cable entry glands. The seal ring must completely encircle the cable 7. Tighten screws of the housing cover The electrical connection is finished. Wiring plan Circuit diagram Fig. 7: Circuit diagram B53-19 Overvoltage protection Potential equalisation B 53-19 • For the signal cable of conductive probes... - Page 12 Li <= 0,5 mH / Ci <= 3nF min. max. 1 2 3 Fig. 9: Wiring plan B53-19 with conductive three-rod probe Measuring probe Overvoltage protection Controller Voltage supply Potential equalisation B 53-19 • For the signal cable of conductive probes...
-
Page 13: Diagnostics And Servicing
24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock. -
Page 14: Dismount
If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. B 53-19 • For the signal cable of conductive probes... -
Page 15: Certificates And Approvals
DIN EN ISO 14001. Help us to meet these requirements and observe the environmental instructions in the chapters "Packaging, transport and storage", "Dis- posal" of this instructions manual. B 53-19 • For the signal cable of conductive probes... -
Page 16: Supplement
Storage and transport temperature -40 … +70 °C (-40 … +158 °F) Electrical protective measures Protection rating Ʋ unassembled IP20 Ʋ In Aluminium or plastic housing IP65 Reference temperature 25 °C (77 °F). B 53-19 • For the signal cable of conductive probes... -
Page 17: Dimensions B53-19
9 Supplement Dimensions B53-19 Overvoltage protection 52 mm 25 mm (2.05") (0.98") Fig. 10: Dimensions B53-19 B 53-19 • For the signal cable of conductive probes... - Page 18 M 20 x 1,5 (1.85") 77 mm 160 mm (3.03") (6.30") 130 mm (5.12") 72 mm 116 mm (2.84") (4.57") M 20 x 1,5 Fig. 11: Dimensions B53-19 Plastic housing Aluminium housing B 53-19 • For the signal cable of conductive probes...
-
Page 19: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 20 Notes B 53-19 • For the signal cable of conductive probes...
- Page 21 Notes B 53-19 • For the signal cable of conductive probes...
- Page 22 Notes B 53-19 • For the signal cable of conductive probes...
- Page 23 Notes B 53-19 • For the signal cable of conductive probes...
- Page 24 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2024 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
