MCE Esprit 250C Pocket Manual

Pocket Guide
Esprit 250C Connection and Setup
Note: Swing Panel Controller — If necessary, refer to Section 5 of
the controller installation manual or Section 4 of the group supervi-
sor manual for instructions on changing the Communication Port
settings. For the Esprit 250C, the COM port Device option must be
set to CRTMK.
Note: PTC/PHC Controller — For the Esprit 250C, the Color CRT
option must be set to No.
Connection

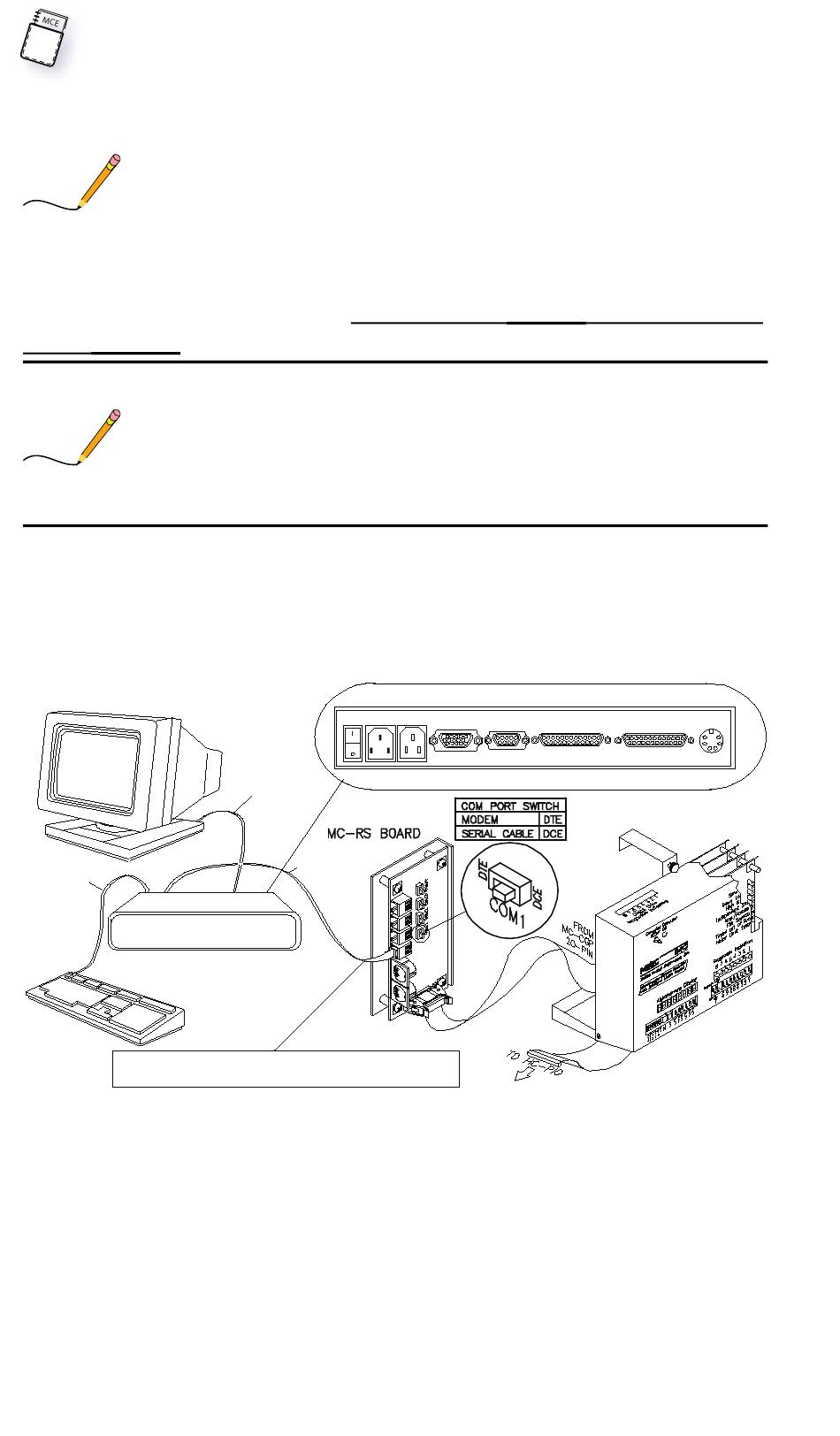

Refer to the following illustration.
To K.B.
Esprit 250C Emulator
* PTC or PHC product: Serial 1 connects to MC-PA board.
* All others products: Serial 1 connects to MC-RS board.
• Connect the monitor cable to Monitor on the emulator.
• Connect the keyboard cable to KB on the emulator.
• Connect the controller interface board (MC-RS or MC-PA) to
emulator Serial 1 using a C-CRT/MD/PA-x cable (x=length).
• If using a printer, connect it to the emulator Parallel port.
• Connect AC power.
1-12 IMC Pocket Guide 42-02-GUIDE R6
IMC Pocket Reference
Switch AC In AC Out
To Monitor
To Serial 1
Rear of Emulator
Monitor Serial 2 Parallel Serial 1 K.B.
