Sennheiser ME 67 Technical Data

ME 67
Microphones |

General Description

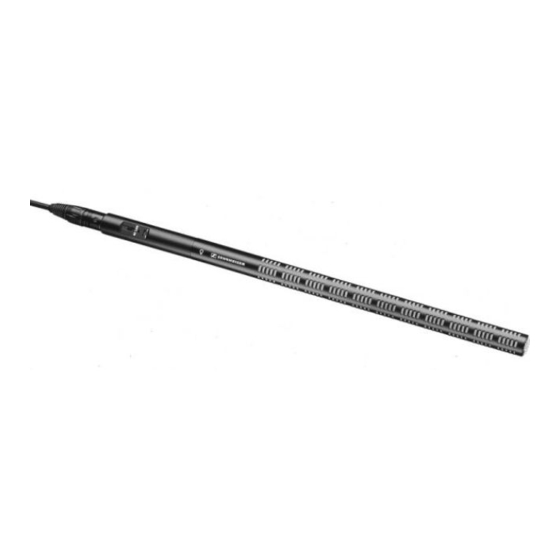

The ME 67 is a long gun microphone head designed for use with the K6
and K6P powering modules. A highly directional microphone, it can be
used where the microphone must be placed at a distance from the sound
source. Matt black, anodised, scratch-resistant finish.
Pictured with K6 powering module and cable (available separately)

Features

Lobar pick-up pattern
Highly directional
Very low inherent self-noise
High sensitivity factor
Wide frequency response
Delivery includes: 1 ME 67

Recommended Accessories

MZW 67 pro foam windshield
Back-Electret Microphone Head Suitable
for K6 and K6P Powering Modules
Cat. No. 003832
Technical Data
Pick-up pattern ....................................................... lobar (long gun)
Frequency response .................................40 – 20,000 Hz ± 2.5 dB
Sensitivity
(free field, no load) (1 kHz) ............................ 50 mV/Pa ± 2.5 dB
Nominal impedance ............................................... 200 Ω (with K6)
Min. terminating impedance ...................................1 kΩ (with K6)
Equivalent noise level
A-weighted (DIN IEC 651)........................................................ 10 dB
CCIR-weighted (CCIR 468-3).................................................... 21 dB
Max. SPL (1 kHz)...............................................126 dB (THD = 1 %)
Dimensions .............................................................Ø 22.5 x 343 mm
Weight ......................................................................................... 100 g

Profile

Lobar (long gun) microphone head suitable for K6 and K6P
powering modules. Frequency response 50 Hz – 20,000 Hz
± 2.5 dB, sensitivity (free field, no load) 50 mV/Pa ± 2.5 dB
at 1 kHz, nominal impedance 200 Ω (with K6), min. termi-
nating impedance 1 kΩ (with K6), equivalent noise level
A-weighted 10 dB, CCIR-weighted 21 dB, max. SPL 126 dB
at 1 kHz (THD = 1 %), dimensions Ø 22.5 x 343 mm, weight
100 g.
Cat. No. 003285
