Page 1 Server SIMATIC IPC RS-828A Preface Product description SIMATIC Safety instructions Installing and connecting the device Industrial PC Server SIMATIC IPC RS-828A Commissioning the device Operating the device Operating Instructions Expanding and assigning parameters to the device Device maintenance and repair...
Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 3: Preface
Purpose of the operating instructions These operating instructions contain all the information you need for the installation, electrical connection, placing in operation and expansion of the SIMATIC IPC RS-828A and to maintain and repair the device. They are intended for the following qualified specialist personnel: •...
Page 4 Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.
Page 5: Table Of Contents
Notes on device and system extensions ................35 Installing and connecting the device ....................36 Preparing for mounting ...................... 36 3.1.1 Scope of delivery ....................... 36 3.1.2 Checking the delivery package ................... 37 3.1.3 Device identification data ....................38 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 6 Signing out from the BMC web server ................70 5.4.3.3 5.4.4 Local monitoring with redfish .................... 71 5.4.4.1 Activating Redfish in the BIOS setup ................... 71 Trusted Platform Module (TPM) ..................72 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 7 Installing operating system, software and drivers ............. 135 7.4.1 Restoring or installing the operating system ..............135 7.4.2 Installing software and drivers..................135 Configuring firmware/BIOS ....................135 Recycling and disposal ..................... 135 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 8 ........................ 152 10.6 FCC (USA) ........................152 10.7 ICES Compliance (Canada) ....................152 10.8 Australia / New Zealand (RCM) ..................152 10.9 Korea (KC) ........................153 10.10 Taiwan (BSMI) ......................... 153 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 9 Markings and symbols ........................179 Overview ......................... 179 Safety ..........................179 Operator controls ......................179 Certificates, approvals and markings ................180 Interfaces ........................180 List of abbreviations .......................... 182 Abbreviations ........................182 Index ..............................184 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 10: Product Description
Boot modes com/cs/ww/en/view/109824908) Windows® operating Information on: • Online at: system Microsoft® Windows® Server • Commissioning the operating 2022 system (https://support.industry.siemens. • Restoring the operating system com/cs/ww/en/view/109817286) • Configuration of the operating system Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 11: Product Highlights

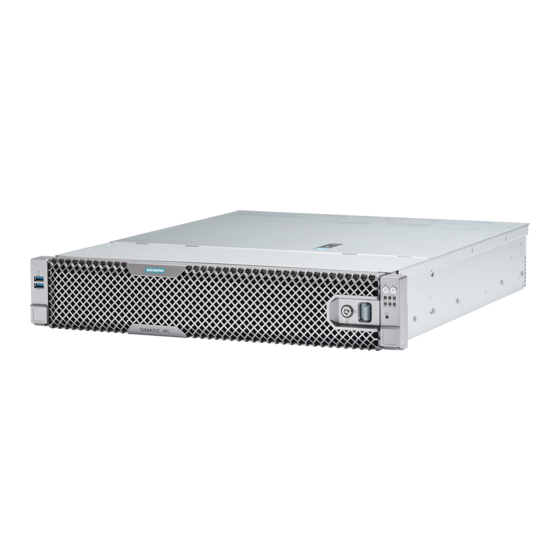

1.2 Product highlights Product highlights The SIMATIC IPC RS-828A is a high-performance industrial PC in the 19” installation format (2 U). It brings the high-end performance from the data center into the industrial environment, directly in the production line or in large machines.
Page 12 • Disabling of the interfaces and buttons on the front panel for protection against unauthorized access with BMC (Baseboard Management Controller) • Housing alarm function for protection against the unexpected opening of the device cover during operation (Intrusion Detection) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 13 • GB LAN with teaming ability (2 x 10 Gbps Ethernet port + 1 x Ethernet port for BMC management) • Service-friendly device design (modifications, service) e.g. filter change, drive exchange or front fan exchange without tools • Flexible usage options with telescopic rails Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 14: Scope Of Application
Lock as protection against unauthorized access ⑤ Release slide ⑥ System status displays (Page 20) ⑦ Operator controls (Page 18) Sum total of the currents on the USB interfaces of the device ≤ 3 A Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 15: Drive Cage With Removable Tray
Rear of the device ① Power supply connections (Page 17) ② Interfaces (Page 16) ③ GPU Riser Cages for expansion cards (internal) (Page 78) ④ PCIe Riser Cages for expansion cards (internal) (Page 87) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 16: Interfaces And Connections
Sum total of the currents at the USB interfaces of the device ≤ 3 A See also Hardware accessories (Page 27) Technical specifications of graphic (Page 143) Switching off the device (Page 47) Expansion cards (Page 76) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 17: Power Supply Connections
Product description 1.4 External design of the device 1.4.4.2 Power supply connections Sockets for 2600 W power supply unit (2 modules, redundant) ① Mounting bracket ② Socket with bolt closure Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 18: Operator Controls
The reset button is for the emergency when the device can no longer be operated. More information is available under "Switching on the device (Page 46)" and "Switching off the device (Page 47)". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 19 More information is available under "Status and error code of the device (Page 165)" ③ Localization button: The localization button switches the ID LED on and off. During maintenance work, the localization button is used to locate the device in the control cabinet. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 20: Status Displays
Data traffic GREEN Connection ④ TEMP Temperature status OFF No error RED flashing Notice: An operating temperature has reached a temperature thresh- old value. Warning: An operating temperature has exceeded a critical value. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 21 More information is available under "Status and error code of the device (Page 165)" ③ Device localization Not activated BLUE Localization of the device requested. More information is available under "Monitoring of the device (Page 61)" Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 22: Status Display Of The Ethernet Interface
Ethernet X3P1 GREEN Connection established GREEN flashing Data traffic ⑥ LED 6 Data transfer rate 100 Mbps / 10 Mbps Ethernet X3P1 YELLOW 1 Gbps GREEN 10 Gbps See also Interfaces (Page 16) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 23: Status Display Of Redundant Power Supply
Caution, module is still in operation: (slow) • Temperature too high • Too much power • Speed of the fan too low ORANGE flashing Warning, module shutting down, (quick) critical error: • Critical temperature • Fan failed Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 24: Status Displays On Removable Tray For Drives
Information on the position of the individual drives is available under "Drive cage with removable tray (Page 15)". See also Drives in drive cage with removable tray (Page 96) Drives (internal) on the motherboard (Page 99) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 25: Internal Construction Of The Device
GPU Riser Cages: • 4 x slot for single slot expansion card • 2 x slot for dual slot expansion card ③ GPU rail: Bracket for expansion cards in the GPU Riser Cage Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 26 Alarm function against unauthorized opening of the device cover ⑩ 24 x slot for memory modules ⑪ 2 x processor, with heat sink ⑫ Backplane for the 2.5" drive in the removable tray Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 27: Accessories And Spare Parts
Accessories and spare parts 1.6.1 Hardware accessories Accessories from Siemens are available for your device that are not included in the scope of delivery. Obtaining accessories from the SIEMENS Industry Mall 1. On the Internet, go to Industry Mall (https://mall.industry.siemens.com).
Page 28: Safety Instructions
• Disconnect the device from the power supply in good time when a thunderstorm is approaching. • Do not touch power cables and data transmission cables during a thunderstorm. • Keep sufficient distance from electric cables, distributors, systems, etc. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 29 The device contains electronic components that may be destroyed by electrostatic charges. This can result in malfunctions and damage to the machine or plant. Take corresponding precautionary measures before you open the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 30: Note On Transport And Storage
• Do not expose the device to direct heat radiation from a heating device. • If condensation develops, wait approximately 12 hours or until the device is completely dry before switching it on. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 31: Notes On Mounting
Touching these areas or components can cause death or serious bodily injury. • Always disconnect the cabinet from the mains before opening it. • Ensure that the power to the control cabinet cannot be turned on accidentally. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 32: Notes On Ambient And Environmental Conditions
• Always maintain a minimum clearance of 50 mm to the area of the ventilation slots and do not cover the ventilation slots of the enclosure. • Ensure that there is a distance of at least 50 cm at the back of the device, depending on wiring. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 33 • Avoid high-frequency radiation. • Remove radiation sources from the environment of the device. • Switch off radiating devices. • Reduce the radio output of radiating devices. • Read the information on electromagnetic compatibility. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 34: Information On I/O Devices
• The computer in question must be turned off and the power supply connector must be plugged in. • During the measurement, all cables from the plant to the computer should be connected. • All other components in the plant must be active. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 35: Notes On Device And System Extensions
• UL approval of the device only applies when the UL-approved components are used according to their "Conditions of Acceptability". • We are not liable for functional limitations caused by the use of third-party devices or components. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 36: Installing And Connecting The Device
Important instructions and manuals for operating the device (Page 10) or Technical specifications of the operating systems (Page 145). Printed documents • Quick Install Guide SIMATIC IPC RS-828A • Product Information "Important notes on your device" Server SIMATIC IPC RS-828A...
Page 37: Checking The Delivery Package
If the contents of the package are incomplete, damaged or do not correspond to your order, you can use the After Sales Information System (ASIS) (http://siemens.com/asis) to provide feedback on product deliveries and repairs. Complete the online form for product delivery (quality control notification) under the heading "Product delivery: Feedback on quality check and repairs".
Page 38: Device Identification Data
The following illustrations are examples. The data of your device may differ from the data in these examples. Nameplate The nameplate is located on the housing of the device. Example: SIMATIC IPC RS-828A nameplate (the information on the nameplate is device-specific) ① QR code for information about the device ②...
Page 39 The COA labels are only available on devices shipped with an installed Microsoft® Windows® operating system. Example: COA label for the operating system Microsoft® Windows® Server 2022 Standard See also Important instructions and manuals for operating the device (Page 10) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 40: Mounting The Device
Touching these areas or components can cause death or serious bodily injury. • Always disconnect the cabinet from the mains before opening it. • Ensure that the power to the control cabinet cannot be turned on accidentally. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 41 Detailed information on the position of the mushroom head rivets for angle brackets or telescopic rails is available under "Technical specifications of the telescopic rails (Page 144)". See also Hardware accessories (Page 27) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 42: Connecting The Device
The power supply cord and the plug connector must bear the prescribed markings. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 43: Connecting A Redundant Power Supply (Ac)
"Power supply connections (Page 17)". 2. Connect the power supply cord to the sockets. Note Secure the cables with a strain relief to prevent an accidental disconnection of the power supply cord from the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 44: Connecting I/O Devices
Control level. You can find information on this under SIMATIC NET (http://w3.siemens.com/mcms/automation/en/industrial- communications/Pages/Default.aspx). The software package and the documentation are not included in the scope of delivery More information You can find more information on the Internet at: Technical support (https://support.industry.siemens.com) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 45: Securing The Cables
A strain relief is used to prevent accidental loosening of the cables from the device. Note Secure the cables with a strain relief to prevent accidental disconnection of the cables from the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 46: Commissioning The Device
You can find information on this in the detailed firmware/BIOS description, see "Important instructions and manuals for operating the device (Page 10)". The exact minimum required downtime of the mains voltage is dependent on the device equipment and the application. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 47: Switching Off The Device
• Shut down the operating system and unplug the power plug from the rear of the device, see "Power supply connections (Page 17)". Result The device is switched off and fully disconnected from the mains voltage. No trickle current is flowing. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 48 • Press the reset button. Information on the location of the reset button is available under "Operator controls (Page 18)". Result The device carries out a restart. When the system is restarted, recovery process is carried out. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 49: Operating The Device
2. Push the front cover on the right side towards the device until the release slide snaps into place. 3. If applicable, lock the front cover with the appropriate key. See also Notes on device and system extensions (Page 35) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 50: Drive Configurations
If you would like to subsequently operate your device as the hardware RAID system, you must also retroactively install a hardware RAID adapter card and then configure the hardware RAID system. More information about this is available under "Setting up the hardware RAID system later (Page 103)" Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 51: Hot-Spare Drive In Raid1 Or Raid5 Systems
If a defective drive is detected in the RAID1 or RAID5 system, the hot-spare drive is automatically integrated instead of the defective drive during operation and assumes its function. Data synchronization to the hot-spare drive starts automatically. See also Data synchronization in the RAID system (Page 53) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 52: Operating Raid Systems
5.3.2 RAID1 system: Installation options for drives The 2 hard disks required for a RAID1 system can be installed on SIMATIC IPC RS-828A at the following locations: • Drives in the drive cage with removable tray at the device front, see "Drives in drive cage with removable tray (Page 96)"...
Page 53: Data Synchronization In The Raid System
In addition, system performance may be limited in the case of a manually started maintenance operation until completion of the maintenance phase. See also Changing the drive in the removable tray (SATA, U.3 NVMe) (Page 96) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 54: Managing The Raid System
1. Start the RAID software via the icon "Launch LSA" on your desktop. The default browser is opened. 2. Click the button of the hardware RAID controller that you want to edit. 3. Log in at the web server: Username: Administrator Password: Windows password Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 55 Operating the device 5.3 Operating RAID systems After successful login, the status of the RAID system is displayed. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 56: Checking The Status Of The Raid System
The LSA software has detected an unconfigured drive. • Integrate the drive in a RAID system • Acknowledge the system alarm with the button "Make Unconfigured Good" Optimal The controllers and setup RAID systems do not show any errors. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 57 In extreme cases, input from the keyboard or mouse may be delayed for a brief period. This could result in operator errors on the machine or plant. Do not operate any safety-critical functions while synchronizing a drive. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 58: Displaying A Defective Drive Of A Raid System
To return to the safe RAID state after a failure, you have to replace a failed drive with a new drive. You can find information on how to replace a defective drive in the RAID system under "Changing the drive in the removable tray (SATA, U.3 NVMe) (Page 96)". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 59: Replacing The Drive In The Raid System When Switched Off
During the rebuilding process, the right LED on the removable tray flashes red, see "Status displays on removable tray for drives (Page 24)". The LED goes out after the rebuilding process is complete. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 60 (Page 24)". The LED goes out after the rebuilding process is complete. For more information, refer to the documentation on the hardware RAID controller on the enclosed data storage medium under "DocuAndDrivers\Drivers\Broadcom\LSA". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 61: Monitoring Of The Device
The BMC enables remote monitoring of your device, even if the operating system does not respond, such as for example: • System diagnostics: Problem analysis, without being physically at the location. • Restart: Device restart via remote access Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 62 Via Redfish, it is possible to control the BMC directly from the local site without having to rely on external network connections. Redfish enables access to all functions of the BMC named above. You can find more information on setting up Redfish under "Local monitoring with redfish (Page 71)". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 63: Configuring Bmc In The Bios Setup
In the BMC Network Configuration, specify the IP addresses for the BMC interfaces. This usually includes the assignment of an IP address, a subnet mask and a standard gateway. 4. Confirm your entries and save the configuration. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 64: Remote Monitoring With Bmc Web Server
The BMC web server offers a user-friendly interface to enable convenient management of the server. It is recommended to log off after each session to ensure the security of the server. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 65: Bmc Web Interface
With these control elements, you have quick control of the system, especially during maintenance or diagnostic work. Information This section shows a summary of important information via the system, for example: • The version of the Baseboard Management Controllers (BMC) • The BIOS version Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 66 "System Inventory" is a practical function to gain a comprehensive overview of the hardware configuration of your system and which facilitates management and troubleshooting. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 67 These sensors can supply information on temperatures, voltages, fan speeds and other important operating parameters. The sensor overview offers an important function for monitoring the health and performance of the device and can help you detect operating problems early and take appropriate measures. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 68 During a device configuration with a GPU expansion card, the fan curves can be created depending on the GPU temperatures. This helps to optimize fan performance and regulate the temperature of the system. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 69 We recommend updating the BIOS and BMC firmware regularly. See also Important instructions and manuals for operating the device (Page 10) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 70: Signing Out From The Bmc Web Server
• User name top right: Alternatively, it is also possible to sign out via the user name in the top right corner of the user interface. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 71: Local Monitoring With Redfish
2. In the BIOS setup, navigate to the menu "Advanced" > "Redfish Host Interface Settings". 3. Select the "Enabled" setting for "Redfish". Access takes place via the local web browser and the IP address of the BMC. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 72: Trusted Platform Module (Tpm)
• Be sure to observe the respective import restrictions of the country in which the device will be used. See also Important instructions and manuals for operating the device (Page 10) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 73: Expanding And Assigning Parameters To The Device
• The device may only be operated with the device cover closed. • Locking the device cover with the screw on the cover closure is not necessary for the safe operation of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 74 The flap closure lifts up on one side. Tilt the flap closure further open. The device cover slides back. Lift up and remove the device cover. Place the device cover down safely next to the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 75 4. Tighten the screw plug of the device cover with a cross-tip screwdriver by turning it by 1/4. See also Removing and attaching the front cover (Page 49) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 76: Expansion Cards
2 x H100 34 °C 320 W (9354/9454) 1 x A100, L4 or L40 26 °C 1 x H100 26 °C 2 x A100, L4 or L40 22 °C 2 x H100 22 °C Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 77 2 x single-slot PCIe expansion ⑤ RS_PCIE1 cards ⑥ RS_PCIE2 3 x single-slot PCIe expansion ⑤ RS_PCIE1 cards ⑥ RS_PCIE2 ⑦ RS_PCIE3 See also Expansion card slots (Page 162) NVIDIA SUPPORT (https://www.nvidia.com/en-us/support/) Intel SUPPORT (https://www.intel.com/content/www/us/en/support/contact-intel.html) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 78: Installing/Removing Expansion Cards In The Gpu Riser Cage
Carefully pull the GPU Riser Cages up- wards by the handle in the specified sequence. Note: Make sure that the signal cables from the Riser Cage to the motherboard are not loosened. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 79 Remove the blank panels. Insert the expansion card into the GPU Riser Cage. Note: Note the installation options described in "Usable expansion cards (Page 76)" . Swivel the locking bracket to the start- ing position. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 80 Fasten the GPU bracket to the dual-slot expansion card with two screws. 10a. Connect the expansion card NVIDIA A100 with the power cable. 10b. Connect the expansion card NVIDIA H100 or L40 with the power cable. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 81 Put the GPU Riser Cages back into the housing in the specified order. Note: Make sure that the cable of the first Riser Cage is in the guide provided. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 82 Expanding and assigning parameters to the device 6.2 Expansion cards Screw the GPU bracket back onto the GPU rail if necessary. Tighten the knurled screws on the rear of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 83 3. Carefully pull the GPU Riser Cage up- wards by the handle. Note: Make sure that the signal cables from the Riser Cage to the motherboard are not loosened. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 84 When removing dual-slot expansion cards, carry out the following four steps. Otherwise, skip to the 8th step. Disconnect the power cable from the expansion card. Disconnect the power cable from the motherboard. Unscrew the GPU bracket from the ex- pansion card. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 85 8. Swivel the locking bracket in the direc- tion of the arrow. 9. Remove the expansion card from the GPU Riser Cage. 10. Insert the blank panels. 11. Swivel the locking bracket to the starting position. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 86 Riser Cage on the right is in the guide provided. 13. Tighten the knurled screws on the rear of the device. See also Expansion card slots (Page 162) Replacing the air duct (Page 120) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 87: Installing/Removing Expansion Cards In The Pcie Riser Cage
You can find information on the specification of the expansion cards under "Usable expansion cards (Page 76)". Requirement • The device is open, see "Opening and closing the housing (Page 73)" • Screwdriver of type Torx T10 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 88 PCIe Riser Cage is inserted in the motherboard, removal is more difficult in this case. • Make sure that the signal cables from the Riser Cage to the motherboard are not loosened. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 89 7. Put the PCIe Riser Cage back into the housing. Note: Make sure that the Riser card in the PCIe Riser Cage is carefully inserted back into the motherboard. 8. Tighten the knurled screws on the rear of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 90 • Make sure that the signal cables from the Riser Cage to the motherboard are not loosened. Swivel the locking bracket in the direc- tion of the arrow. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 91: Memory Modules
You can use it to expand the memory capacity of the device to a maximum of 1.5 TB. Depending on the number of memory modules used, these are inserted in defined slots on the motherboard. The slots are inscribed on the motherboard. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 92 ● (20) ● ● (21) ● ● ● (22) ● (23) ● ● (24) ● Note Also observe the arrangement of the memory modules when using memory modules with other memory capacities. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 93 Conditions of use of memory modules Combinations of a different number of memory modules and the mixing of memory capacities are not approved. See also Opening and closing the housing (Page 73) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 94: Installing Memory Modules
Insert the memory module in the slot perpendicular to the motherboard. Press evenly on both sides of the memory module in order to prevent tilt- ing until both interlocks audibly engage. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 95: Removing Memory Modules
(Page 120)". Procedure 1. Push the two latches on the left and right of the slot outward. 2. Remove the memory module from the slot. 3. Push the two latches back inwards. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 96: Drives
• If there is no RAID system: The device is fully disconnected from the line voltage, see "Switching off the device (Page 47)". • The front cover has been removed, see "Removing and attaching the front cover (Page 49)". • Phillips screwdriver Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 97 Loosen the 4 highlighted screws of the remova- ble tray and remove the drive. Carefully insert the new drive into the remova- ble tray. Take care not to touch the contacts of the drive when you do this. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 98 10. Reattach the front cover to the device (option- al). Note The device can also be operated without the front cover. Note To ensure the reliable operation of the devices with removable trays, the removable tray must always be closed. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 99: Drives (Internal) On The Motherboard
• The device is fully disconnected from the line voltage, see "Switching off the device (Page 47)". • The device is open, see "Opening and closing the housing (Page 73)". • Screwdriver of type Torx T6 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 100 PCIe Riser Cage is inserted in the moth- erboard, removal is more difficult in this case. Note: Make sure that the connecting cable from the Riser Cage to the mother- board is not loosened. Remove the highlighted screw. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 101 7. Put the PCIe Riser Cage back into the housing. Make sure that the Riser card in the PCIe Riser Cage is carefully inserted back into the motherboard. 8. Tighten the knurled screws on the rear of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 102 Note: Make sure that the connecting cable from the Riser Cage to the mother- board is not loosened. Open the highlighted screw. The drive folds upwards on the right- hand side. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 103: Setting Up The Hardware Raid System Later
If you ordered a device with a RAID system, the hardware RAID adapter card is already built in on delivery. If you want to operate your device as a hardware RAID system afterwards, install a hardware RAID adapter card. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 104 • Two free slots in the PCIe Riser Cage • Phillips screwdriver • Screwdriver of type Torx T10 • Components for installing the hardware RAID adapter card. Your local SIEMENS contact person will provide you with information on these components. ①...
Page 105 6.5 Setting up the hardware RAID system later NOTICE Capacitor block must be discharged The original SIEMENS replacement part is supplied with a discharged capacitor block. When you remove or install a charged capacitor block, the Hardware RAID adapter card may be damaged. Data loss may result.
Page 106 • Make sure that the signal cables from the Riser Cage to the motherboard are not loosened. Swivel the locking bracket in the direc- tion of the arrow. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 107 Note: The slot RS_PCIE2 can be used for another PCIe expansion card. Swivel the locking bracket to the starting position. 10. Connect the capacitor block to the hard- ware RAID adaptor card with the adapter cable ②. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 108 12. Put the PCIe Riser Cage back into the housing. Note: Make sure that the Riser card in the PCIe Riser Cage is carefully inserted back into the motherboard. 13. Tighten the knurled screws on the rear of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 109: Configuring The Hardware Raid System
– – drives: • Back to previous window • <Esc> key 3. Use the Right and Left arrow keys of the keyboard to select the entry "Advanced" from the firmware selection menu. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 110 More information on the supplied data storage medium is available in the directory "DocuAndDrivers\Drivers\Broadcom\LSA". 3. Select "Apply Changes" to save your settings. 4. Press the <F10> key to save all settings and leave the user interface of the firmware. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 111: Monitoring A Hardware Raid System With "Broadcom Lsi® Storage Authority Software
Monitoring a hardware RAID system with "Broadcom LSI® Storage Authority Software" You can find detailed information on the use of "Broadcom LSI® Storage Authority Software" in the user guide to the software on the supplied data storage medium in the directory "DocuAndDrivers\Drivers\Broadcom\LSA". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 112: Device Maintenance And Repair
3 years Filter mat Depending on the degree of soiling * The interval for replacement of the flash drives (SSD) depends greatly on the type of use. A specific interval cannot be given. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 113: Removing And Installing Hardware
• The device is open, see "Opening and closing the housing (Page 73)". • An original spare part, i.e. an operating/display module of the same type • Screwdriver of type Torx T10 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 114 Note: Keep to the described sequence because of cable routing. If expansion cards are installed, perform the following six steps. Otherwise, perform the 6th and 7th step and then jump to the 10th step. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 115 Cage. 7. Insert the signal cable into the new GPU Riser Cage. 8. Insert the expansion card into the new GPU Riser Cage. 9. Swivel the locking bracket to the starting position. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 116 Cage on the right is in the guide provid- 11. Screw the GPU bracket back onto the GPU rail if necessary. 12. Tighten the knurled screws on the rear of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 117: Replacing The Pcie Riser Cage
2. Carefully pull the PCIe Riser Cage up- wards by the handle. Because the Riser card located in the PCIe Riser Cage is inserted in the moth- erboard, removal is more difficult in this case. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 118 If expansion cards are installed, perform the following four steps. Otherwise, skip to the 8th step. Swivel the locking bracket in the direc- tion of the arrow. Remove the expansion card from the PCIe Riser Cage. Insert the expansion card into the new PCIe Riser Cage. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 119 9. Put the new PCIe Riser Cage into the housing. Make sure that the Riser card in the PCIe Riser Cage is carefully inserted back into the motherboard. 10. Tighten the knurled screws on the rear of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 120: Replacing The Air Duct
• Screwdriver of type Torx T10 Removal of the air duct Remove the highlighted screw on both sides of the device. Open the mounting clips in the direction of the arrow on both sides. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 121 GPU rail on both sides. 5. Hold the air duct on the GPU rail and tilt it upwards in the direction of the arrow. 6. Carefully remove the air duct upwards. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 122 Close the mounting clips of the GPU rail in the direction of the arrow on both sides. Slide the module of the removable trays downwards into the guide and then backwards. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 123 Device maintenance and repair 7.3 Removing and installing hardware 4. Close the mounting clips in the direction of the arrow on both sides. 5. Tighten the highlighted screw on both sides of the device. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 124: Replacing The Device Fans
Remove the fan from the front. Insert the new fan into the intended mounting location until the fan snaps into place. See also Hardware accessories (Page 27) Maintenance intervals (Page 112) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 125: Changing The Backup Battery
(Page 47)". • The device is open, see important information in "Opening and closing the housing (Page 73)". • You have observed the local regulations relating to the disposal of used batteries. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 126 Lift off the module of the removable trays in an upwards direction. Note: Make sure that the cables of the module of the removable trays to the motherboard are not loosened. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 127 Make sure that the backup battery is aligned correctly. Slide the module of the removable trays down- wards into the guide and then backwards. Close the mounting clips in the direction of the arrow on both sides. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 128 Tighten the highlighted screw on both sides of the device. 10. Close the device, see "Opening and closing the housing (Page 73)". 11. Check the firmware settings. See also Hardware accessories (Page 27) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 129: Replacing The Power Supply Unit
Insert the new power supply unit into the emp- ty mounting slot until the power supply unit snaps into place. See also Switching off the device (Page 47) Hardware accessories (Page 27) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 130: Replacing The Processor
• Operate the processor only at a clock frequency that is equal to or less than the permitted clock frequency. Procedure Unscrew the six screws in the labelled order 6, 5, 4, 3, 2, 1. Remove the heat sink of the processor. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 131 Device maintenance and repair 7.3 Removing and installing hardware Open the highlighted screw. Lift the base cover. Pull the blue clamps to raise the processor socket. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 132 The contact springs may only touch flat with the contact side of the proces- sor. Slide the new processor into the metal socket. Press the processor down until you feel it snap into place. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 133 Device maintenance and repair 7.3 Removing and installing hardware Press the processor socket down so that the blue terminals snap into place. Close the highlighted screw. Note: Ensure a torque of 1.5 Nm. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 134 1 to 6. 1. First tighten the screws one after the other with 2.5 turns. 2. Then tighten each individual screw with a torque of 1.5 Nm. See also Hardware accessories (Page 27) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 135: Installing Operating System, Software And Drivers
Contact a certified disposal service company for electronic scrap for environmentally sound recycling and disposal of your old device, and dispose of it according to the relevant regulations in your country. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 136: Technical Specifications
The tripping characteristic of the higher-level protection must hereby take into consideration the starting currents of the IPC and those of the other devices. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 137 Device is designed for connection to supply with overvoltage category II (transient overvoltages up to 2500 V) Safety regulations • UL 60950-1/CSA 60950-1 • IEC 60950-1 • UL 62368-1/CSA 62368-1 • IEC 62368-1 • CB IEC 60950-1 • CB IEC 62368-1 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 138: Current/Power Requirements And Power Supply
The tripping characteristic of the higher-level protection must hereby take into consideration the starting currents of the IPC and those of the other devices. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 139: Technical Specifications Of The Power Supply (Ac)
The total sum of all voltages is max. 2600 W. The inrush current is: • 29.97 A at 0 °C • 32.94 A at 25 °C • 39.62 A at 50 °C Transient voltage interruption • 5 ms Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 140: Electromagnetic Compatibility
3 V/m; 2.7 to 6 GHz 80% AM to IEC 61000-4-3 • 10 V; 150 kHz up to 80 MHz 80% AM to IEC 61000-4-6 Magnetic field 100 A/m; 50 Hz; 60 Hz (according to IEC 61000-4-8) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 141: Ambient Conditions
M.2 SSD M.2-22110 Key M; PCIe Gen 3 x 4; 1 TB and 2 TB See also Drives in drive cage with removable tray (Page 96) Drives (internal) on the motherboard (Page 99) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 142: Technical Specifications Of The Motherboard
2 x slot PCIe 5.0 x16 (8 lanes) (FHFL) for Single-Slot GPU expansion; slot 1, 2, 3 and 4 • 3 x slot PCIe 5.0 x16 (16 Lanes) (FHHL) for Single-Slot expansion; slot 5, 6 and 7 Expansion cards For details, see "Expansion card slots (Page 162)". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 143: Technical Specifications Of The Hardware Raid Adapter Card
Gen5 x 8, Gen4 x 16 Gen3 x 16 Cooling Passive Power supply 8-PIN 16-PIN Via PCIe Maximum temperature 85 °C 88 °C 87 °C 88 °C See also Connecting I/O devices (Page 44) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 144: Technical Specifications Of The Interfaces
See the note in "Applicability of technical specifications (Page 136)". Ultimate load per pair ≤ 33 kg Full extraction length 1220 mm Rail height 43.8 mm Fastening Tool-free via clip and spring technology Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 145: Technical Specifications Of The Operating Systems
300 GB (when using a 1 TB M.2 SSD) NTFS, not compressed 400 GB (when using a 2 TB M.2 SSD) Third Data Remainder NTFS, not compressed See also Important instructions and manuals for operating the device (Page 10) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 146: Dimension Drawings
Dimension drawings Dimension drawing of the device Note IEC 60297-3-100 The system meets the requirements for 2U according to IEC 60297-3-100. Front view and top view All dimensions in mm Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 147 Dimension drawings 9.1 Dimension drawing of the device All dimensions in mm Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 148: Dimension Drawing Of The Expansion Card A100, H100, L40
NVIDIA A100 Tensor Core GPU, NVIDIA H100 Tensor Core GPU, NVIDIA L40 GPU All dimensions in mm Dimension drawing of the expansion card L4 NVIDIA L4 Tensor Core GPU All dimensions in mm Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 149: Dimension Drawing Of The Expansion Card X710
Dimension drawings 9.4 Dimension drawing of the expansion card X710 Dimension drawing of the expansion card X710 Intel X710 All dimensions in mm Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 150: Standards And Approvals
• 2019/424/EU "Setting ecodesign requirements for servers and data storage products pursuant to Directive 2009/125/EC" EC Declaration of Conformity The associated declaration of conformity is available on the Internet at the following address: Rack PC certificates (http://support.automation.siemens.com/WW/view/en/10805674/134200). Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 151: Ukca Marking
DIN ISO 9001 certificate and software license agreements ISO 9001 certificate The Siemens quality management system for our entire product creation process (development, production and sales) meets the requirements of ISO 9001. This has been certified by DQS (the German society for the certification of quality management systems).
Page 152: Culus Approval
This product meets the requirements of the standard EN 61000-6-4 Generic standards – Emission standard for industrial environments This product meets the requirements of the standard EN 61000-6-4 Generic standards - Emission standard for industrial environments. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 153: Korea (Kc)
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며 가정 외의 지역에서 사용하는 것을 목적으로 합니다. 10.10 Taiwan (BSMI) Taiwan This product meets the requirements of CNS15598-1(109/06), CNS15663 Section 5 - 102/7, CNS15936 (105/09). Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 154: Hardware Description
The motherboard consists of these main components: Processor and chip set, 24 slots for memory modules, internal and external interfaces, FLASH BIOS and backup battery. Slots for memory modules CPU 1 CPU 2 Backup battery Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 155: Position Of The Interfaces On The Motherboard
Hardware description A.1 Motherboard Technical features of the motherboard Technical features of the motherboard can be found under "Technical specifications of the motherboard (Page 142)". A.1.2 Position of the interfaces on the motherboard Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 156 MCIO PCIe for GPU Riser (26) Signal cable for left front pan- Cage 1 (9) Ethernet (X1P1) RJ45 (18) Slots for power supply (27) Power supply for backplane (BMC Management Port) modules Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 157: Position Of The Interfaces On The Backplane
Hardware description A.1 Motherboard A.1.3 Position of the interfaces on the backplane MCIO SlimSATA Power supply Signal cable See also Position of the interfaces on the motherboard (Page 155) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 158: Internal Ports
Slim SATA SLIMSATA1 SLIMSATA2 M.2 SSD NGFF1 NGFF2 Power supply dual slot ex- VGAPWR3 pansion cards in the GPU VGAPWR4 Riser Cage VGAPWR5 VGAPWR6 Front fan FRNT_FAN1 FRNT_FAN2 FRNT_FAN3 FRNT_FAN4 FRNT_FAN5 FRNT_FAN6 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 159 Hardware description A.2 Internal ports Interface Connector Assignment TPM socket TPM1 Power supply backplane BPPWR2 Power supply GPU Riser Cage PWR3 PWR5 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 160 Hardware description A.2 Internal ports Interface Connector Assignment Signal cable 2 for right front SYS_PANEL2 panel Signal cable 1 for right front SYS_PANEL1 panel Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 161 Hardware description A.2 Internal ports Interface Connector Assignment Signal cable backplane BP_I2C1 Signal cable for intrusion INTRUSION1 detection Signal cable for USB 3.2 Gen U31G1_34 1 interface in the left front panel Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 162: Expansion Cards
Slot GPU x 16 lanes Slot 1, Slot 3 ② Slot GPU x 16 lanes Slot 2, Slot 4 ③ Signal cable connection Slot 1+2, Slot 3+4 8 lanes for simultaneous assignment of the slots Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 163: Interrupt Assignment Of The Slots For Expansion Cards In The Riser Cages
Resources may be viewed as follows under Windows: 1. Press the "Windows® key" and "R" simultaneously. 2. Enter "msinfo32" in the "Open" field. 3. Confirm your entry with "OK". Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 164: External Interfaces
(3.3 V; 900 mA; to 10 Gbps) X65, X66 Ethernet BMC X1P1 RJ45 Management (up to 1 Gbps) Port Ethernet 1 and 2 X2P1, RJ45 X3P1 (up to 10 Gbps) 9-pin D-sub socket Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 165: Status And Error Code Of The Device
Error Key size not supported Error Agesa0 verification error Error SMU FW verification error Error OEM SINGING KEY verification error Error Generic FW Validation error Error RSA operation fail - bootloader Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 166 MCM slave status register contains bad bits Error MCM call was made in a single die envi- ronment Error PSP secure mapped to invalid segment (should be 0x400_0000) Error No physical x86 cores were found on die Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 167 Unconditional Unlock based on serial numbers failure Error Syshub register programming mismatch during readback Error Family ID in MP0_SFUSE_SEC[7:3] not correct Error An operation was invoked that can only be performed by the GM Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 168 This PSP FW was revoked Error The platform model/vendor id fuse is not matching the BIOS public key token Error The BIOS OEM public key of the BIOS was revoked for this platform Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 169 (Local Master PSP on P1 socket) Re- quested fuse is already blown, reblow will cause ASIC malfunction Error (Local Master PSP on P1 socket) Error with actual fusing operation Error SEV FW Rollback attempt is detected Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 170 Knoll returned an invalid response to a command Error Bootloader failed in Knoll Send Com- mand function Error No Knoll device found by verifying MAC Error The maximum allowable error post code Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 171 Error BIOS load process fully complete Error Bootloader successfully release x86 Error Early Secure Debug completed Error GetFWVersion command received from BIOS is completed Error SMIInfo command received from BIOS is completed Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 172 Enter recovery mode with header cor- ruption Error We should not treat this errors as block- Error When same fw image type is already loaded in SRAM Error 0XE2 progress codes are available Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 173 Bootloader successfully loaded SS3 Error Bootloader successfully load fTPM Driver Error Bootloader successfully loaded sys_drv Error Bootloader successfully loaded secure OS Error Bootloader about to transfer control to secureOS Error Bootloader sequence finished Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 174 PCI HB Initialization Operation NB DXE Initialization Operation NB DXE SMM Initialization Operation SB DXE Initialization Operation SB DXE SMM Initialization Operation SB DEVICES Initialization Operation ACPI Module Initialization Operation CPU PM Structure Initialization Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 175 Wait BMC ready Operation BIOS Setup Utility password verify Operation BIOS Setup Utility start Operation BIOS Setup Utility input wait Operation Ready to boot event Operating system Operation APIC mode phase Operation PIC mode Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 176: Technical Support
You can find additional information and support for the products described on the Internet at the following addresses: • Technical support (https://support.industry.siemens.com) • Support request form (https://www.siemens.com/supportrequest) • After Sales Information System SIMATIC IPC/PG (https://www.siemens.com/asis) • SIMATIC Documentation Collection (https://www.siemens.com/simatic-tech-doku-portal) • Your local representative (https://www.automation.siemens.com/aspa_app) • Training center (https://siemens.com/sitrain) •...
Page 177: Troubleshooting
Replace the backup battery. rect even after correct setting in the firmware (BIOS) USB device not responding USB ports are deactivated in the Use a different USB port or activate the port. firmware (BIOS) Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 178: Problems When Booting The Device
Different pin assignment expansion card and restart the device. If the error no longer occurs, the expansion card was the cause of the fault. Replace this with a Siemens expansion card or contact the supplier of the ex- pansion card.
Page 179: Markings And Symbols
Opening for Kensington lock opening Attention ESD (Electrostatic sensitive Warning of hot surface device) Operator controls Symbol Meaning Symbol Meaning On/off switch, without electrical isola- Localizatio tion On/off switch, without electrical isola- tion Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 180: Certificates, Approvals And Markings
Connection to the power supply PS/2 mouse interface Protective conductor terminal PS/2 keyboard-interface Connection for functional earthing Multimedia Card Reader (equipotential bonding line) DisplayPort interface Smart Card Reader DVI port Line In Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 181 LAN interface, not approved for con- Line Out necting WAN or telephone Serial port Microphone input USB port Universal Audio Jack USB 2.0 high-speed port Headphone output USB 3.0 super-speed port USB 3.1 SuperSpeedPlus port Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 182: List Of Abbreviations
European standard Hard Disk Drive Hard disk drive Height unit Input/Output Data input/output on computers iAMT Intel® Active Management Technology International Electrotechnical Commission Ingress Protection Degree of protection Interrupt Request Interrupt request Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 183 ITU-T standardized recommendation for data transfer via serial ports Positive supply voltage of integrated circuits Video Graphics Array Video adapter which meets industrial standard Watchdog Program monitoring with error detection and alarming. Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 184: Index
Device fan, 113, 124 Immunity to interference, 33 Maintenance interval, 112 Hot swap Removing and installing, 113, 124 Changing the drive in the removable tray, 96 Hot-spare drive For RAID1 and RAID5 systems, 51 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 185 91 Hot-spare drive, 51 Mounting Installation options for drives, 52 horizontally on device base, 40 Removal with telescopic rails, 40 Device fan, 113, 124 Mounting holes, 41 New Zealand, 152 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...
Page 186 Switching on the device, 46 Taiwan, 153 Telescopic rails Mushroom head rivets, 41 Technical specifications (basic configuration), 144 TPM, (Trusted Platform Module) Transportation, 30 Trusted Platform Module, 72 Position of the interfaces, 16 Server SIMATIC IPC RS-828A Operating Instructions, 10/2023, A5E52813900-AA...

Siemens SIMATIC IPC RS-828A Operating Instructions Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Siemens SIMATIC IPC RS-828A

Summary of Contents for Siemens SIMATIC IPC RS-828A

Table of Contents
