Habitat Aspley 334/1838 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Aspley
Issue 1 - 20/12/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aspley 334/1838 and is the answer not in the manual?

Questions and answers

Related Manuals for Habitat Aspley 334/1838

Summary of Contents for Habitat Aspley 334/1838

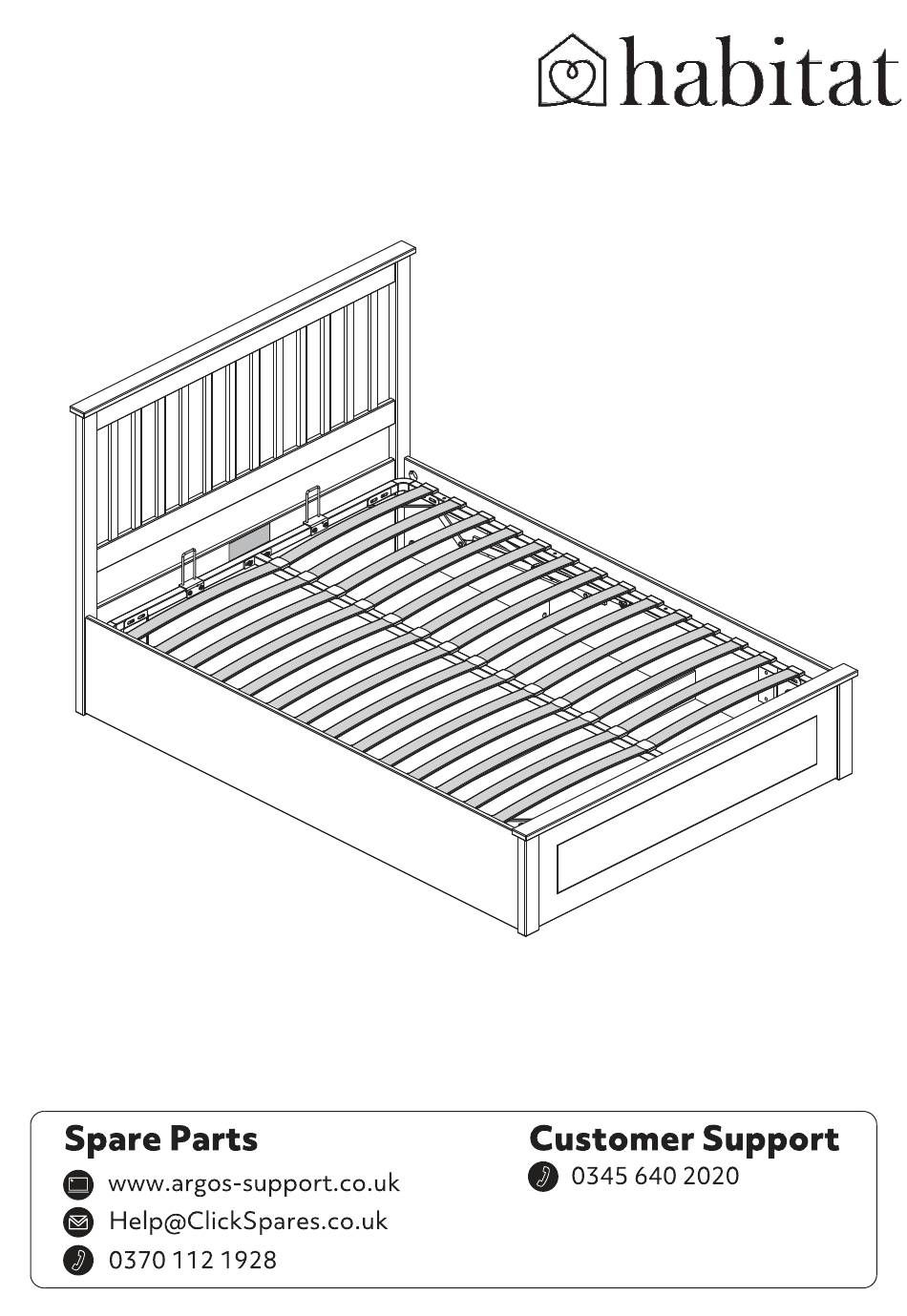

  • Page 1 Aspley Issue 1 - 20/12/23...

  • Page 2: Important Safety Warning

    ENSURE MATTRESS IS ON kept away from the bed BEFORE LIFTING when operating the bed mechanism. Habitat, Argos Limited and Sainsbury's Supermarkets Ltd, London EC1N 2HT, UK. Argos (N.I.) Ltd and Sainsbury’s (NI) Ltd. Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK...
  • Page 3 Right Post (1100x63mm) Left Post (1100x63mm) Wooden Block (125x65mm) Footboard (1618x360mm) Footboard top rail (1642x67mm) Storage Centre Rails (1560x110mm) Right Side Rail (2045x355mm) Left Side Rail (2045x355mm)
  • Page 4 Headboard Bottom Panel (1492x355mm) Headboard Frame (1492x609mm) Headboard top rail (1642x67mm) Storage Bottom Panel (1558x670mm) Storage Middle Bottom Panel (1558x670mm)

  • Page 5: Tools Required

    10x40 Wooden Dowel x28 5x70mm Screw x4 8x40 Wooden Dowel x8 10004 1/4x80mm Bolt x4 Half-moon nut x4 7x90mm Bolt x4 9204 6000 1/4 mm nut x4 Half-Moon Washer x4 1/4x65mm Headless Bolt x4 13x40 Metal Dowel x10 13x32 Metal Dowel x8 15x11 Locking Nut x18 Allen Key x1 1/4x20mm Bolt x8...
  • Page 6 10x40 Wooden Dowel x28 8x40 Wooden Dowel x8...
  • Page 7 Metal Dowel 40mm Locking Nut 15x11 Attention to the holes position on the post.
  • Page 8 Locking Nut 15x11 Attention to the holes position on the post. 90mm Bolt x4...
  • Page 9 Metal Dowel 32mm 0mm Screw x...
  • Page 10 1/4x80mm Bolt x2 1/4x80mm Bolt x2...
  • Page 11 Locking Nut 15x11...
  • Page 12 Metal Dowel 32mm Locking Nut 15x11...
  • Page 13 65mm Headless Bolt x4 Half-Moon Washer x4 1/4 mm nut x4 Spanner 1º 2º...
  • Page 15 Metal Structure...
  • Page 16 Parts Pull Strap Mattress Stopper (110x60mm) x2 Metal Corner (235x105mm) Plastic Corner (54x54x30mm) x4 Slats Cap (52x8mm) x28 Slat Center Cap (57x8mm) x14 Right Hinge (910mm)
  • Page 17 Parts Left Hinge (910mm) Hydraulic Piston (650N) Footboard end Bar (1392x30x30mm) x1 Center Bar (1842mm) Headboard end Bar (1392x30x30mm) x1 Side Bar (1890x30x30mm) x2 Slats (742x52mm)
  • Page 18 45mm Bolt x24 20mm Bolt x4 13mm Nut x24 (M8) Allen key x1 Spanner x1 Not included...
  • Page 19 Holes position 45mm Bolt x4 Nut x4 Allen Key x1 Spanner x1...
  • Page 20 45mm Bolt x16 Nut x16 Allen Key x1 Spanner x1 Allen Key x1 20mm Bolt x4...
  • Page 21 2° 1° 3° Insert the Slats (26) To hardware parts (9) and (13) then press into the base making sure they are secure. 3° 2° 1°...
  • Page 22 Right Hinge Left Hinge Not included 20mm Bolt x8 Attention Centralize bolts into the holes. 1°- Finish tighten bolts after adjustment, see Step 8...
  • Page 23 45mm Bolt x4 Nut x4 Allen Key x1 Spanner x1 Attention Centralize bolts into the holes. 1º Finish tighten bolts after adjustment, see Step 7...
  • Page 24 Attention: Adjust bed base making sure it is centralized between headboard and footboard. After adjusting then tighten all bolts from step ( ) and step ( ).

This manual is also suitable for:

Aspley 342/6540
