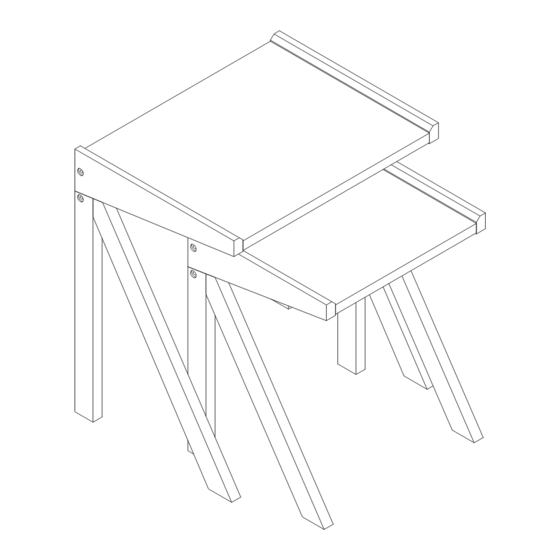

- Page 1 Annie Nesting Tables Spare Parts Customer Support 0345 640 2020 www.argos-support.co.uk Help@ClickSpares.co.uk 0370 112 1928 Issue 1 - Sep 2023...
- Page 2 ● Regularly check and ensure that all bolts and fittings are tightend properly. • Maximum loading weight 30kg ● This product is compliant EN12521 Habitat, Argos limited and Sainsbury’s Supermarkets Ltd, London EC1N 2HT, UK. Argos(N.I.) Ltd and Sainsbury’s (NI) Ltd. Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK...
- Page 3 Fittings (Shown to scale) Bag 1 M6x60mm Bolt x 8 43mm Metal Dowel x10 Locking Nut x10 Ø10x12mm Nut x 8 Ø8x30mm Wooden Dowel x 12 38x20mm Felt pad x 8 M4 Alley Key x 1...
- Page 4 Panels Right Leg Frame x1 Left Leg Frame x1 (500 x 350mm) (500 x 350mm) Back Panel x1 (410 x 70mm) Top Panel x1 (410 x 350mm) Right Leg Frame x1 Left Leg Frame x1 (430 x 305mm) (430 x 305mm) Back Panel x1 (310 x 70mm) Top Panel x1...
-
Page 5: Tools Required
Tools required Phillips screwdriver (small & medium) - Page 6 M6x60mm Bolt x 8 43mm Metal Dowel x10 43mm Metal Dowel x10 Locking Nut x10 Ø10x12mm Nut x 8 Ø8x30mm Wooden Dowel x 12 38x20mm Felt pad x 8 Ø8x30mm Wooden Dowel x 12 M4 Alley Key x 1...
- Page 7 38x20mm Felt pad x 8 Locking Nut x 10...
- Page 8 M6x60mm Bolt x 8 Ø10x12mm Nut x 8 M4 Alley Key x 1 Turn Product...
- Page 9 Assembly is complete.
