GNF001
low speed refrigerated
centrifuge
safety rules
For safety reasons, please read the operating manual carefully before starting
the operation. Components exposed to heat, humidity, and biological changes
can cause functional degradation, even loss of safety, leading to accidents!
User's Manual of GNF001
Version 1, July 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nahita GNF001
Summary of Contents for Nahita GNF001
- Page 1 For safety reasons, please read the operating manual carefully before starting the operation. Components exposed to heat, humidity, and biological changes can cause functional degradation, even loss of safety, leading to accidents! User's Manual of GNF001 Version 1, July 2023...
- Page 2 * Please NEVER use the following materials in the centrifuge: －Inflammable and explosive materials; －Strengthen chemical materials; －Toxic or radioactive substances or pathogenic micro-organisms and so on. User's Manual of GNF001 - 1 - Version 1, July 2023...
- Page 3 Warning: When handling the centrifuge, do not force the front cover/invert the machine, otherwise it will cause catastrophic damage to the machine! User's Manual of GNF001 - 2 - Version 1, July 2023...
-
Page 4: Table Of Contents
6.3 Warranty (repair) basis…………..……………………………………… 25 7. Fault handling …………………………..…………………………………26 7.1 Emergency door opening cover………………………………………… 26 7.2 Fault alarm information……………………………..……………... 26-29 7.3 Machine operation records……………………………………………… 30 8. technical data ……………………………………..……………………..……31 9. packing list …………………………..…………………………………………32 User's Manual of GNF001 - 3 - Version 1, July 2023... -
Page 5: Terms Of Use Security
30 cm around the centrifuge, no hazardous substances or items blocking vents within 30 cm around the centrifuge. If in the use of The company. low-speed BenchtopAir-refrigerate Centrifuge, the User's Manual of GNF001 - 4 - Version 1, July 2023... -
Page 6: Operation Notes
●After using for a period of time, the provisions of maintenance should be strictly in accordance with the "cleansing and disinfection," 1.2 The relevant quoting standards User's Manual of GNF001 - 5 - Version 1, July 2023... - Page 7 & special requirements of laboratories electrical centrifuge; ● GB191-2000 Icon of packaging & Transportation; ● GB6587.6-86 Transport-Test of Electronic Measurement Instruments ● GB/T 14710-1993 Environmental requirement & test way of medical electrical equipment; User's Manual of GNF001 - 6 - Version 1, July 2023...
-
Page 8: Introduction To Low-Speed Freezing Centrifuge

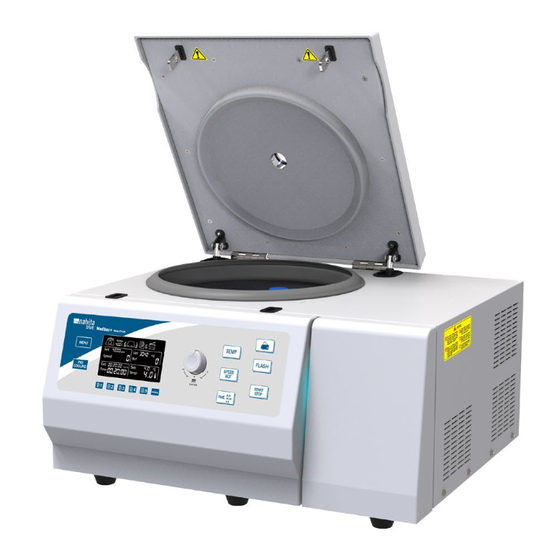

2.1 GNF001 Introduction to the Appearance of Low Speed Refrigeration Centrifuge Figure 1: Left Side Appearance of GNF001 Low Speed Refrigeration Centrifuge Figure 2: External view of the right side of the GNF001 low-speed freezing centrifuge User's Manual of GNF001 - 7 -... -
Page 9: Overview
User's Manual of GNF001 - 8 - Version 1, July 2023... -
Page 10: Security Protection Agency
The door cover adopts an explosion-proof structure, and there is a locking mechanism at the front of the door cover. Only when the centrifuge is powered on and the rotor is User's Manual of GNF001 - 9 - Version 1, July 2023... -
Page 11: Machine Placement Requirements
During the operation of the rotor, it is strictly prohibited to manually power off, otherwise it may cause damage to the control circuit! User's Manual of GNF001 - 10 - Version 1, July 2023... -
Page 12: Optional Accessories
4006 4000 2860 2 deep hole plates × 2 × 96 PP Round/conical 4007 6000 5150 15×12 bottom with cover PP Round/conical 4008 5000 3435 50×8 bottom with cover User's Manual of GNF001 - 11 - Version 1, July 2023... -
Page 13: Preparation Before Use
Confirm that the support or table on which the machine is placed is secure and cannot shake or vibrate. 4.4 Connect the power supply correctly User's Manual of GNF001 - 12 - Version 1, July 2023... -
Page 14: Operating Instructions
5. Speed/relative centrifugal force setting key, ToggleKeys 6. Turn number setting key 7. Centrifuge time: Set key in hours/minutes/seconds 8. Program selection: rotor number, lifting speed 9. Prefabricated cold function User's Manual of GNF001 - 13 - Version 1, July 2023... -
Page 15: Power On
Note: The door cover is not properly closed, and the centrifuge is not running. Please confirm that the door cover is closed properly. User's Manual of GNF001 - 14 - Version 1, July 2023... -
Page 16: Installing The Rotor
Release both hands, and then press the rotor down with your hands. ● Use the tool for disassembling the rotor (special Hex key) to tighten the lock nut clockwise; User's Manual of GNF001 - 15 - Version 1, July 2023... - Page 17 If necessary, the locking nut should be tightened again to ensure that the rotor is firmly installed. User's Manual of GNF001 - 16 - Version 1, July 2023...
-
Page 18: Calculation Of Rotor Load
(plastic and glass containers) are damaged, and replace them in time if any. 5.8 Safe use of rotor User's Manual of GNF001 - 17 - Version 1, July 2023... -
Page 19: Example Of Parameter Setting Operation
→ make the number in the display window of the rotor number flash → turn the parameter adjustment knob key to set the rotor number to 4001. User's Manual of GNF001 - 18 - Version 1, July 2023... - Page 20 Dec display flash. Rotate the parameter adjustment knob to set the speed to 3. Note: When DEC is set to 0, the shutdown is free parking, and the system has no brake intervention! User's Manual of GNF001 - 19 - Version 1, July 2023...
-
Page 21: Parameter Settings Other
Sec. unit time. 5.10.5 提 示 音 设置 ： When the instrument is in standby mode, both the User's Manual of GNF001 - 20 - Version 1, July 2023... - Page 22 Note: "The maximum centrifugal force value is related to the maximum centrifugal radius"; The "centrifugal force value" set should take into account the radius of the rotor and the shape of the centrifugal container. User's Manual of GNF001 - 21 - Version 1, July 2023...
-
Page 23: Cleaning And Purification
The lifespan of the attachment is related to the frequency and use of sterilization. If there is obvious corrosion and damage to the rotor and separation container, please stop using it immediately. Table 2: Sterilization Parameters Table User's Manual of GNF001 - 22 - Version 1, July 2023... - Page 24 It is not allowed to operate with electricity to prevent personnel from getting electric shock or User's Manual of GNF001 - 23 - Version 1, July 2023...
-
Page 25: Warranty (Repair) Basis
(excluding damage caused by improper user use) will be covered by our company's warranty. Beyond the warranty period, repairs will be charged. 7.Fault handling 7.1 Emergency door opening cover User's Manual of GNF001 - 24 - Version 1, July 2023... -
Page 26: Fault Alarm Information
After an abnormality occurs, the power should be turned off first and restarted after the fault is resolved. User's Manual of GNF001 - 25 - Version 1, July 2023... - Page 27 Lid open failure failure Opening limit switch Error11 Lid close failure Closing failure limit switch Error13 failure Please contact us Lock Not reach the Error 15 Please contact us required speed User's Manual of GNF001 - 26 - Version 1, July 2023...
- Page 28 4.Rotate the driving shaft with hand, if it can't drive smoothly, please contact professional staff of manufacturer to solve it. Not the problems 1.Please contact the professional staff of manufacturer to solve. above User's Manual of GNF001 - 27 - Version 1, July 2023...
- Page 29 Recommended Record List can be as following: Weight of Working Sample single-tube Rotor Date Speed Time condition Operator Name (Including of machine samples) User's Manual of GNF001 - 28 - Version 1, July 2023...
-
Page 30: Technical Data
● 634 ㎜（L）*548 ㎜（W）*335 ㎜（H） (machine) Net weight ●65 ㎏ Referenced standards ● GB4793.1-2007 《 测量、 控制实验室用电气设备的安全要求第一部分： 通用安全要求》 ； ● GB4793.7-2001《测量、控制实验室用电气设备的安全要求 实验室用离心机的特殊 要求》； ● GB191-2000《包装储运图示标志》； ● GB6587.6-86《电子测量仪器运输试验》； ● GB/T14710-1993《医用电气设备环境要求及试验方法》； ● 行业标准：YY/T 0657-2008《医用离心机》。 User's Manual of GNF001 - 29 - Version 1, July 2023... - Page 31 Operation, Maintenance and Repair Manual When unpacking, please check in a timely manner. If there are any discrepancies, please contact us or our authorized agent in a timely manner. User's Manual of GNF001 - 30 - Version 1, July 2023...
