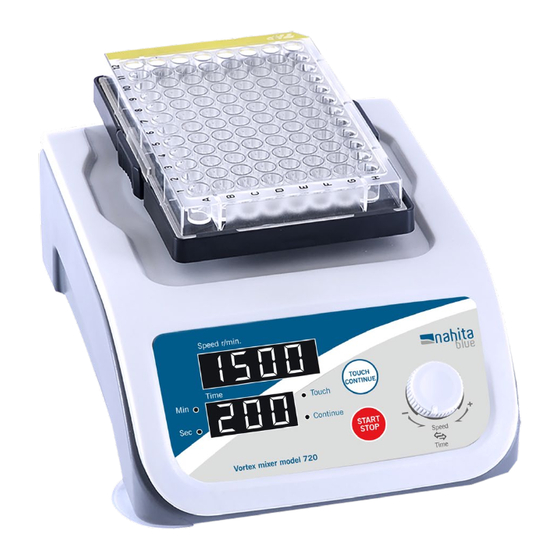

LGB008
Multifunction oscillation mixer
Safety code
☆ For safety reasons, please read the operation manual carefully before starting the
operation!
☆ Parts are subject to heat, humidity and biological changes, which can lead to functional
degradation and even loss of safety and cause accidents!
User's manual for LGB008
English
Version 1, July 2023
Advertisement
Related Manuals for Nahita blue LGB008
Summary of Contents for Nahita blue LGB008

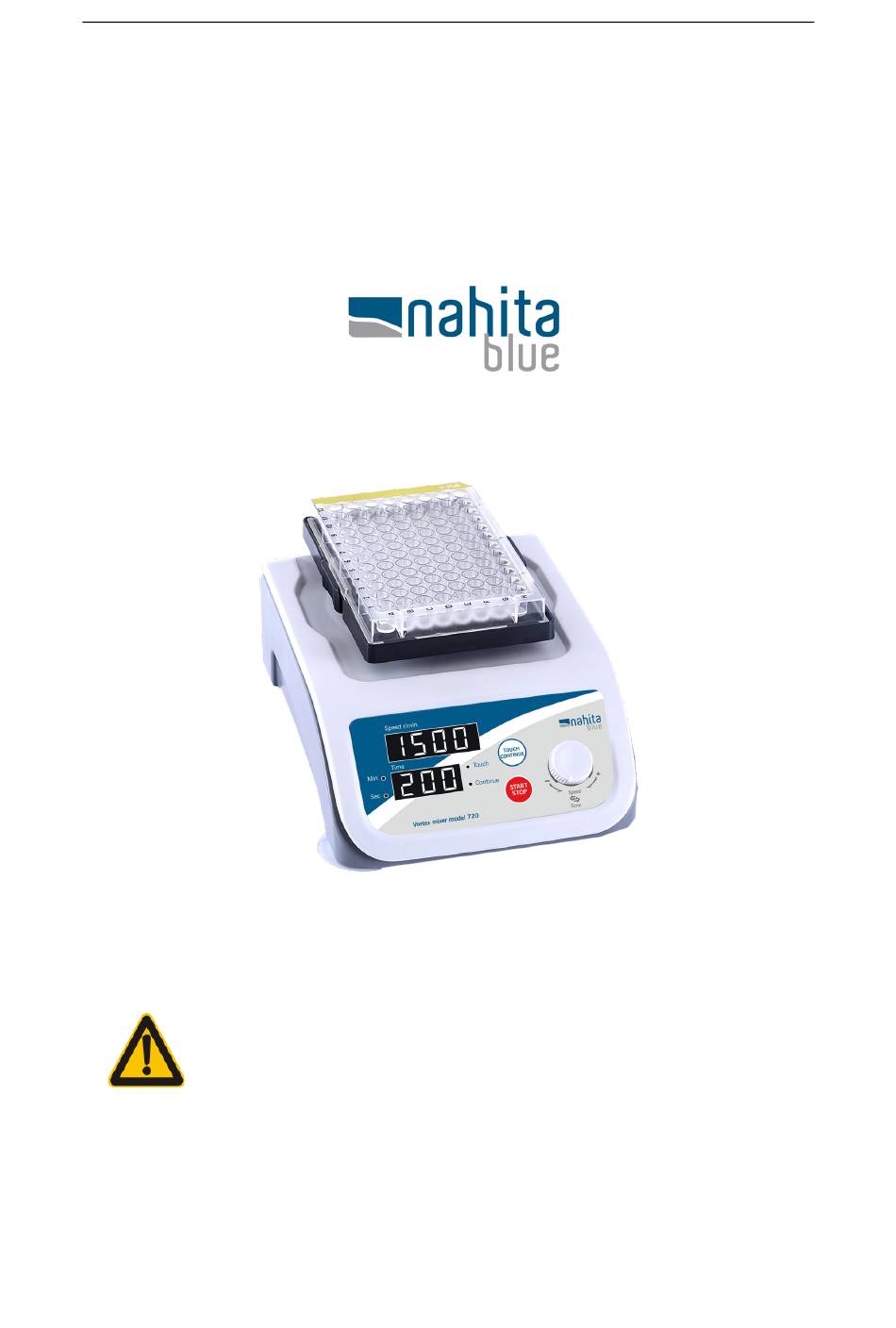

- Page 1 English LGB008 Multifunction oscillation mixer Safety code ☆ For safety reasons, please read the operation manual carefully before starting the operation! ☆ Parts are subject to heat, humidity and biological changes, which can lead to functional degradation and even loss of safety and cause accidents! User’s manual for LGB008 Version 1, July 2023...
- Page 2 English Contents Foreword....................3 Instrument use environment..............3 Safety Tips....................3-4 A product brief description..............5 Two product models and their main technical parameters.......5 Three oscillator appearance function introduction.........6-7 Four operating instructions..............7-9 4.1 Installation of standard gaskets and plate clamps......8 4.2 Turning the power on/off..............8 4.3 Operating the Oscillator..............9 Five maintenance items............
- Page 3 English Foreword This manual is copyrighted by Magal and no one may reprint or distribute any content of this manual, including pictures and audiovisual materials. The device operator can copy some of the sections of this operating manual, but only for internal use, for example.
- Page 4 English perform maintenance operations on the oscillator system. * If the operator encounters a situation not mentioned in this manual, please contact the authorized agent of Magal or Magal to inquire about the correct treatment. * Try to use the accessories provided by Magal. If the user wants to use other accessories, Magal will not be responsible for the adverse consequences.
- Page 5 English when the hands are in possession of liquid! * Do not plug or unplug the power plug when the instrument is powered! * It is strictly forbidden to maintain and scrub the instrument under power-on state! * It is forbidden to oscillate the sample capacity beyond 70% of the test tube capacity.
- Page 6 English 2. Product model and its main technical parameters Product number LGB008 Input power AC100-250V/50/60Hz Output power [W] Motor / drive mode DC24V brushless motor / direct drive control method PWM stepless frequency control Operation method Jog/continuous Power fuse PPTC / self-recovery fuse / no need to replace Maximum load 1.5Kg Speed range [r/min.]...
- Page 7 English 3. Oscillator appearance function introduction A. Main unit B. Operation panel C. Oscillation output fixed board D. Power switch E. DC24V power jack The picture above shows the LGB008 oscillator (appearance diagram 1) The picture above shows the LGB008 oscillator (function diagram 2) >7 User’s manual for LGB008 Version 1, July 2023...
- Page 8 English Description shown in function diagram 2 1. Touch / Continue Jog and continuous mode button. 2. Start / Stop Start and stop buttons. When in jog mode and LGB008-2~LGB008-11 clamps, press and hold this button to make short-time jog oscillation. When starting and stopping, the instrument will issue a “drip”...
- Page 9 English If there is any of the above, please contact the manufacturer or the authorized dealer of the manufacturer in time, and do not repair it yourself without the guidance of professional maintenance personnel! 4.1 [Installation of standard gaskets and plate fixtures] A/B.
- Page 10 English he power switch button in the appearance diagram 1 is “powered” when the “ㄧ” is turned to the “ON” position, and the power is turned off when the “O” is turned to the “OFF” position; 4.3 [Operating Oscillator] 1. Turn on the power, the instrument defaults to jog mode. 2.
- Page 11 English When disassembling the clamp, both hands should tighten the buckle inward and lift it up vertically, do not shake it from side to side! 5.3 When cleaning the fixture, clean it with a mild detergent dampened with a sponge or cotton cloth, then wash off the detergent with distilled water. Do not sprinkle or spray the rotor with water as the liquid may be left somewhere and cause corrosion.
- Page 12 English LGB008-6 Test tube A test tube having a gasket diameter of 12-13 mm and Max.1500rp Standard a number of 16 holes. LGB008-7 Test tube A sample bottle with a gasket diameter of 15 mm and a Max.1500rp Optional number of 12 holes. LGB008-8 Test tube PCR 0.2 ml ×...
- Page 13 English 7. Troubleshooting The following table lists the faults of the instrument and the causes of the related faults and the treatment methods. You can follow the prompts to eliminate them. If the user still cannot solve the faults or the faults are not included in the list below, the user should contact the production immediately.
- Page 14 English The panel LED 1. The power supply is not connected, check the power distribution. indicator does not 2. Switch the remaining indicators to check if they are normally lit. If light after the not, please contact the manufacturer. power switch is 3.
- Page 15 English 8. Warranty (including repair) basis The warranty period (the repair period) starts from the time the user receives the product, and during the warranty period (the repair period), if the product fails, the sales company authorized by the production unit or the production unit is responsible for free on-site repair, if necessary replacement Parts are caused by their own quality, not by improper use of humans, they can be replaced free of charge, otherwise they will be charged.
- Page 16 English 9. Packing list Serial name Quantity Remarks number Host 1 set Standard gasket 1 set LGB008-1~LGB008-6 By order Additional fixture contract Certificate of Compliance 1 copy Quality Assurance page 1 copy Operation manual 1 copy Power Adapter When unpacking, please check it in time. If there is any discrepancy, please contact the production company authorized by the production unit or production unit in time! >16...
- Page 17 English Maintenance record ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- ---------------------------------------- >17 User’s manual for LGB008 Version 1, July 2023...
