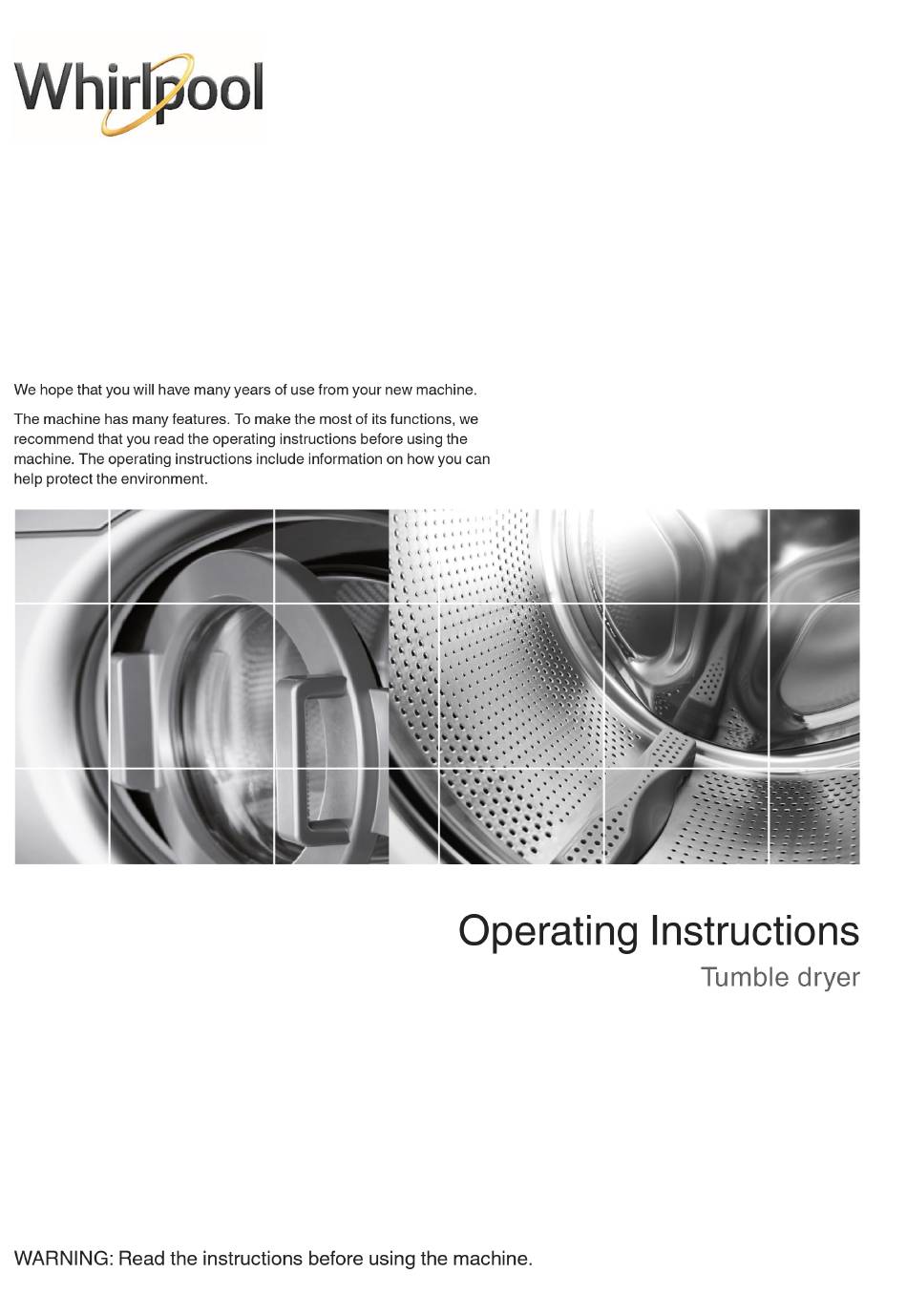

- Page 1 ALA 004...
-
Page 2: Table Of Contents
Contents Before using your machine for Backlighting the first time Condensed water Language selection Automatic emptying Safety instructions Settings Safety You can carry out the following settings Transport/Winter storage How to choose the settings: Packing material Audible Volume Recycling Language Child safety Child-safe General... - Page 3 Contents Service Before contacting the service division Installation Positioning the tumble dryer Condensed water Electrical installation Door hanging Follow these instructions Quick guide...
-
Page 4: Before Using Your Machine For The First Time
Before using your machine for the first time Language selection You will be prompted to select the display language when you have connected your machine and start it for the first time. Do as follows: 1. Turn the programme selector to choose from: US English, English, Svenska, Dansk, Norsk, Suomi, Français, Deutsch, Italiano, Espanol, Русский, Nederlands. -
Page 5: Safety Instructions
Safety instructions Read the operating instructions and Safety keep them in a safe place! • The machine must not be used for drying items that have been dry-cleaned at home or fabrics that may contain residues of flammable liquids. • The tumble dryer is not to be used if industrial chemicals have been used for cleaning. -
Page 6: Child Safety
Child safety General Activating/deactivating Child-safe start. WARNING! Do as follows to open the settings menu: 1. Turn off the machine using the main power Do not allow children to play with the switch. tumble dryer. 2. Press the Stop button and switch on the •... -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer 1. Main power switch 5. Lint filter 2. Condensed water container 6. Outer door 3. Panel 7. Condenser 4. Type plate... -
Page 8: Advice And Tips Before You Tumble-Dry
Advice and tips before you tumble-dry Static electricity Here are some tips that may help you before you begin tumble-drying. To reduce the risk of static electricity in the laundry after tumble drying you can: Have the clothes been spun? •... -
Page 9: Tumble Drying
Tumble drying Below are step-by-step instructions to help you achieve the best possible tumble-drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. Do up zips and buttons, fasten belts, sort the items and adjust the load and temperature. -
Page 10: Select The Programme
Tumble drying Select the programme Programme selector Programme name Start Stop Select a programme by turning the programme selector. The selected programme is shown in the display window. Guidelines as to what specific programmes can be used for: The Auto extra dry, Auto dry and Auto normal Auto extra dry (low temperature) dry programmes have two temperature settings. - Page 11 Tumble drying Programme chart Here we present the energy and time consumption of a few different programmes. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 23 °C...
-
Page 12: Press The Start Button
Tumble drying Press the Start button Drying programme finished Remaining drying time The text Done appears on the display An estimate of the remaining drying time when the programme is finished. will be shown on the display a few minutes after Backlighting the drying programme starts. -
Page 13: Settings
Settings You can carry out the following Child-safe settings You can activate the Child-safe start option to • Audible Volume prevent children from starting the machine. • Language 1. Turn the programme selector and choose • Child-safe Child-safe On or Child-safe Off. •... -
Page 14: Care And Cleaning
Care and cleaning Cleaning the lint filter 3. Use your hand or a soft cloth to remove the The lint filter must be cleaned after each load. lint from all sides of the filter. If necessary, 1. Grasp the filter holder handle and pull it use a damp sponge and a small amount of towards you to open the lint filter. -
Page 15: Emptying The Condensed Water Container
Care and cleaning Emptying the condensed water Cleaning the outside of the machine container Clean the outside of the machine and the programme panel with a mild cleaner. Do not use solvents, as these can damage the machine. Do not hose down or spray the machine with water. -
Page 16: Cleaning The Condenser
Care and cleaning Cleaning the condenser The condenser should be cleaned at least three NOTE! times a year. If you have pets, the condenser must be cleaned more frequently. Do not clean the condenser in a dishwasher. 1. Turn off the tumble dryer with the main power 5. -
Page 17: Troubleshooting
Troubleshooting The machine will not start Drying takes too long Check • Check that the lint filter is not blocked. See • that the door is properly closed. the Care and cleaning chapter. • that the main power switch is on. •... -
Page 18: Technical Information
Technical information Technical data Height: 845 mm Width: 595 mm Depth: 585 mm Weight (net): 44 kg Cylinder volume: 112 l Max. drying capacity: 7 kg Speed: 50-55 rpm Rated power: See type plate. Drum material: Stainless steel Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel. -
Page 19: Service
Service Before contacting the service division See the Troubleshooting and Care and cleaning chapters to see whether you can rectify the problem. If you need to contact the service division, make sure that you know the model designation, type designation and serial number. -
Page 20: Installation
Installation Positioning the tumble dryer How to assemble the stack: The tumble dryer can be free-standing or 1. Remove the two tip guards from the back of in a stack. Remember that the tumble dryer the tumble dryer. Replace the screws that produces heat and should therefore not be held the tip guards in place. - Page 21 Installation 4. Attach the plastic cups for fixing the tumble 7. Push the tumble dryer in under the metal dryer’s front feet to the washing machine’s brackets. At the same time keep the front top cover. This is essential, as only when the edge raised by 10 mm to 20 mm.
-
Page 22: Condensed Water
Installation Condensed water Electrical installation The machine is supplied as shown in Option 1 If the machine is delivered from the factory (inset). This means that the condensed water with a plug attached it can be connected to an is pumped into the condensed water container, earthed wall socket. -
Page 23: Door Hanging
Door hanging 1. Hinge pins (top and bottom) 4. Locking hook 2. Cover plate 5. Hinges (left + right side) 3. Plastic plugs (on the upper and lower edges) 6. Plinth... -
Page 24: Follow These Instructions
Door hanging You can choose whether the door is hung on the 7. Switch the catch (magnetic lock) and the right or the left. cover plate. First loosen the screw holding the catch (magnetic lock) in place. Then use Follow these instructions a flat-bladed screwdriver to remove the cover 1. - Page 25 Your notes...
- Page 26 Your notes...
- Page 27 Your notes...
-
Page 28: Quick Guide
QUICK GUIDE TURN ON THE MAIN POWER SWITCH Load the garments. Close the door. SELECT A PROGRAM AND ANY OPTIONS Turn the program selector to the desired program. PRESS THE START BUTTON DRYING PROGRAM FINISHED End appears on the display when the program is finished. Clean the lint filter after each load.
