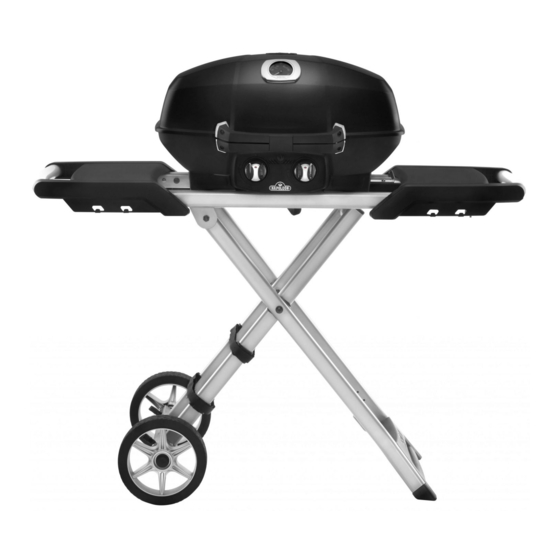

This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
!
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING!
instructions exactly could result in fire,
or explosion which could cause property
damage, personal injury or death.
Adults and especially children should be alerted to the hazards of high surface temperatures.
Notice to Installer: Leave these instructions with the grill owner for future reference.
N415-0437-AU JUN 10.19
N415-0437-AU JUN 10.19.indd 1
building, garage, screened-in porch, gazebo or any other enclosed area.
DANGER
Failure to follow these
Young children should be supervised near the gas grill.
Barrie, Ontario, CANADA L4N 4Y8
grills@napoleonproducts.com
!
Do not try to light this appliance without
reading the "LIGHTING" instructions section
of this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. A ULPG cylinder
not connected for use must not be stored in
the vicinity of this or any other appliance.
If the information in these instructions is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury or death.
Wolf Steel Ltd.
214 Bayview Drive,
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
DO NOT DISCARD
PRO285X
WARNING
IAPMO GMK10548
AS/NZS 5263.1.7
www.napoleon.com
EN
PG.15
6/10/2019 11:23:35 AM

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO285X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Napoleon PRO285X

  • Page 1 APPLY SERIAL NUMBER LABEL FROM CARTON Serial No. XXXXXX000000 MODEL NO. PG.15 DO NOT DISCARD PRO285X DANGER WARNING IF YOU SMELL GAS: Do not try to light this appliance without reading the “LIGHTING” instructions section • Shut off gas to the appliance.
  • Page 2 This grill has been thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON. NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period: Aluminum castings / stainless steel base ..........
  • Page 3: Safe Operating Practices

    Do not use or store flammable materials in or near this appliance. • This grill is not intended for commercial use. • This grill is not intended for and should never be used as a heater. N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 3 6/10/2019 11:23:38 AM...
  • Page 4 In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted. www.napoleon.com N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 4 6/10/2019 11:23:42 AM...
  • Page 5 DIMENSIONS Orifice size Main burner N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 5 6/10/2019 11:23:43 AM...
  • Page 6: Handle With Care

    Review instructions on propane cylinder prior to using. A dented or rusted cylinder may be hazardous. Discard cylinder if rust particles or debris are in the connection area of the propane cylinder. www.napoleon.com N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 6...
  • Page 7 Optional Supply Hose Instructions: An optional hose is available from your Napoleon Dealer that allows the grill to be connected to a 20 lb (9.1 kg) cylinder. A dented or rusted cylinder may be hazardous and should be checked by your propane supplier. Never use a cylinder with a damaged valve.
  • Page 8: Leak Testing Instructions

    Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one STOP recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.
  • Page 9: Lighting Instructions

    5. If lighting the unit with a match, clip the match into the supplied lighting rod. Hold the lit match down through the grill while turning the corresponding burner valve to high. N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 9 6/10/2019 11:23:51 AM...
  • Page 10: Cooking Instructions

    Either trim the fat or reduce temperatures to inhibit this. Should a flare-up occur, move food away from the flames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions. Cleaning Instructions WARNING! Always wear protective gloves and safety glasses when servicing your grill.
  • Page 11: Maintenance Instructions

    Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner.
  • Page 12 WARNING! Hose (optional): Check for abrasions, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer. www.napoleon.com N415-0437-AU JUN 10.19...
  • Page 13: Troubleshooting

    Supply hose is pinched. Reposition supply hose as necessary. surface.) Dirty or clogged orifice. Clean burner orifice. Spider webs or other matter in Clean out venturi tube. venturi tube. N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 13 6/10/2019 11:23:57 AM...
  • Page 14 3. A concise description of the problem (‘broken’ is not sufficient). 4. Proof of purchase (photocopy of the invoice). In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts. Before contacting Napoleon dealer, please note that the following items are not covered by the warranty: •...
  • Page 15 If you have any questions about assembly or grill operation or if there are damaged or missing parts please call our Customer Solutions Department at 1-866-820-8686 between 9 AM and 5 PM (Eastern Standard Time). N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 15 6/10/2019 11:23:59 AM...
  • Page 16 2 x N450-0043 1 x N015-0013 2 x N615-0014 If necessary the axle cap can be tapped with a rubber mallet. www.napoleon.com N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 16 6/10/2019 11:24:03 AM...
  • Page 17 N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 17 6/10/2019 11:24:05 AM...
  • Page 18 N570-0110 (1/4”-20) 10mm www.napoleon.com N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 18 6/10/2019 11:24:08 AM...
  • Page 19 CAUTION! Ensure drip pan is empty and clean before transporting grill in vertical position. N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 19 6/10/2019 11:24:11 AM...
  • Page 20 N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 20 6/10/2019 11:24:14 AM...
  • Page 21 Remove screws. Attach bracket and retighten screws. Repeat process to attach bracket on the other side. N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 21 6/10/2019 11:24:16 AM...
  • Page 22 =20lb www.napoleon.com N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 22 6/10/2019 11:24:19 AM...
  • Page 23 N305-0088-BK2FL cooking grid right N735-0018 washer leg pivot N720-0067-SS1SG tube cart side N272-0001 foot scissor cart N325-0084 handle scissor cart foot N200-0107 dust cover regulator N010-0806-SS1SG cart wheel side N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 23 6/10/2019 11:24:19 AM...
  • Page 24 1/4-20 N640-0003 strap propane tank N530-0055-SER bracket, regulator N080-0438-BK1SG left cart bracket N080-0439-BK1SG right cart bracket 66011 hose, connection 56080 griddle 61288 cover x - standard ac - accessory www.napoleon.com N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 24 6/10/2019 11:24:19 AM...
  • Page 25 N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 25 6/10/2019 11:24:20 AM...
  • Page 26 N415-0437-AU JUN 10.19 N415-0437-AU JUN 10.19.indd 26 6/10/2019 11:24:21 AM...
  • Page 27 N415-0437-AU JUN 10.19 www.napoleon.com N415-0437-AU JUN 10.19.indd 27 6/10/2019 11:24:21 AM...
  • Page 28 Napoleon products are protected by one or more U.S. and Canadian and/or foreign patents or patents pending. N415-0437-AU N415-0437-AU JUN 10.19.indd 28 6/10/2019 11:24:21 AM...
