Abexo SH230LUX User Instructions

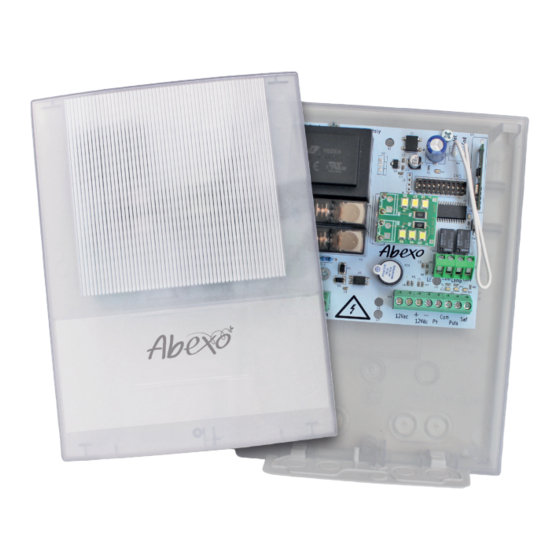

CONTROL UNIT FOR ROLLER SHUTTERS
WITH INTEGRATED COURTESY LIGHT
SH230LUX
APE-528/1230
USER INSTRUCTIONS
WARNINGS FOR INSTALLER - GENERAL SAFETY RULES
1. Read the instructions carefully before proceeding with the installation
of the control unit.
2. Keep these instructions for any future reference.
3. This product is designed and manufactured exclusively for the use
intended and indicated in this documentation. Any other use not
expressly indicated could impair the integrity of the product and/or
represent a source of danger.
4. For the safety, you must carefully follow the instructions provided in
this manual. Incorrect installation or incorrect use of the product may
cause serious personal injury.
5. Materials used for packaging should not be left within the reach
of children, as they are potential sources of danger, and should be
properly disposed of.
6. AB Tecno Srl disclaims all liability for any consequences resulting
from improper use or use other than that for which the device was
designed and constructed.
7. AB Tecno Srl is not responsible for non-compliance with applicable
EC standards for motorized locks, as well as any deformation that may
arise in use.
8. Do not install the equipment in an explosive atmosphere: the
presence of gas or inflammable fumes constitutes a serious source of
safety hazard.
9. Installation must be effected in accordance with EN 12453 and EN
12445. For non-EEC countries, in order to achieve a sufficient level
of safety the above standards must be observed in addition to the
individual national regulatory references.
10. Before working on the system, disconnect any batteries and
disconnect the power supply.
11. It is advisable to provide for the presence of an omnipolar switch with
contact opening distance equal to or greater than 3 mm on the mains
power supply of the automation. We recommend the use of a circuit
breaker of 6A with an omnipolar breaker.
12. Check that there is a differential circuit breaker upstream of the
system. With a 0.03A threshold.
13. Check that the grounding system is properly made, and connect the
metal parts of the enclosure to it.
14. Even automations that have an internal safety anti-crushing function
requires functional check in all cases in compliance with the standards
indicated in Section 9.
ABEXO è un marchio registrato di proprietà di ABEXO is a registered trademark owned by
Technical data
- Power supply 230Vac +/-10%
- Motor power 1350W (1HP)
- Working time: adjustable from 0.5 min to 2 min.
- Pause time: adjustable till max 3 min.
- Courtesy light time: adjustable to max 3 min.
- Safety edge input: 8k2 ohm or NC contact
- Courtesy light output: 12 V
- Flashing light output: 12 V
- Code combination: 72 million
- Number of transmitters: 25
- Radio code programming: self-learning
- Frequency: 433.92 Mhz
- Sensitivity: greater than -100dbm
- Antenna: built-in
- Operating temperature: -10°C, +70°C
- Application range: standard 50 mt - man present 10 mt
15. Safety devices (EN 12978 standard) enable the protection of any
hazard areas from mechanical Risks related to movement, such as
crushing, conveying, shearing and lifting.
16. For each installation, we suggest using at least one signaling light (ex.
flashing lights), as well as a warning sign properly f xed and clearly
visible.
17. AB Tecno Srl disclaims any responsibility related to the safety and
proper operation of the automation.
18. The installer must provide the final user with all information regarding
manual operation of the automation in case of emergency.
19. During operation, do not allow children or others to stand near the
system during operation.
20. Keep out of the reach of children any remote control or device to
prevent the possible unwanted operation of the automation.
21. The transit of people and vehicles is permitted only and exclusively
when the automation is fully opened.
22. The User of the automation must refrain from any attempt to repair
and/or direct intervention and refer exclusively to qualified personnel.
Otherwise, AB Tecno Srl declines all responsibility for any possible
consequences.
23. Anything not expressly indicated in these instructions is not allowed.
DECLARATION OF EU CONFORMITY
Product: SH230LUX
Manufacturer: AB TECNO S.r.L. - Via Cicogna, 95 - 40068 San Lazzaro di Savena (BO)
The Manufacturer declares under its own responsibility that the product covered
by the declaration meets all the provisions applicable in the following Directives:
2014/35/EU - on the harmonization of the laws of the Member States relating
to the making available on the market of electrical equipment intended for use
within certain voltage limits.
2014/30/EU - for the harmonization of the laws of the Member States relating
to electromagnetic compatibility and complies with the relevant harmonization
legislation of the Union: CEI EN 60947-1: 2008/A1: 2012/A2: 2015, CEI EN 60947-
5-1: 2005/A1: 2010.
Bologna, 15/10/2021
1
AUTOMATION ACCESSORIES
ABTECNO srl - Via Cicogna 95
40068 San Lazzaro di Savena (BO)
info@abtecno.com
www.abexo.tech
Code: AB9-00013 - rev.0 of 11/2021
AB TECNO's CEO
Ulisse Pagani
