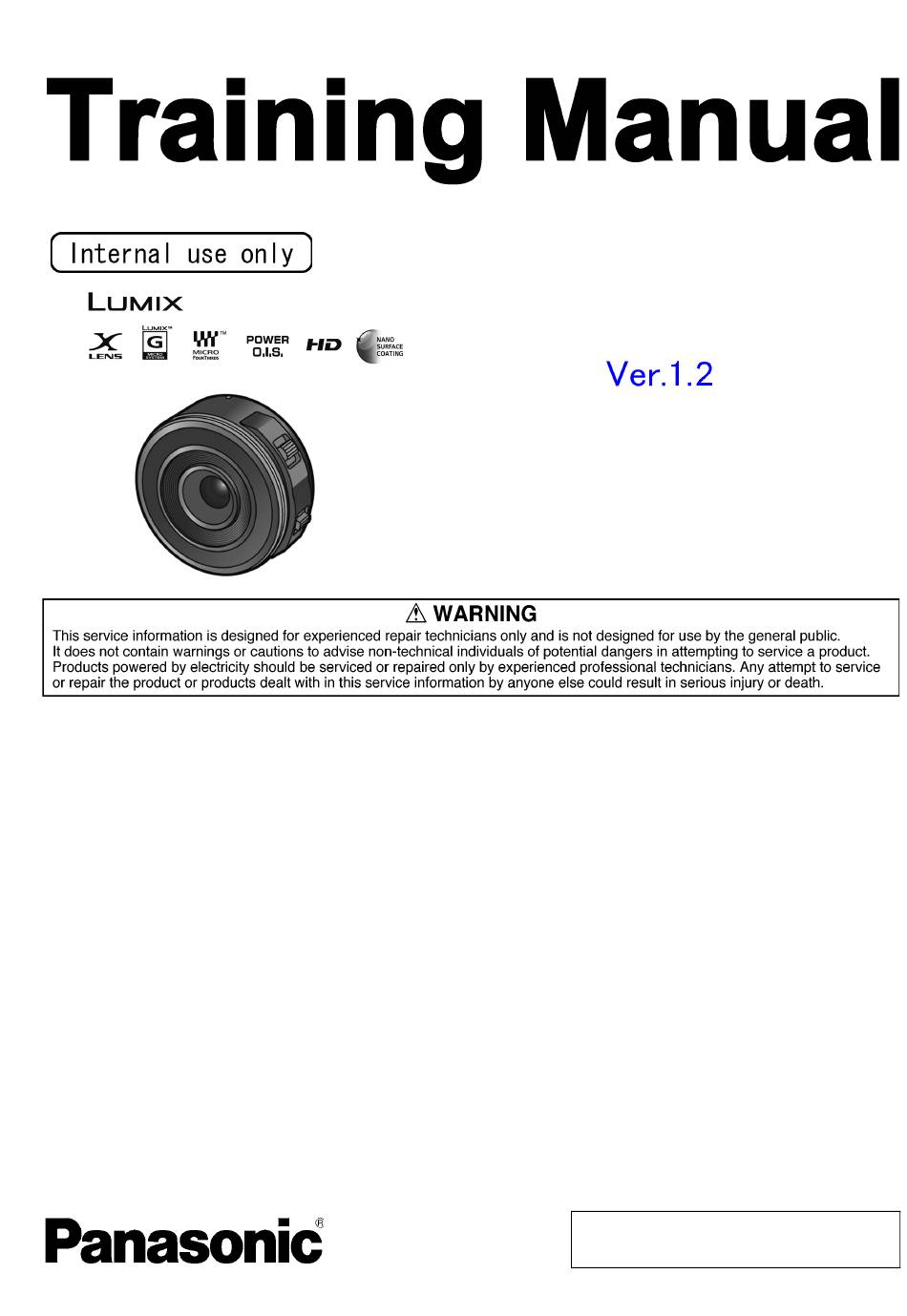

Panasonic H-PS14042PP Training Manual

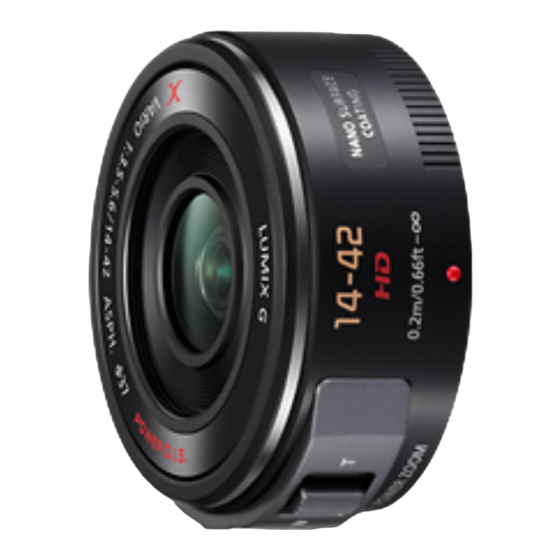

Interchangeable lens for digital camera
Hide thumbs Also See for H-PS14042PP:
Table of Contents

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Introduction -------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Operating Instructions------------------------------------------ 3
3.1. Before Use -------------------------------------------------- 3
3.2. Cautions For Use ------------------------------------------ 4
3.3. Components ------------------------------------------------ 5
4 Service Fixture & Tools----------------------------------------- 7
4.1. Service Fixture and Tools-------------------------------- 7
4.2. Clean Box --------------------------------------------------- 7
5 Maintenance-------------------------------------------------------- 8
5.1. Notice in external cleaning ------------------------------ 8
6.1. Removal of the FRONT RING-------------------------- 9
6.4. Removal of the L MOUNT UNIT ---------------------- 11
6.5. Removal of the LENS PCB UNIT--------------------- 11
Interchangeable Lens for Digital Camera
Model No.
Colour
(S)...........Silver Type
(K)...........Black Type
(W)...........White Type
PAGE
UNIT--------------------------------------------------------- 15
7 Adjustment-------------------------------------------------------- 19
7.1. Preparation for adjustment ---------------------------- 19
7.2. Main menu ------------------------------------------------- 19
7.3. OIS adjustment ------------------------------------------- 20
7.4. Gyro DC offset adjustment ---------------------------- 20
7.5. Zoom PI adjustment ------------------------------------- 21
7.6. Zoom lever adjustment --------------------------------- 21
7.7. ZoomTracking Adjustment ----------------------------- 22
7.8. Write the serial number--------------------------------- 22
8.1. Frame & Casing Section ------------------------------- 24
9 Replacement Parts List --------------------------------------- 26
10 Revision History------------------------------------------------- 27
H-PS14042PP
H-PS14042E
H-PS14042GK
© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-PS14042PP and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic H-PS14042PP

Summary of Contents for Panasonic H-PS14042PP

  • Page 1: Table Of Contents

    6.8. Removal of the CAM BARREL UNIT ----------------14 9.1. Mechanical Replacement Parts List----------------- 26 6.9. Removal of the 2nd LENS FRAME UNIT ----------15 10 Revision History------------------------------------------------- 27 © Panasonic Corporation 2012 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Introduction

    1 Introduction This manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. 2 Specifications...

  • Page 3: Operating Instructions

    3 Operating Instructions 3.1. Before Use...

  • Page 4: Cautions For Use

    3.2. Cautions For Use...

  • Page 5: Components

    3.3. Components 3.3.1. Accessories...
  • Page 6 3.3.2. Attaching/Detaching the Lens...

  • Page 7: Service Fixture & Tools

    4 Service Fixture & Tools 4.1. Service Fixture and Tools The following Service Fixture and Tools are used for checking and servicing this unit. 4.2. Clean Box • The repair quality is considered, and it is recommended working in the environment of satisfied clean level less than class 10,000 (Federal Standard 209D).

  • Page 8: Maintenance

    5 Maintenance 5.1. Notice in external cleaning 5.1.1. Dust / Dirt on the outer casing part (s) 1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush. 2. Wipe up fingerprint and/or dirt on the Outer casing part with the dry fuzz-free cloth. 5.1.2.

  • Page 9: Disassembly And Assembly Instructions

    6 Disassembly and Assembly Instructions 6.1. Removal of the FRONT RING Lift up the FRONT RING by using a small flat blade screw driver or similar tool and remove. (Figure 6.1-1.) It's held in place by doublesided tape and it's recommended to replace with a brand new one whenever it's removed. NOTE: When assembling Meet concave of the FRONT RING and convex as shown below.

  • Page 10: Removal Of The Decoration Ring

    6.2. Removal of the DECORATION RING Lift up the DECORATION RING by using a small flat blade screw driver or similar tool and remove. (Figure 6.2.-1.). It's held in place by doublesided tape and it's recommended to replace with a brand new one whenever it's removed. 6.3.

  • Page 11: Removal Of The L Mount Unit

    6.4. Removal of the L MOUNT UNIT Remove a screw (B) and 3 screws (C), then remove the L MOUNT UNIT. (Figure 6.4.-1, 6.4.-2) NOTE: When assembling Each number means tightening order. Tightening torque for (B) is 8.0 ±1.0 N•cm. and (C) is 20 ±1.2 N•cm. 6.5.

  • Page 12: Removal Of The 5Th Lens Frame Unit

    6.6. Removal of the 5th LENS FRAME UNIT Disconnect a connector and remove 3 screws (D) as shown Figure 6.6.-1, then lift up the 5th LENS FRAME UNIT. NOTE: When assembling 1. Hook 2 tabs of the flexible cable as shown Figure 6.6.-2 and install the 5th LENS FRAM UNIT. 2.

  • Page 13: Removal Of The 1St Lens Frame Unit

    6.7. Removal of the 1st LENS FRAME UNIT Turn the CAM BARREL UNIT clockwise as shown Figure 6.7.-1 and lift up the 1st LENS FRAME UNIT. NOTE: When assembling Install the 1st LENS FRAM UNIT so that the phase mark is set as shown figure 6.7.-2.

  • Page 14: Removal Of The Cam Barrel Unit

    6.8. Removal of the CAM BARREL UNIT Turn the CAM BARREL UNIT counterclockwise as shown Figure 6.8.-1 and lift up until it is separated from the 1st LENS FRAME UNIT. NOTE: When assembling 1. Apply the grease(VFK1298A) to all inside grooves(X) and gear of the CAM BARREL UNIT, then spread it out with a brush as shown Figure 6.8.-2.

  • Page 15: Removal Of The 2Nd Lens Frame Unit

    6.9. Removal of the 2nd LENS FRAME UNIT Lift up the 2nd LENS FRAME UNIT. (Figure 6.9.-1) NOTE: When assembling Install the 2nd LENS FRAME UNIT as shown Figure 6.9.-2. 6.10. Removal of the 1st DECORATION RING UNIT At first, heat 1st LENS FRAME UNIT with 1st DECORATION RING UNIT by a dryer. (Figure 6.10.-1) Then, push 3 marked area by a screw driver etc.

  • Page 16: Removal Of The Zoom/Mf Lever Unit

    6.11. Removal of the ZOOM/MF LEVER UNIT 1. Unlock the tab in the direction of the arrow and remove the LEVER COVER. (Figure 6.11.-1) 2. Remove 4 screws (E) and then remove the ZOOM/MF LEVER UNIT. (Figure 6.11.-2) NOTE: When assembling Each number means tightening order.

  • Page 17: Removal Of The Zoom Motor Unit

    6.12. Removal of the ZOOM MOTOR UNIT Disconnect the connector and remove 2 screws (F), then remove the ZOOM MOTOR UNIT. (Figure 6.12.-1,Figure 6.12.-2) NOTE: When assembling Each number means tightening order. Tightening torque for (F) is 6 ±1.0 N•cm.

  • Page 18: Removal Of The Focus Motor Unit

    6.13. Removal of the FOCUS MOTOR UNIT 1. Remove a screw (G) and 2 screws (H), then remove the FOCUS MOTOR UNIT. (Figure 6.13.-1, 6.1.-2) NOTE: When assembling 1. Tightening torque for (F) is 6 ±1.0 N•cm 2. Apply the grease(RFKZ0472) to the FOCUS MOTOR shaft(X) with a brush as shown Figure 6.13.-3. 3.

  • Page 19: Adjustment

    7 Adjustment Please adjust when a part of ref. No. of 4-13 and 16 was exchanged, It adjusts lens by communicating with the lens via the camera body. 7.1. Preparation for adjustment Install lens to reference body G1 or G2 Install adjustment software to PC 7.2.

  • Page 20: Ois Adjustment

    7.3. OIS adjustment Please adjust by follow screen instruction. ① Displays the adjustment instructions. ② Progress and statues is displayed. ③ Current adjustment status is displayed. ④ Please click adjustments when ready. Automatic adjustment will begin. Please watch the ② area. ⑤...

  • Page 21: Zoom Pi Adjustment

    7.5. Zoom PI adjustment Adjustment is 2 steps. Please adjust by follow screen instruction. ① Displays the adjustment instructions. ② Progress and statues is displayed. ③ Current adjustment status is displayed. ④ Please click "Execute1" when ready. Automatic adjustment will begin. Please watch the ② area. ⑤...

  • Page 22: Zoomtracking Adjustment

    7.7. ZoomTracking Adjustment The best focus position of 9 places from "Tele edge" to "Wide edge" are gotten. 7.7.1. Preparation • Mode Dial: A • AF mode: AFS • Meterring mode: Spot(Center) • AF Area frame size: normal(Center) • Compensating the Exposure: Open •...

  • Page 23: Standard Inspection After Adjustment

    5. Shoot. (Don’t shake camera.) CIPA(Camera and Imaging Products Association) provide test software (actually made by Olympus).This is unofficial for Panasonic. But it is useful tool.We cannot provide directly. Please access below URL and get “ HyResACE ” software. Read the manual and make use of it.

  • Page 24: Exploded View And Replacement Parts List

    8 Exploded View and Replacement Parts List 8.1. Frame & Casing Section...

  • Page 25: Packing Parts & Accessories Section

    8.2. Packing Parts & Accessories Section...

  • Page 26: Replacement Parts List

    9 Replacement Parts List 9.1. Mechanical Replacement Parts List 9.1.1. Frame & Casing Section Parts List 9.1.2. Packing Parts & Accessories Section Parts List Safety Ref. Part No. Remarks Part Name & Description Safety Ref. Part No. Part Name & Remarks VGH5246 DECORATION RING UNIT...

  • Page 27: Revision History

    10 Revision History Ver. Date History 2012.12.10 Original Release 2013.06.25 Title Change and Error Correction 2014.10.31 Parts addition for (-W)
