Application Description - SymCom 777 Installation Instructions Manual

Trip Class
Small fractional horsepower motors where acceleration times are almost
5
instantaneous or where extremely quick trip times are required
(
Fast Trip) Hermetic refrigerant motors, compressors, submersible
10
pumps and general-purpose motors that reach rated speed in less than 4
seconds.
15
Specialized applications.
(Standard Trip) Most NEMA-rated general-purpose motors will be
20
protected by this setting.
(Slow Trip) Motors with long acceleration times (>10 seconds) or high
30
inertia loads.
Programming any of the trip classes with the J prefix will enable jam
protection. This additional protection is enabled 1 minute after the motor
J Prefix
starts and provides a 2 second trip time for motors exceeding 400% of
the OC setting, regardless of trip class.

Application Description

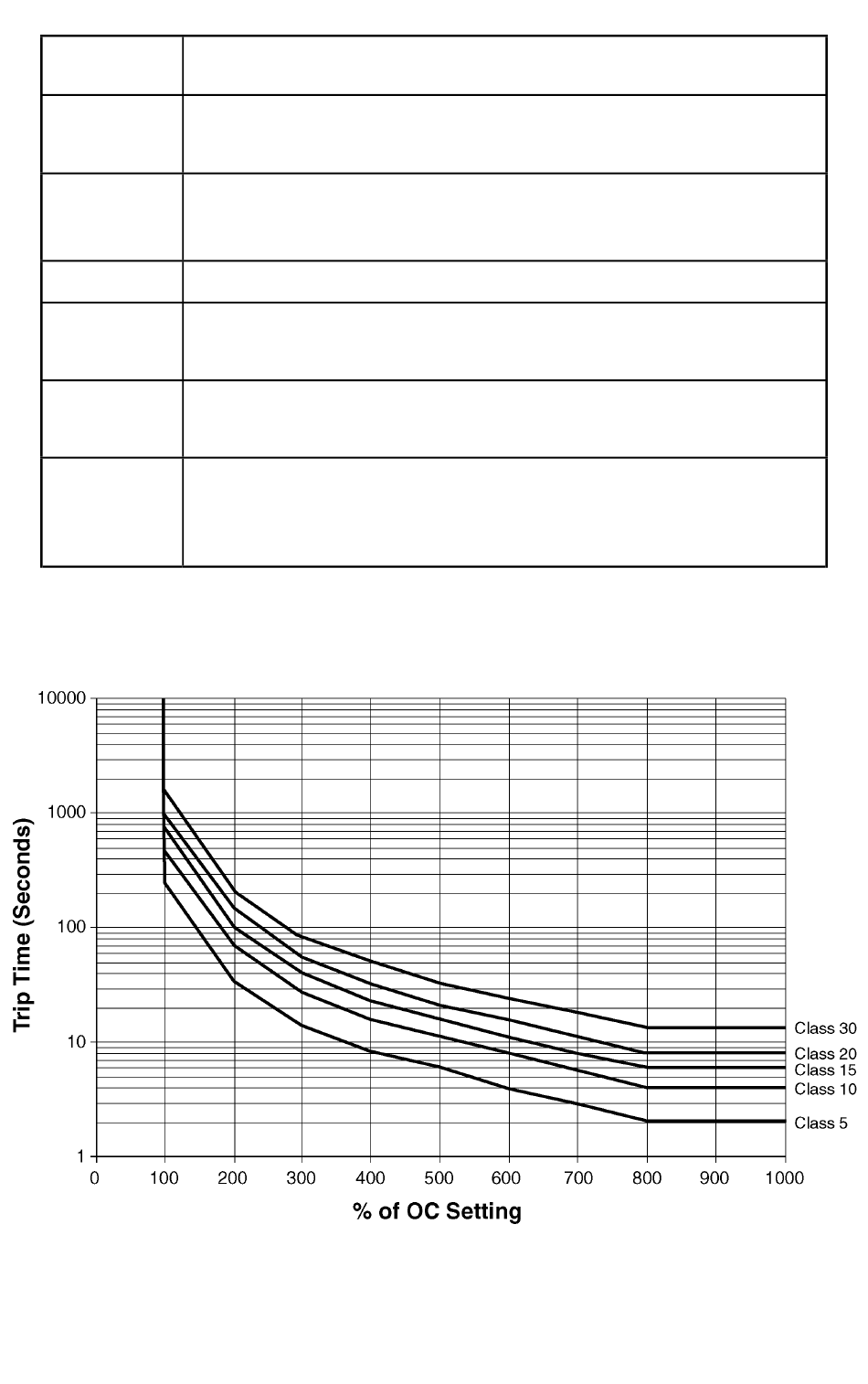

Table 2: Trip Class Descriptions
Figure 4: Overload Trip Curves
- 7 -
1/05
