- Page 1 GS-1105PE Quick Installation Guide 03-2024 / V1.0...
-
Page 2: Table Of Contents
Contents I. Product Information ..........1 Package Content ..............1 Hardware Overview ............. 1 LED Status................2 II. Installation .............. 2 II-1. Physically Setup ..............2 II-2. Connection ................4 III. DIP Switch Definition ..........5 IV. More Information ............ 6 V. -
Page 3: Product Information

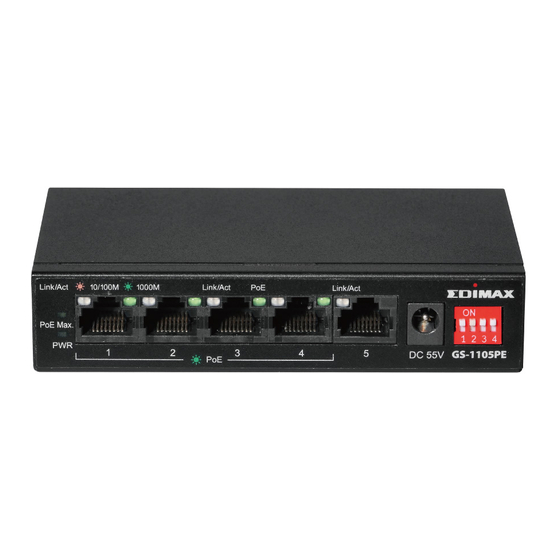

I. Product Information GS-1105PE: Long Range 5-Port Gigabit Switch with 4 PoE+ Ports and DIP Switch I-1 Package Content Quick Installation Power Adapter GS-1105PE Power Cord Guide I-2 Hardware Overview Gigabit PoE+ Port (Port 1-4) Gigabit Port (Port 5) PoE Max. LED... -
Page 4: Led Status
I-3 LED Status Function Color Status Description Power on Green Power off Total PoE power consumed is exceeding PoE power budget PoE Max. Green Total PoE power consumed is under PoE power budget Feeding power to PoE devices Green (1-4 Port) PoE function is not active Link at 1000Mbps Green... - Page 5 2. Wall-mount the switch: You can mount the switch on a wall. The switch is designed with mounting holes. Two sets of wall-mounted screws are required. For wall-mounted installation, please refer to the figure below (this product does not come with wall-mounted installation screws and accessories).
-
Page 6: Ii-2. Connection
II-2. Connection 1. Power on: Connect the power adapter to the switch and the power outlet. Turn on the power switch by clicking the power button. The switch is powered by the 100-240VAC 50/60Hz external power supply. (Note: Make sure the PWR LED is green.) Uplink: Plug the standard Cat5e or above Ethernet cable into the LAN port (Note: Make sure that the LED is green or amber) and connect it to another switch. -
Page 7: Dip Switch Definition
The front panels of PoE+ switch provides four pins DIP Switch. The detailed descriptions are shown in the following table. NOTE: After changing DIP switch status, please restart the GS-1105PE to enable the changes. The power switch is on the back panel of the switch. DIP Switch No. &... -
Page 8: More Information
For more product information, you can find all supporting documents from the link below or via the QR code: https://www.edimax.com/download/ Please search the model name “GS-1105PE” to enter the referred page. Safety Instructions The following general safety guidelines are provided to help ensure your own personal safety and protect your product from potential damage. - Page 9 Edimax Technology Co., Ltd. reserves the right to revise this publication and to make changes from time to time in the contents hereof without the obligation to notify any person of such revision or changes.
- Page 10 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 11 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/30/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/30/EU.
- Page 12 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: 5-port Gigabit Ethernet Switch with 4 PoE ports Model No.: GS-1105PE The following European standards for essential requirements have been followed:...
- Page 13 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the United Kingdom EMC and Safety directives. Equipment: 5-port Gigabit Ethernet Switch with 4 PoE ports Model No.: GS-1105PE The following European standards for essential requirements have been followed: Electromagnetic Compatibility Regulations 2016 (S.I.
