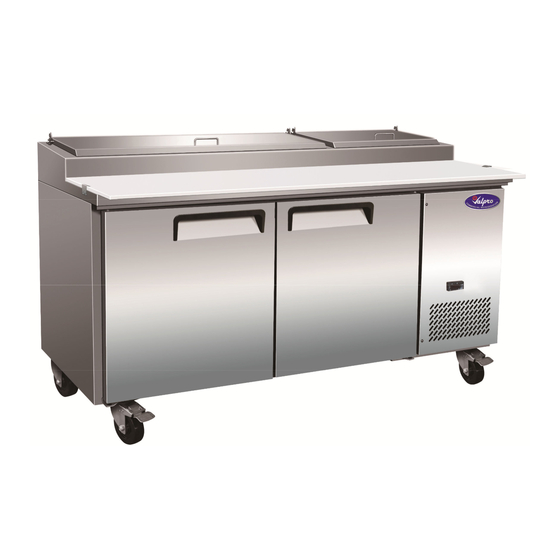

Pizza Prep Tables
Sandwich/Salad Units
Under-counter Refrigerators and Freezers
Worktop Refrigerators and Freezers
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
Advertisement
Related Manuals for VALPRO VP29S-HC
Summary of Contents for VALPRO VP29S-HC

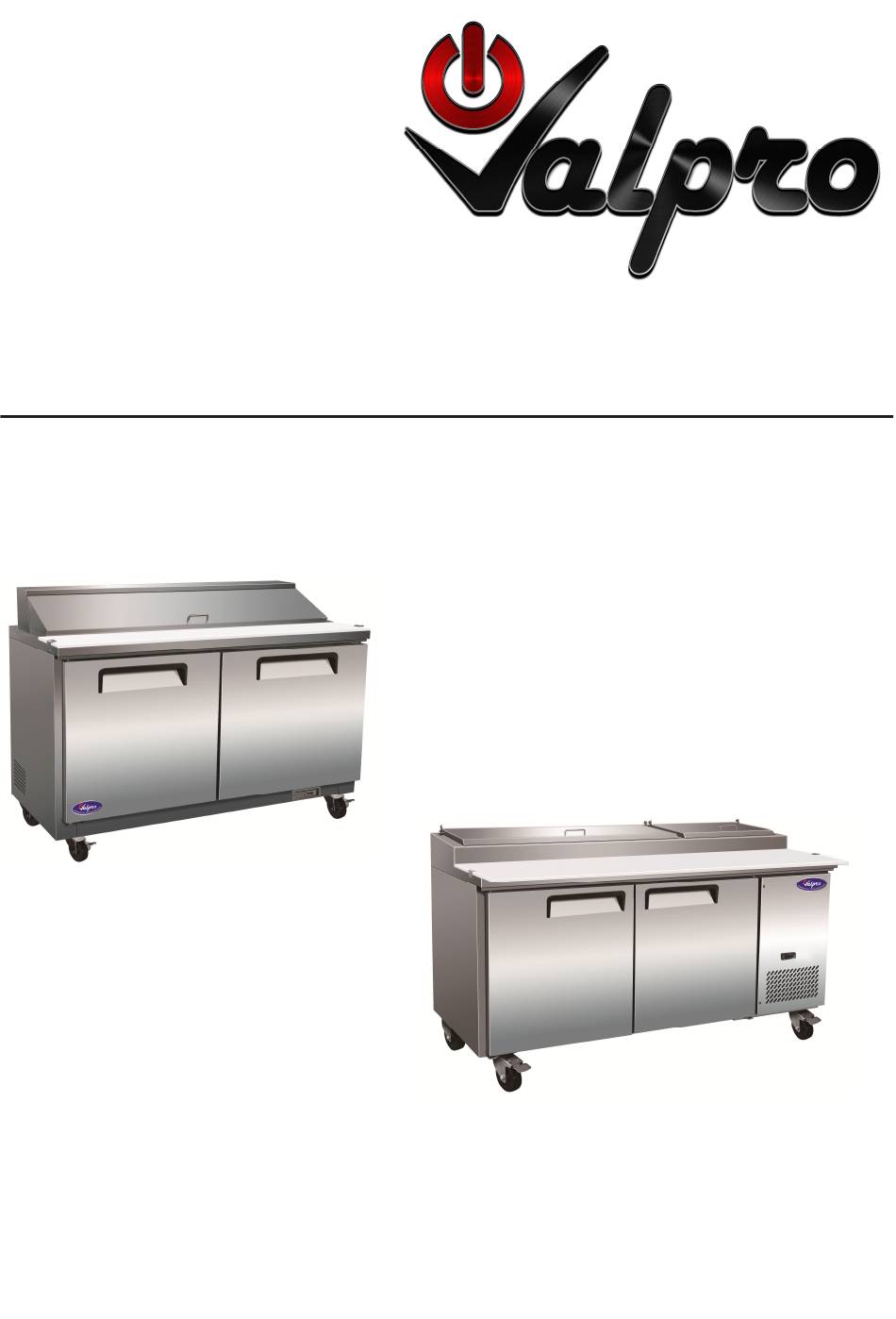

- Page 1 Pizza Prep Tables Sandwich/Salad Units Under-counter Refrigerators and Freezers Worktop Refrigerators and Freezers Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Valpro product manuals and additional product information is available at our website: www.valprorefrigeration.com This is the Safety Alert Symbol.
- Page 3 Carefully. Flammable Refrigerant Used DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors Leave the shelves in place so that children may not easily climb inside. For warranty service, call 1-888-VALPRO-8 / 1-813-502-0300...
-
Page 4: Serial Number Information
This manual covers standard units only. RECEIVING AND INSPECTING THE EQUIPMENT All Valpro Commercial Refrigeration products undergo a rigorous multipoint inspection process prior to packaging and shipping to assure our products are received in perfect condition and working order. Even though our equipment is packaged to prevent damage in transit, if goods have been shipped via 3rd party merchandise must be inspected before accepting shipment. -
Page 5: Specification
Service and Installation Manual SPECIFICATION SANDWICH/SALAD UNITS STORAGE SHELF SHIP CAPACITY CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft Size HP Sq-ft PLUG VP29S-HC 115/60/1 5-15P 1365 3.17 VP48S-HC 115/60/1 5-15P 1365 3.17 VP60S-HC 115/60/1 15.5 5-15P VP72S-HC 1365 3.35... -
Page 6: Installation
The unit must be turned OFF and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER For warranty service, call 1-888-VALPRO-8 / 1-813-502-0300... -
Page 7: Operation
To view the last alarm occurrence; in programming mode, it browses the parameter codes or decreases the display value KEY COMBINATION To lock & unlock the keyboard To enter in programming mode To return to the room temperature display For warranty service, call 1-888-VALPRO-8 / 1-813-502-0300... - Page 8 ⑦ DISPLAY Display set points Display alarm codes. DEFROST ⑧ Start a manual defrost. BUTTON Display a target set point. Select a parameter ⑨ (In programming mode). Confirm an operation (In programming mode). For warranty service, call 1-888-VALPRO-8 / 1-813-502-0300...
- Page 9 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 10: Maintenance
Service and Installation Manual MAINTENANCE The power switch must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 11 If your floor is not level this can also cause drain problems. Be sure all drain lines are free of obstructions because this may cause water to back up and overflow the drain pans. For warranty service, call 1-888-VALPRO-8 / 1-813-502-0300...
-
Page 12: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: VPUCR27 PLUG OVERLOAD DOOR PROTECTOR SWITCH COMPRESSOR CONDENSEN THERMOSTAT DISPLAY POWER CURRENT RELAY STARTING CAPACITOR EVAP ROOM EVAP SENSOR MODEL: VPUCR48/VPUCR60 PLUG OVERLOAD PROTECTOR DOOR SWITCH CONDENSEN COMPRESSOR THERMOSTAT DISPLAY POWER CURRENT RELAY STARTING EVAP CAPACITOR... - Page 13 Service and Installation Manual WIRING DIAGRAM MODEL: VPP47 THERMOSTAT DISPLAY PLUG OVERLOAD PROTECTOR EVAP CIRCUITALION ROOM CONDENSER FAN MOTOR SENSOR FAN MOTOR COMPRESSOR t ℃ PTC STARTER MODEL: VPP71 THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM SENSOR CIRCUITALION CONDENSER COMPRESSOR FAN MOTOR FAN MOTOR CURRENT...
- Page 14 OVERLOAD PLUG PROTECTOR EVAP ROOM SENSOR COMPRESSOR CIRCUITALION CONDENSER FAN MOTOR FAN MOTOR CURRENT RELAY STARTING CAPACITOR MODEL: VP29S-HC/VP29SM-HC THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM CIRCUITALION SENSOR CONDENSER FAN MOTOR FAN MOTOR COMPRESSOR t ℃ PTC STARTER For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 15 Service and Installation Manual WIRING DIAGRAM MODEL: VP48S-HC/VP48SM-HC/VP60S-HC/VP60SM-HC THERMOSTAT DISPLAY PLUG OVERLOAD PROTECTOR EVAP ROOM CONDENSER CIRCUITALION SENSOR FAN MOTOR FAN MOTOR COMPRESSOR t ℃ PTC STARTER MODEL: VP72S-HC/VP72SM-HC THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM CONDENSER CIRCUITALION SENSOR FAN MOTOR FAN MOTOR COMPRESSOR t ℃...
- Page 16 Service and Installation Manual WIRING DIAGRAM MODEL: VPUCF27 PLUG THERMAL OVERLOAD CUT-OFF PROTECTOR DOOR COMPRESSOR CONDENSEN SWITCH POWER THERMOSTAT DISPLAY EVAP CURRENT STARTING RELAY CAPACITOR ROOM EVAP SENSOR MODEL: VPUCF48/VPUCF60 PLUG THERMAL OVERLOAD CUT-OFF PROTECTOR DOOR COMPRESSOR CONDENSEN SWITCH POWER THERMOSTAT DISPLAY CURRENT EVAP...
- Page 17 Service and Installation Manual WIRING DIAGRAM MODEL: VPUCR27 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 18 Service and Installation Manual WIRING DIAGRAM MODEL: VPUCR48/VPUCR60 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 19 Service and Installation Manual WIRING DIAGRAM MODEL: VP29S-HC/VP29SM-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 20 Service and Installation Manual WIRING DIAGRAM MODEL: VP48S-HC/VP48SM-HC/VP60S-HC/VP60SM-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 21 Service and Installation Manual WIRING DIAGRAM MODEL: VP72S-HC/VP72SM-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 22 Service and Installation Manual WIRING DIAGRAM MODEL: VPP47 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 23 Service and Installation Manual WIRING DIAGRAM MODEL: VPP71 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 24 Service and Installation Manual WIRING DIAGRAM MODEL: VPP94 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 25 Service and Installation Manual WIRING DIAGRAM MODEL: VPUCF27 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 26 Service and Installation Manual WIRING DIAGRAM MODEL: VPUCF48/ VPUCF60 For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 28 Valpro Commercial Refrigeration 203 Kelsey Ln., Building G, Tampa Florida 33619 Email: info@valpromail.com http://www.valprorefrigeration.com...
