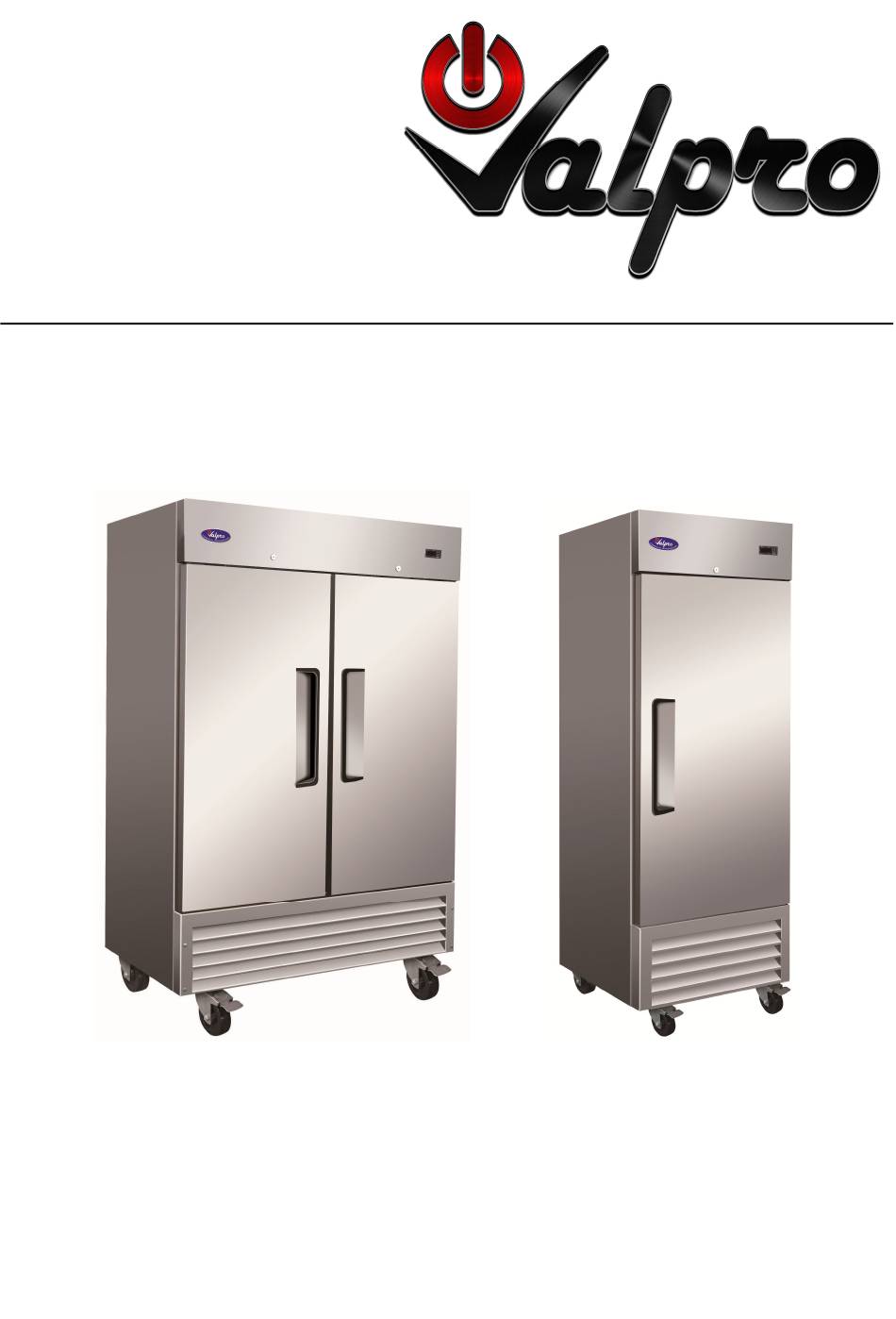

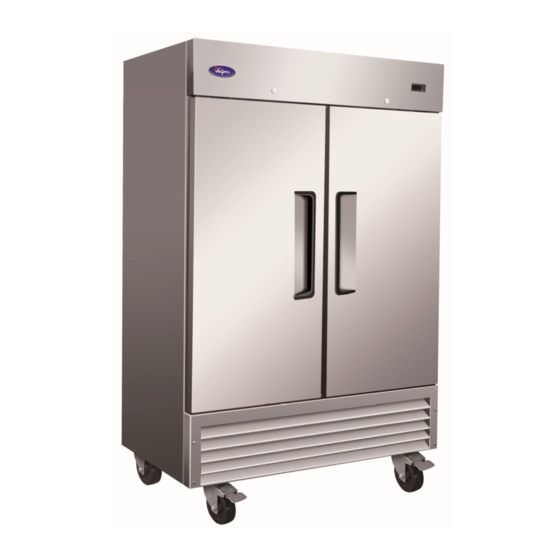

- Page 1 Reach Ins Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Valpro product manuals and additional product information is available at our website: www.valprorefrigeration.com This is the Safety Alert Symbol.
- Page 3 Carefully. Flammable Refrigerant Used DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors Leave the shelves in place so that children may not easily climb inside. For warranty service, call 1-888-VALPRO-8 / 1-813-502-0300...
-
Page 4: Table Of Contents
This manual covers standard units only. RECEIVING AND INSPECTING THE EQUIPMENT All Valpro Commercial Refrigeration products undergo a rigorous multipoint inspection process prior to packaging and shipping to assure our products are received in perfect condition and working order. Even though our equipment is packaged to prevent damage in transit, if goods have been shipped via 3rd party merchandise must be inspected before accepting shipment. -
Page 5: Specifications
Service and Installation Manual SPECIFICATION SOLID DOOR REFRIGERATORS STORAG SHELF SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS CAPACIT Sq-ft PLUG VP19R-HC 1670 2.82 13.0 115/60/1 5-15P 1670 14.0 VP1R-HC 115/60/1 5-15P 2380 VP2R-HC 115/60/1 28.1 5-15P 42.1 3200 5.29... -
Page 6: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 7: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans wilt run continuously even when one or more doors are open. - Page 8 Service and Installation Manual 1.1 Function of LEDS MODE SIGNIFICATO Compressor enabled Flashing Anti-short cycle delay enabled (AC parameter) Defrost in progress Flashing Dripping in progress Fans output enabled Flashing Fans delay after defrost Measurement unit Flashing Programming mode Measurement unit Flashing Programming mode Symbol...
- Page 9 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 10: Maintenance
Service and Installation Manual MAINTENANCE The unit must be turned OFF and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 11 Service and Installation Manual MAINTENANC E Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
-
Page 12: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL ： V P19R-HC MODEL V P1R-HC ： For warranty service, call 1-888-VALPRO8 / 1-813-502-0300... - Page 13 Service and Installation Manual WIRING DIAGRAM MODEL V P2R-HC ： MODEL ： V P3R-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 14 Service and Installation Manual WIRING DIAGRAM MODEL ： V P1RG-HC MODEL V P2RG-HC ： For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 15 Service and Installation Manual WIRING DIAGRAM MODEL ： V P19F-HC MODEL V P1F-HC ： For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 16 Service and Installation Manual WIRING DIAGRAM MODEL ： V P2F-HC MODEL V P3F-HC ： For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 17 Service and Installation Manual WIRING DIAGRAM MODEL: VP1FG-HC MODEL: VP2FG-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 18 Service and Installation Manual WIRING DIAGRAM MODEL: VP19R-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 19 Service and Installation Manual WIRING DIAGRAM MODEL: VP1R-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 20 Service and Installation Manual WIRING DIAGRAM MODEL: VP2R-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 21 Service and Installation Manual WIRING DIAGRAM MODEL: VP3R-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 22 Service and Installation Manual WIRING DIAGRAM MODEL: VP1RG-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 23 Service and Installation Manual WIRING DIAGRAM MODEL: VP2RG-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 24 Service and Installation Manual WIRING DIAGRAM MODEL: VP19F-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 25 Service and Installation Manual WIRING DIAGRAM MODEL: VP1F-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 26 Service and Installation Manual WIRING DIAGRAM MODEL: VP2F-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 27 Service and Installation Manual WIRING DIAGRAM MODEL: VP3FDV-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 28 Service and Installation Manual WIRING DIAGRAM MODEL: VP1FG-HC...
- Page 29 Service and Installation Manual WIRING DIAGRAM MODEL: VP2FG-HC For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 31 Valpro Commercial Refrigeration 203 Kelsey Ln., Building G, Tampa Florida 33619 Email: info@valpromail.com http://www.valprorefrigeration.com...
