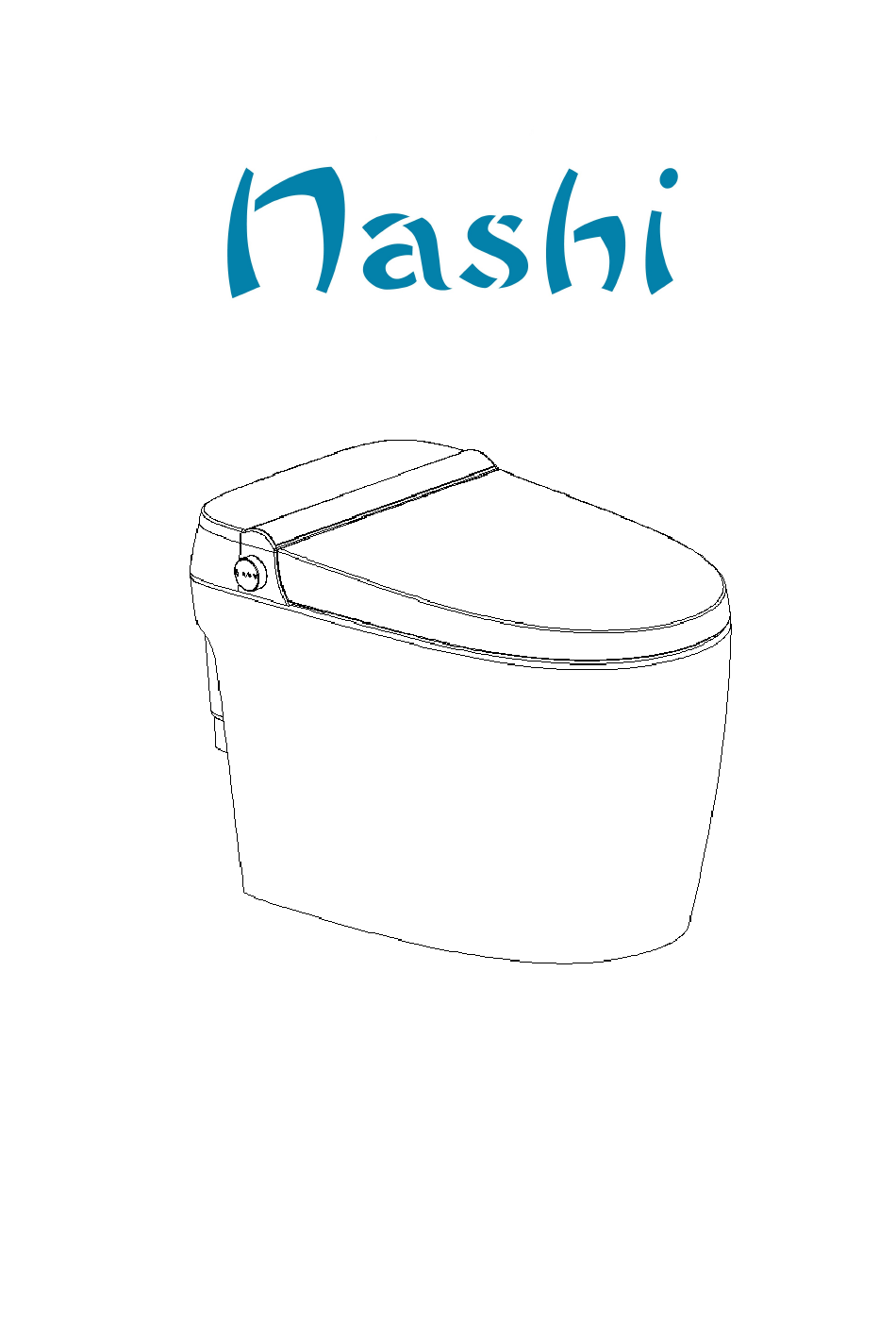

- Page 1 USER GUIDE Nashi Yaiza Plus...
- Page 2 Catalogue Technical specifications--------------------------------1 Detailed product information------------------3 Instruction manual---------------------------------5 Daily maintenance----------------------------------7 Remote control manual-----------------------------------9...
-
Page 3: Technical Specifications
Technical specifications 110V/220V/230V AC Voltage 1030W Standard power 1270W Maximum power Main module Minimum water pressure required 0.07 MPa (flow of 20 L/min). Maximum water Water pressure range pressure 0.8 MPa (hydrostatic pressure) Plug type depending on the country with a cable length of 1.5 m. Power cord Water consumption 200mL... - Page 4 Content list Remote control with mounting screws and tape double-sided adhesive. Send to distance Note: Batteries not included Security issues. Insert two AAA batteries to its operation. Manual of Manual Manual instructions Board Accessory Note, according to request it may include square wrench and hose toilet...
-
Page 5: Detailed Product Information
Detailed product information Power cord Tank Button Pedal button Dryer seat cover spray lance Nozzle Anal washing Seat Night light motherboard Ceramic module Perineal/feminine wash... -
Page 6: Installation Instructions
Installation instructions Connect the hose inlet to valve angle Board Attach the gasket to the drain and adjust it until it is in the proper place. Place glue to glass around, direct the toilet and place it in its corresponding place. - Page 7 Manual Water supply and electrical preparation 2. Plug the plug into the power outlet, press the reset 1.Open the inlet angle valve and check that the screw button. If the indicator light turns on, it means that there is threaded joint is tight; Make sure it is airtight. current (press the leakage current test button;...
- Page 8 Button manual 1. When the seat is not in use, press the button twice to switch the main motor between work mode and energy saving mode. Press and hold the button for 3 seconds to put into standby mode wait for the main engine. Short press the button to return to working mode.
-
Page 9: Module Maintenance
Maintenance Module maintenance 1. Turn off the power. 2. Wipe dirty parts with a dry cloth. 3. Plug it in after cleaning. Nozzle maintenance 1. When the seat is not in use, press the "child wash/self-clean" button on the remote control. The nozzle will eject water, extend and stop ejecting water. - Page 10 Cleaning the mesh filter 1. Unplug and remove the inlet pipe from the back of the toilet. 2. Remove the mesh filter and use a brush to clean it. 3. Reassemble the mesh filter and connect the inlet pipe. Remove the mesh filter.
-
Page 11: Remote Control Manual
Remote control manual... - Page 12 Catalogue 1. Installation preparation………………………………………………………….1 01. Remote control installation………………………………………………………….1 2. Instructions……………………………………………………………………..2 01. Anal washing//Perineal/female washing…………………………………………………2 02. Washing for children / Cleaning the wand………………………………………………………….2 03. Dryer……………………………………………………………………………….2 04. Massage…………………………………………………………..2 05. Nozzle position adjustment………………………………………………..2 06. Unloading the cistern……………………………………………………………………2 07. Water pressure setting………………………………………………..2 08. Night light / Energy saving………………………………………………..3 09.
-
Page 13: Installation Preparation
Installation Preparation Installing the remote control Installing the remote control holder (1) Tear off the paper of the double-sided adhesive tape. Attention: Please install the products on a dry surface (2)Attach the bracket to the wall with the double-sided adhesive tape. (3) Place the remote control on the holder. - Page 14 Instructions - - Anal wash//Perineal/female wash Occupy the seat and press the "Anal Wash//Perineal Wash/Female" button to use the washing function for one cycle and switch to the drying function automatically. If you press the "stop" button in the middle of the cycle, the anal wash// perineal wash/female function will stop and the drying function will not start.
-
Page 15: Night Light
Instructions - - Night light / Energy saving Night light By pressing the "Light/Energy Saving" button, it switches the mode between smart "off/on" modes; he mode changes each time this button is pressed. When you start smart mode, the night light flashes three times and turns off. Automatically turns on or off based on surrounding conditions. - Page 16 Set the time until the lid closes - press and hold the "LID OPENING/CLOSE" button to switch to setting mode. Press and hold the "POSITION" "+" "-" button to set the time until closing Automatic opening/closing function of the Nashi Yaiza Plus model Microwave Technology - Press and hold the "SEAT OPENING" button to switch to setting mode.
