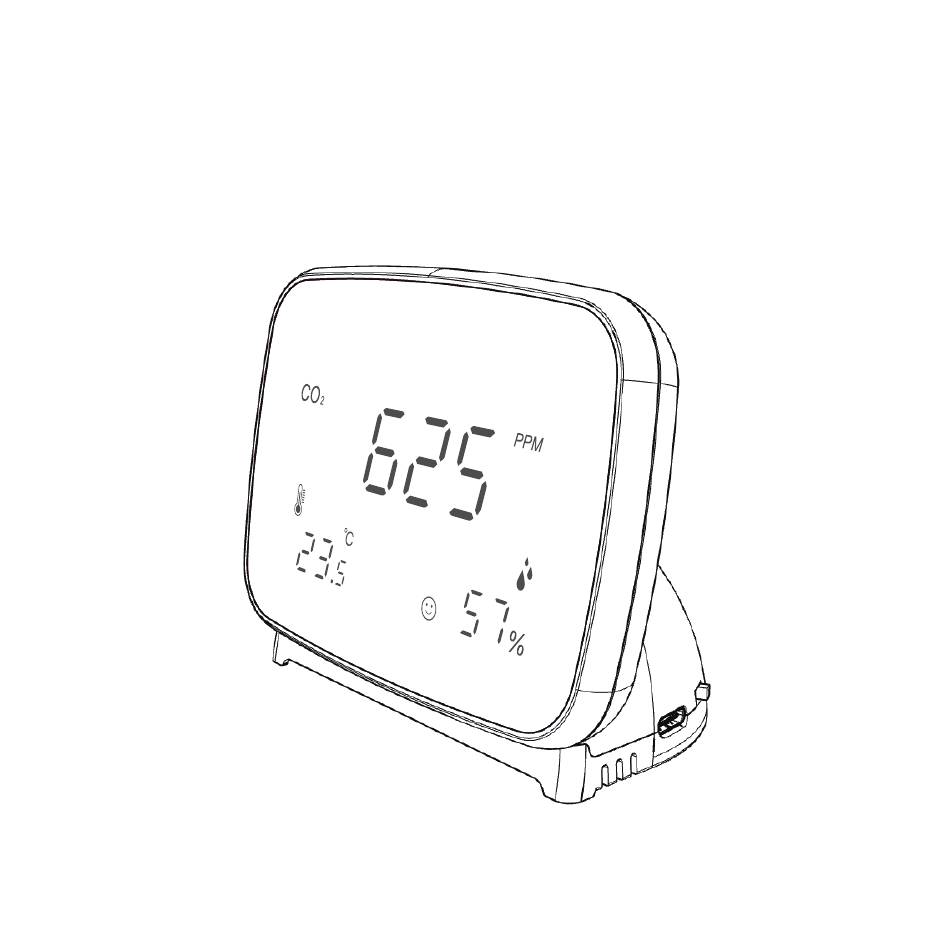

- Page 1 Instruction Manual Model: SA1100P...
- Page 2 This manual and its content inevitably contain errors or discrepancies from reality, and are for reference only. If there are discrepancies or doubts, please contact our company. The functions and specifications are subject to change without prior notice. contact us Web: www.shiantech.com Tell：86-10-89498895 E-mail：shian@shiantech.com...
-
Page 3: Packing List

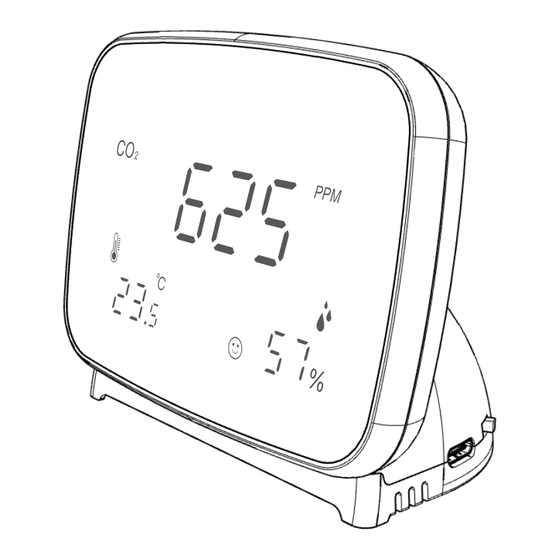

Welcome 1. Function This product can monitor CO2 concentration, temperature and humidity in real time, and provide smiley LED indication and sound alarm function according to CO2 concentration. 2. Packing list CO2 monitor X 1 Plug X 1 ( optional ) USB Cable X 1 Manual X 1... - Page 4 Instruction CO2 indication Temperature indication Indicator light Humidity indication (Red/Yellow/Green)
- Page 5 Dimmer sensor The dimmer sensor adjust the backlight to the environment automatically. This makes us comfortable and save energy. Button (a) One button to awake. See detail in (b) One button to Mute. See detail in (c) One button to calibration. See detail in Buzzer position Type-C power port...
-
Page 6: On/Off Switch
ON/OFF switch 1. Connect the USB power cable ( position 2. Turn on the switch ( position ). At this time, the buzzer rings and the display is on. When the lightness is dark, the display will be off automatic in 10 minutes, press the button ( position ) to awake the monitor. - Page 7 Alarm (a) Smiley - LED indication Red light : CO2 >1200ppm The CO2 concentration is over 1200ppm, the red indicator lights up. Rellow light : 800ppm < CO2 < 1200ppm The CO2 concentration is between 800ppm and 1200ppm the yellow indicator lights up. Green light : CO2 <...
- Page 8 Calibration Before calibration, run the device for at least 20 minutes with windows open or in outdoor environment with portable battery source to reach an atmosphere with 400 ppm CO2, wait until CO2 reading is stable, following below steps for calibration, after calibration leave it 10 minutes before normal use.
-
Page 9: Specifications
Specifications Measuringe range (0-5000)ppm 1ppm (0-1000); 5ppm (1000-2000); Display resolution 10ppm (>2000) (0~3000)ppm: ± 50ppm ± 5% of reading (take the Maximum), Accuracy (＞3000)ppm: ± 7% of reading Repeatability 20ppm at 400ppm ±0.1% of reading per ℃ Temp compensation ＜2 min for 63% of step change or ＜... - Page 10 5~95% Measuring range ±5% Accuracy 1% Main interface display， Display resolution 1% Max/Min display Operating Temperature 32°F ~ 122°F (0°C ~ 50°C) Storage Temperature -4°F ~ 140°F (-20°C ~ 60°C) Operating & storage RH 0-95%(non-condensing) Operating Voltage DC(5±0.25)V 110*66*84mm Dimension Weight 133g Typical test conditions: Ambient Temp: 23 3°C, RH=50%~70%,...
