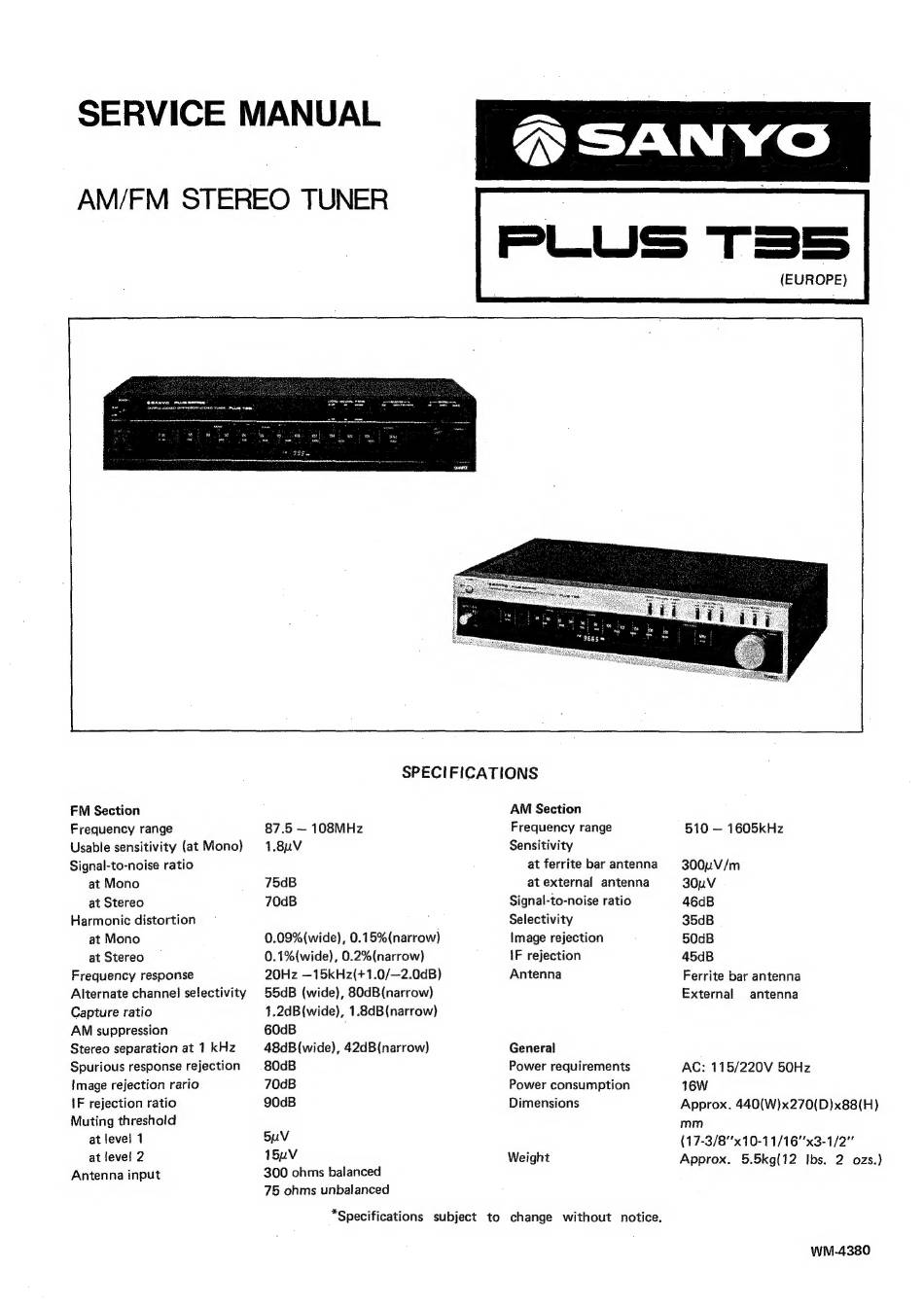

Sanyo PLUS T35 Service Manual

SERVICE MANUAL
AM/FM STEREO TUNER
PLUS TS5
(EUROPE)
FM Section
Frequency range
Usable sensitivity (at Mono)
Signal-to-noise ratio
at Mono
at Stereo
Harmonic distortion
at Mono
at Stereo
Frequency response
Alternate channel selectivity
Capture ratio
AM suppression
Stereo separation at 1 kHz
Spurious response rejection
Image rejection rario
IF rejection ratio
Muting threshold
at level 1
at level 2
Antenna input
SPECIFICATIONS
AM Section
87.5 — 108MHz Frequency range
1,.8uV Sensitivity
at ferrite bar antenna
75dB at external antenna
70dB Signal-to-noise ratio
0.09%(wide), 0.15% (narrow)
0.1%(wide), 0.2%(narrow)
20Hz —15kHz(+1.0/—2.0dB)
55dB (wide), 80dB(narrow)
1.2dB(wide), 1.8dB(narrow)
60dB
48dB (wide), 42dB(narrow)
80dB
70dB
90dB
5uV
15uV
300 ohms balanced
75 ohms unbalanced
*Specifications subject to change without notice.
Selectivity
Image rejection
IF rejection
Antenna
General
Power requirements
Power consumption
Dimensions
Weight
510 — 1605kHz
300uV/m
30uV
46dB
35dB
50dB
45dB
Ferrite bar antenna
External antenna
AC: 115/220V 50Hz
16W
Approx. 440(W)x270(D)x88(H)
mm
(17-3/8x10-11/16"x3-1/2"
Approx. 5.5kg(12 Ibs. 2 ozs.)
WM-4380
