Sanyo JT 277 Service Manual

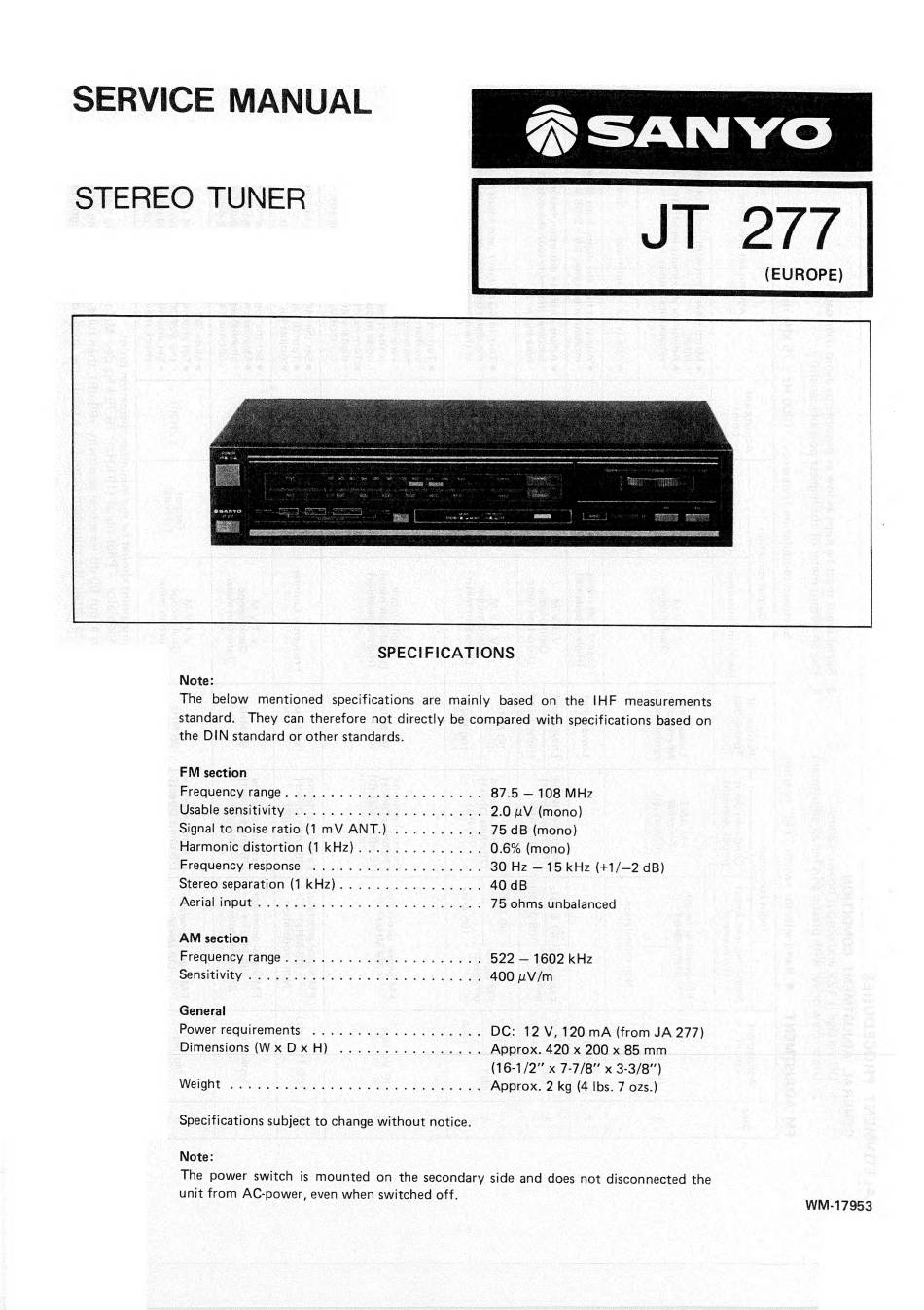

SERVICE MANUAL
(EUROPE) :
SPECIFICATIONS
Note:
FM section
-Prequency. range: 06 le See ee 87.5 — 108 MHz
Usable sensitivity: ©. 0. ee ee eee 2.0 nV (mono)
Signal to noise ratio (I mV ANT.) .......... 75 dB (mono)
_ Harmonic distortion (1 kHz).............. 0.6% (mono)
— Brequency response 22.0 os eee 30 Hz — 15 kHz (+1/—2 dB)
Stereo separation (1 kHz)................ 40 dB
APraL INDO eo ee Sel oe ane a baler gen 75 ohms unbalanced
AM section —
Frequency range: 22 ieee hee 522 — 1602 kHz
Sensitivityes 0 ee eee eS 400 uV/m
General / ? 7
Power requirements:
ooo ee oe ees
DC: 12 V,120 mA (from JA 277)
Dimensions (Wex: Dox H) oo eee es Approx. 420 x 200 x 85 mm
:
: ae
(16-1/2" x 7-7/8" x 3-3/8")
Weight. ob
e a t s ca lebdna
eck: abe Approx. 2 kg (4 Ibs. 7 ozs.)
Specifications subject to change without notice.
Note:
