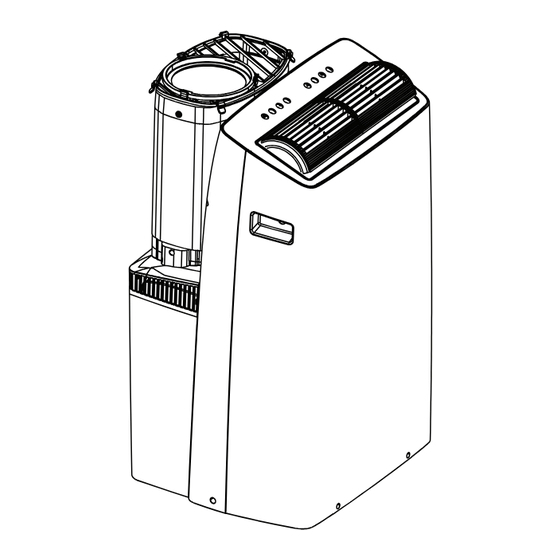

Duo portable air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
en
USER MANUAL
Duo Portable
Air Conditioner
Capacity: 12000 ~ 14000BTU/h
Warning:
Before using this product,
please read this manual carefully
and keep it for future reference.
The design and specifications
are subject to change without
prior notice for product
improvement. Consult with your
dealer or the manufacturer for
details.
Midea.com
version F - 05 - 2021
version F - 05 - 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP12SVKBA3RCM and is the answer not in the manual?

Questions and answers

Related Manuals for Midea MP12SVKBA3RCM

Summary of Contents for Midea MP12SVKBA3RCM

  • Page 1 The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or the manufacturer for details. Midea.com version F - 05 - 2021 version F - 05 - 2021...

  • Page 2: Table Of Contents

    Owner’s Manual SAFETY PRECAUTIONS ................3 OPERATING INSTRUCTIONS ..............8 INSTALLATION INSTRUCTIONS .............. 12 CARE AND CLEANING ................19 TROUBLESHOOTING TIPS ..............20 HEAT PUMP HOSE INSULATION FOAM ..........21 REMOTE CONTROL AND APP INSTRUCTIONS ......... 22 WARRANTY ....................30 Read This Manual Inside you’ll find many helpful hints on how to use and maintain your air conditioner properly.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. This symbol indicates a hazardous situation which, if not WARNING avoided, could result in death or serious injury.
  • Page 4 WARNING • Do not disassemble or modify unit. It may cause failure and electric shock. • Do not damage or use an alternate power cord. It may cause fire and electric shock. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person in order to avoid a hazard.
  • Page 5 CAUTION • Do not put a pet or house plant where it will be exposed to direct air flow. This could injure the pet or harm the plant. • Hold the plug by the head of the power plug when taking it out. Otherwise, it may cause electric shock and damage.
  • Page 6 • Be aware that the refrigerants may not contain an odor. • Keep ventilation openings clear of obstruction. • Unit is only to be serviced by a Midea authorized servicer, please call Customer Service at 1-866-646-4332 for support. • Flammable refrigerant R32 is used within air conditioner. Please follow the instructions carefully to handle, install, clean, and service the air conditioner to avoid damage or hazard.
  • Page 7 Operation of Current Device The power supply cord contains a current Plug in & measuring device that detects damage to the power cord. Test your power supply press RESET cord as follows: RESET Plug in the air conditioner. 2. The power supply cord will have TWO TEST buttons on the plug head.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS Preparation Control panel Outlet louver (automatic swing) Upper air filter (behind the grille) Handle (both sides) Inlet and outlet air hose Air inlet Panel Drain Outlet (dry mode) Drain Outlet (heating mode) Power plug storage Power cord storage Power cord outlet Caster Drain Outlet...
  • Page 9 Control Panel Features Swing (Connect) Wireless Indicator LED Display Power Button Button Timer Mode Up ( ) and Down ( Sleep Buttons Button Button Button Button Swing Button When the function is turned on, the constant fan light will illuminate, Used to initiate the Auto Swing feature.
  • Page 10 Shows Error codes and protection code: NOTICE E1 - Room temperature sensor error. E2 - Evaporator temperature sensor error. When one of these error codes occurs, E3 - Condenser temperature sensor error (select turn off the unit and check for any models).
  • Page 11 SLEEP operation NOTICE Pressing this button will increase (during cooling operation) or decrease (during The SLEEP operation feature is heating operation, applicable models) 2°F/1°C unavailable in FAN or DRY mode. after 30 minutes. The temperature will again increase (cooling) or decrease (heating) by another 2°F/1°C after an additional 30 minutes.

  • Page 12: Installation Instructions

    • Service, maintenance or repair of this unit must be performed by a certified technician. • Product recycling must be done according to local regulations. Scan this QR code to watch an installation video for your Midea Duo Portable Air Conditioner: 25 cm 9.8 inch  Page 12 ...
  • Page 13 Tools Needed • Phillips screwdriver • Saw (optional, to shorten window adaptor for narrow windows). • Tape measure or ruler • Knife or scissors Accessories Your Window Installation Kit fits windows 19.1” – 63.8” (48.4-162 cm). Please doublecheck all packaging materials to make sure accessories do not get accidentally thrown away. Quantity Air exhaust adapter 1 pc...
  • Page 14 Window Installation Kit 1: For Hung Window types only Air Exhaust Insert the Air Exhaust Adapter into the Adapter exhaust of the hose (the circular opening) for optimal performance. Rotate the Exhaust adapter clockwise until the locking tabs click and it no longer rotates. Hose Skip this step if installing into a horizontal sliding window.
  • Page 15 Type 1: Hung window installation Foam seal B (Adhesive type-shorter) Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown. Foam seal A (Adhesive 2. Insert the window slider assembly into the window type) track.
  • Page 16 Type 2: Sliding window Installation (Optional) Foam seal B (Adhesive Cut the adhesive foam seal A and B strips to the type-shorter) proper lengths, and attach them to the window sash and frame as shown. 2. Assembling the Sliding Window Adapter (Only needed for Sliding Window applications): Align Foam seal A both halves of the sliding window adapter and...
  • Page 17 6. If desired, install the security bracket with 2 Security screws as shown. Bracket 2 Screws Attach the Sliding Window Adapter to the hose by lining up the circles on the adapter the hose. Insert the window slider adapter into the hole of the window slider.
  • Page 18 Water Drainage (For Heating Mode) • While operating in heat pump mode, the unit will produce condensate that must be drained. You must install the drain hose when operating in heat mode. To install the drain hose, remove the plug from the drain port and attach the included hose.

  • Page 19: Care And Cleaning

    CARE AND CLEANING Safety Precautions • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. •...

  • Page 20: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Unit does not turn on Displays P1 Error Code and means the water collection tray is full.

  • Page 21: Heat Pump Hose Insulation Foam

    HEAT PUMP HOSE INSULATION FOAM If you are experiencing condensation on the outer section of the hose during heating operation, apply the included heat pump insulation foam to the outside of the hose. Use the included zip ties to secure the foam around the hose.

  • Page 22: Remote Control And App Instructions

    REMOTE CONTROL AND APP INSTRUCTIONS Handling the Remote Control LOCATION OF THE REMOTE CONTROL Use the remote control within a distance of 26 ft. (8m) from the air conditioner, pointing it towards the unit. The unit will beep when it receives a signal. CAUTION •...
  • Page 23 BATTERY DISPOSAL Ensure used batteries are disposed of properly. TIPS FOR USING REMOTE CONTROL • In order to properly transmit a command, the ON/OFF indicator must be illuminated on the remote’s display. (See the Remote LED Screen Indicators section for more information.) Remote Control Specifications Model RG10F2(B2)/BGEFU1...
  • Page 24 Remote Screen Indicators Information is displayed when the remote control is powered on. Fresh feature display (Not applicable) Sleep mode display Comfort sense feature display Wireless control feature display Low battery detection display (If flashes) MODE display Transmission Indicator Displays the current mode, Lights up when remote including: sends signal to indoor...
  • Page 25 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON SETTING Press TIMER ON Press up or down button for Point remote to unit and wait button to initiate the multiple times to set the desired 1 sec, the TIMER ON will be ON time sequence.
  • Page 26 OS may or may not be supported until a new version is released. Your specific mobile phone or problems in your network may prevent the system from working and Midea will not be responsible for any problems that could be caused by incompatibility or network issues.
  • Page 27 Apple QR code Scan to download app. • You can also go to Google Play or App Store and search for Midea Air. NOTICE All the images in this manual are for reference only, your product and app may look slightly different.
  • Page 28 CREATE YOUR ACCOUNT • Make sure your smartphone is connected to your wireless router and your wireless router has a working 2.4GHz internet connection. • It is recommended to activate your account immediately to be able to recover your password by email. 1.
  • Page 29 ADDITIONAL APP AND SMART HOME FUNCTIONS For additional instructions regarding the features of the app and Smart Home skill capabilities, scan the QR code below.  Page 29 ...

  • Page 30: Warranty

    • Diagnostics, removal, transportation and reinstallation cost required because of service. • Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF THE CONSUMER** Midea replacement parts shall be used and will be warranted only for the original warranty. NORMAL RESPONSABILITIES OF THE CONSUMER**...
  • Page 32 WARNING: Chemical Burn Hazard. Keep batteries away from children. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment.
