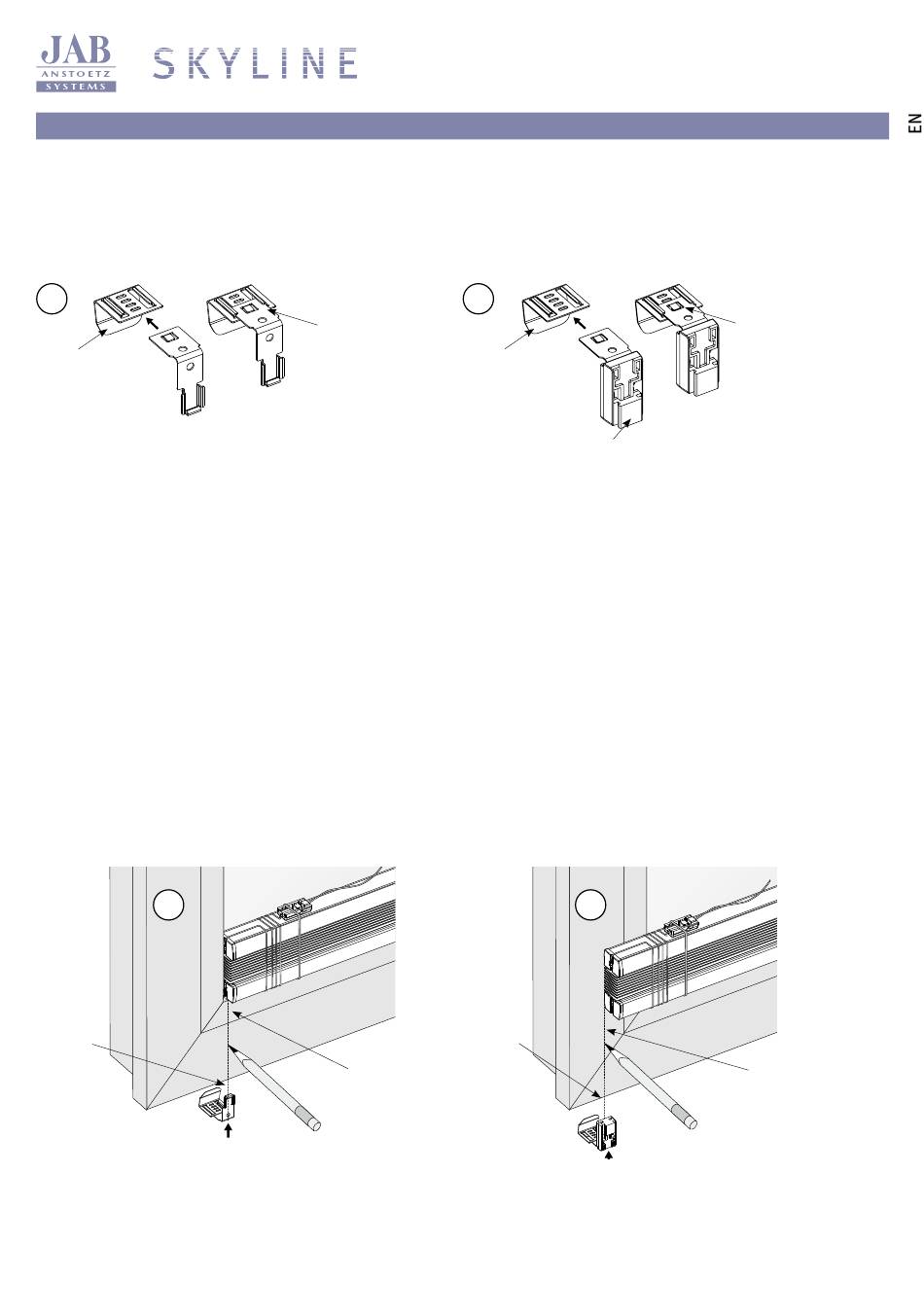

1. Prepare clamping bracket
Stick together the front part and the rear part of the clamping
bracket until the first latch.
Variation A
Pleated blind IN the glazing bead
A
Clamping
bracket
rear part
2a. Determine the positions of the clamping brackets
Variation A: Pleated blind IN the glazing bead
Marking the order width on the window sash.
Outer edge of pleated blind = centre of clamping bracket
Please note:
The order width can be conveniently determined by placing the
pleated blind and marking the outer edge of the pleated blind.
A
Clamping
bracket
centre
Subject to technical changes
OPTION: Clamping bracket Slim [K2]
Variation B
Pleated blind IN FRONT OF the glazing bead
B
first latch
Clamping
bracket
rear part
2b. Determine the positions of the clamping brackets
Variation B: Pleated blind IN FRONT OF the glazing bead
Marking the order width on the window sash.
Outer edge of pleated blind = centre of clamping bracket
Please note:
The order width can be conveniently determined by placing the
pleated blind and marking the outer edge of the pleated blind.
Clamping
bracket
centre
Outer edge
pleated blind
Option [K2]
Front part of the clamping bracket
with spacer
B
first latch
Outer edge
pleated blind
