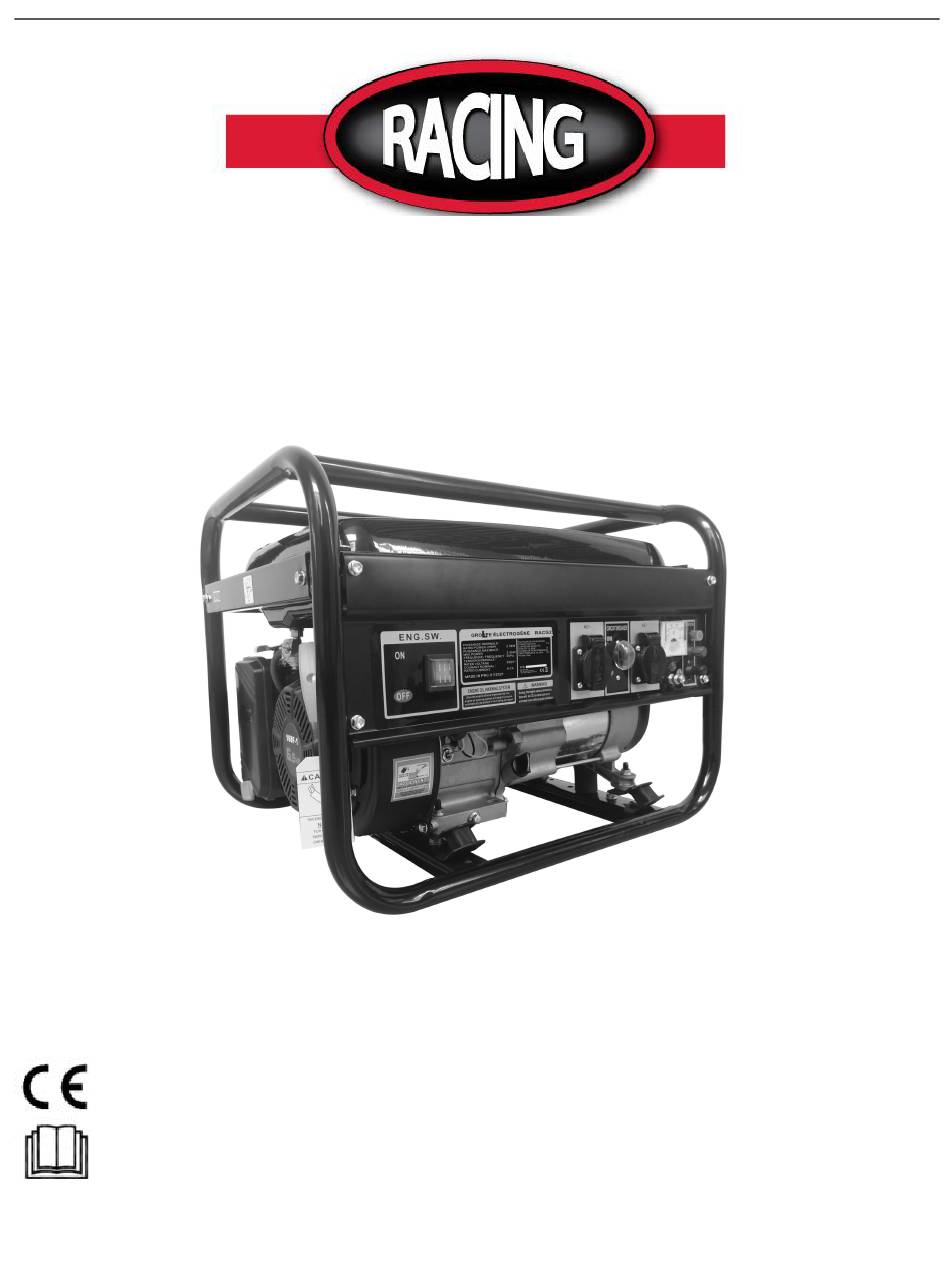

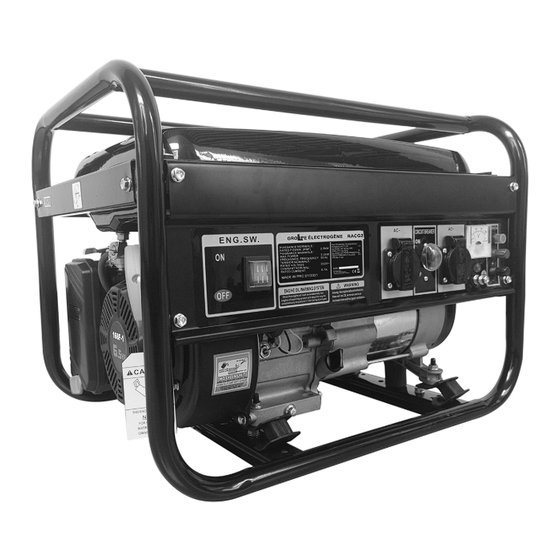

- Page 1 ORIGINAL INSTRUCTION > EN LOW POWER GENERATING SET Instruction Manual Model: RACG2200 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France Made in PRC – 2020 Warning: Please read the manual carefully before using the unit!
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTION > EN CONTENTS 1. SAFETY WARNINGS 2. COMPONENT IDENTIFICATION 3. CONTROLS 4. OPERATION 5. PRE-OPERATION CHECK 6. STARTING/STOPPING THE ENGINE 7. MAINTENANCE 8. TRANSPORT/STORAGE 9. TROUBLESHOOTING 10. CIRCUIT DIAGRAM 11. SPECIFICATIONS 12. DECLARATION OF CONFORMITY... -
Page 3: Safety Warnings
ORIGINAL INSTRUCTION > EN SAFETY WARNINGS The operator must know the principles of functioning and the structure of the generator and the motor. He must know how to stop the motor in case of urgency and how to manipulate the controls. - Page 4 ORIGINAL INSTRUCTION > EN Periodically check the installation of the connections and the tightness of the fixations, re- tightening them if necessary. Clean the components of the air filter periodically, and replace the air filter when necessary. Remove any electrical equipment that is plugged in before starting or stopping the generator. ...
- Page 5 ORIGINAL INSTRUCTION > EN Additional requirements for low-power generating sets for use by laymen Protect children by keeping them at a safe distance from the generating set. Fuel is combustible and easily ignited. Do not refuel during operation. Do not refuel while smoking or near naked flames.
- Page 6 ORIGINAL INSTRUCTION > EN Do not overfill the tank with petrol to avoid spilling. If you notice a spill, it must be wiped up completely with a dry cloth before starting the motor. If you swallow fuel by mistake, if you inhale fuel vapors or if you get drops of fuel in your eyes, see a doctor immediately.
- Page 7 ORIGINAL INSTRUCTION > EN The connection of a generator used for auxiliary power to the electrical installation of a building must be performed by a qualified electrician, and in conformity to the provisions of the applicable laws and norms in the field of electricity. Incorrect connections will cause leakage of the current from the generator into the lines of the public electricity company.
- Page 8 ORIGINAL INSTRUCTION > EN Do not dispose of old appliances with domestic rubbish Add engine oil Guaranteed sound power level Risk of fire Ground connection It is forbidden to run the generator in an enclosed room because exhaust emissions can lead humans or animals to coma to death This symbol indicates the surface is very hot and not touching Keep away from the machine Exhaust emissions are harmful to health of body...
-
Page 9: Component Identification
ORIGINAL INSTRUCTION > EN COMPONENT IDENTIFICATION... -
Page 10: Controls
ORIGINAL INSTRUCTION > EN CONTROLS 1) Engine Switch Starting and stopping the engine. Switch position: OFF: To Stop the engine. Key can be removed/inserted. ON: To run the engine after starting. Return the key to the ON position once the engine has started. Do not use the starter for more than 5 seconds at a time. - Page 11 ORIGINAL INSTRUCTION > EN 4) Choke The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke lever or choke rod manually. Move the lever or the rod to the CLOSE position to enrich the mixture.
-
Page 12: Operation
ORIGINAL INSTRUCTION > EN 6) Ground Terminal The generator ground terminal is connected to the panel of the generator, the metal non-current carrying parts of the generator, and the ground terminals of each receptacle. Before using the ground terminal, consult a qualified electrician, electrical inspector or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator. - Page 13 ORIGINAL INSTRUCTION > EN If the generator is tested by a receptacle tester, it will not show the same ground circuit condition as for a home receptacle. Special Requirements There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator.
- Page 14 ORIGINAL INSTRUCTION > EN 4) AC Operation ①Start the engine ②Switch the AC circuit breaker ON. ③ Plug in the appliance. Most motorized appliances require more than their rated wattage for startup. Do not exceed the current limit specified for any one receptacle. If an overloaded circuit causes the AC circuit breaker to switch OFF, reduce the electrical load on the circuit, wait a few minutes and then reset the circuit breaker.
- Page 15 ORIGINAL INSTRUCTION > EN Connecting the battery cables: 1) Before connecting charging cables to a battery that is installed in a vehicle, disconnect the vehicle’s grounded battery cable. WARNING The battery gives off explosive gases; keep spark, flames and cigarettes away. Provide adequate ventilation when charging or using batteries.
-
Page 16: Pre-Operation Check
ORIGINAL INSTRUCTION > EN 7) Reconnect the vehicle grounded battery cable. 6) High Altitude Operation At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease, and fuel consumption will increase. High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburetor and readjusting the pilot screw. - Page 17 ORIGINAL INSTRUCTION > EN Use 4-stroke oil, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S. automobile manufacturer’s requirements for Service Classification SG, SF/CC, CD. Motor oils classified SG, SF/CC; CD will show this designation on the container. SAE 10W-30 is recommended for general temperature use.
- Page 18 ORIGINAL INSTRUCTION > EN Use gasoline with a pump octane rating of 86 or higher. We recommend unleaded gasoline because it produces fewer engine and spark plug deposits and extends exhaust system life. Never use stale or contaminated gasoline or oil/gasoline mixture. Avoid getting dirt or water in the fuel tank.
-
Page 19: Starting/Stopping The Engine
ORIGINAL INSTRUCTION > EN Methanol (methyl or wood alcohol) Gasoline containing methanol must contain solvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems and may damage metal, rubber and plastic parts of your fuel system. MTBE (methyl tertiary butyl ether) You may use gasoline containing up to 15% MTBE by volume. - Page 20 ORIGINAL INSTRUCTION > EN NOTICE Operating the starter motor for more than 5 seconds can damage the motor. If the engine fails to start, release the switch and wait 10 seconds before operating the starter again. If the speed of the starter motor drops after a period of time, it indicates that the battery should be recharged.
-
Page 21: Maintenance
ORIGINAL INSTRUCTION > EN MAINTENANCE Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING Exhaust gas contains poisonous carbon monoxide. Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. Periodic maintenance and adjustment is necessary to keep the generator in good operating condition. - Page 22 ORIGINAL INSTRUCTION > EN The maintenance schedule applies to normal operating conditions. If you operate your generator under severe conditions, such as sustained high-load or high-temperature operation, or use it in unusually wet or dusty conditions, consult your servicing dealer for recommendations applicable to your individual needs and use.
- Page 23 ORIGINAL INSTRUCTION > EN advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil. Please dispose of used motor oil in a manner that is compatible with the environment We suggest you take it in a sealed container to your local service station or recycling center for reclamation. Do not throw it in the trash or pour it on the ground.
- Page 24 ORIGINAL INSTRUCTION > EN 5) Fuel Sediment Cup Cleaning The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned.
- Page 25 ORIGINAL INSTRUCTION > EN 4) Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused. 5) Measure the plug gap with a feeler gauge. Correct as necessary by carefully bending the side electrode.
-
Page 26: Transport/Storage
ORIGINAL INSTRUCTION > EN TRANSPORT/STORAGE When transporting the generator, turn the engine switch and the fuel valve OFF. Keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. Not turn the machine to any side, and keep the machine under horizontal position during the transporting process. - Page 27 ORIGINAL INSTRUCTION > EN Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area during this procedure. The fuel of this machine is combustible and deflagrating.
-
Page 28: Troubleshooting
ORIGINAL INSTRUCTION > EN 9. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Is there oil in the tank? Add the recommended oil. STILL SPARK Is there spark from Replace the Take the generator to an spark plug. - Page 29 ORIGINAL INSTRUCTION > EN No electricity at the AC receptacles Is the AC circuit breaker ON Turn the AC circuit breaker ON Check the electrical appliance or Take the generator to an equipment for any defects. authorized generator dealer. Replace the electrical appliance DEFECTS or equipment.
-
Page 30: Circuit Diagram
ORIGINAL INSTRUCTION > EN 10. CIRCUIT DIAGRAM... -
Page 31: Specifications
ORIGINAL INSTRUCTION > EN 11. SPECIFICATIONS Engine Engine model LT196 Engine type Single cylinder, 4-strokes, Forced air cooling, OHV. Displacement( CC) 196cc Rated speed 3000/min Igniting system Transistor magneto Starting system Recoil Fuel Volume (L) 15 L Continuous operation time (h) 1 3 h Min. -
Page 32: Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: Gasoline Generator Model: RACG2200 Serial number: 20210115120-20210116099 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it: Also complies with the following European directives:... - Page 33 13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 34 14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 35 15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
