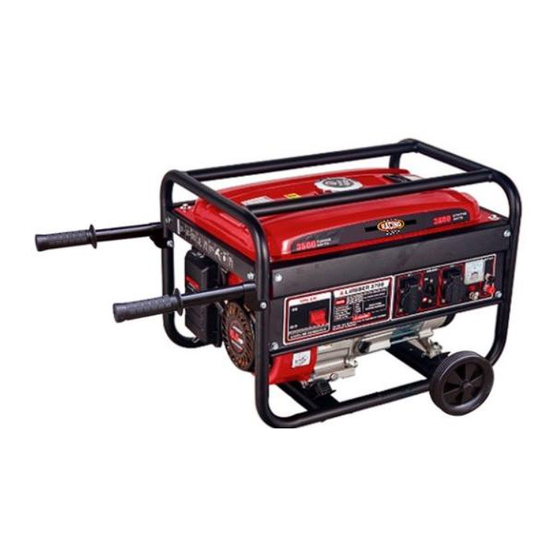

- Page 1 INSTRUCTIONS ORIGINALES >>EN GASOLINE GENERATOR RAC3100-B INSTRUCTION MANUAL CAUTION Read the instructions before using the machine !
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTION ..................3 COMPONENT IDENTIFICATION..............7 INSTALLATION....................8 CONTROLS.....................10 GENERATOR USE..................12 PRE-OPERATION CHECK................13 STARTING / STOPPING THE ENGINE............15 MAINTENANCE....................16 TRANSPORTING AND STORAGE..............19 TROUBLESHOOTING..................21 WIRING DIAGRAM..................23 SPECIFICATIONS...................24 EC DECLARATION OF CONFORMITY............25 WARRANTY....................26 PRODUCT FAILURE..................27 WARRANTY EXCLUSIONS................28... -
Page 3: Safety Instruction
1.SAFETY INSTRUCTION WARNING: • Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! • Children should be protected by keeping them at a safe distance from the generator set! • Refilling of the generating sets are not allowed during the operation! •... - Page 4 Periodically check the installation of the connections and the tightness of the fixations, re- tightening them if necessary. Clean the components of the air filter periodically, and replace the air filter when necessary. Remove any electrical equipment that is plugged in before starting or stopping the generator. ...
- Page 5 If you swallow fuel by mistake, if you inhale fuel vapours or if you get drops of fuel in your eyes, see a doctor immediately. If a certain quantity of fuel is spilt on your skin or clothing, wash or change your clothes.
- Page 6 To dispose residual fluids, proceed as follows: - Close the fuel tap - Drain fuel from the fuel tank - Empty carburetor fuel SYMBOL EXPLANATION Attention! Please read the manual carefully before using the unit! Conforms to relevant safety standards Do not dispose of old appliances with domestic rubbish .
-
Page 7: Component Identification
USING the generator in rain, snow, or near water can lead to electric shock. Keep the generator dry. It is forbidden to run the generator in an enclosed room because exhaust emissions can lead humans or animals to coma to death. Do not connect with the electricity system. -
Page 8: Installation
3. INSTALLATION 3.1 UNPACKING 1) Unpack all parts and lay them on a flat stable surface 2) Make sure the delivery contents are complete and free of damage. If you find that parts are missing or show damage, do not use the product but contact your dealer/service centre. Do not use the product unless missing parts have been delivered in addition or defective parts have been replaced. - Page 9 FOOT PAD Keep the tool upside down. Localise the two holes on the bar. Screw each foot bar in each hole. HANDLE Put the tool in the normal position. Localise the holes on the support, It is the place where install the handle. Put handle against the hole on the support.
-
Page 10: Controls
4. CONTROLS 4.1 ENGINE SWITCH To start and stop the engine. Switch position: • OFF: To Stop the engine. • ON: To run the engine after starting. 4.2 RECOIL STARTER To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly. NOTICE: Do not allow the starter to snap back against the engine. - Page 11 4.4 CHOKE LEVER The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke lever or choke rod manually. Move the lever or the rod to the CLOSE position to enrich the mixture.
-
Page 12: Generator Use
5. GENERATOR USE 5.1 CONNECTIONS TO A BUILDING’S ELECTRICAL SYSTEM Connections for standby power to a building's electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes. -
Page 13: Pre-Operation Check
may not switch the circuit breaker OFF, but will shorten the service life of the generator. Limit operation requiring maximum power to 30 minutes. For continuous operation, do not exceed the rated power. In any case, the total power requirements (VA) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model number or serial number. - Page 14 Use 4-stroke oil, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S. automobile manufacturer’s requirements for Service Classification SG, SF/CC, CD. Motor oils classified SG, SF/CC, CD will show this designation on the container. SAE 10W-30 is recommended for general temperature use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range.
-
Page 15: Starting/Stopping The Engine
If spark knock or pinging occurs at a steady engine speed, under normal load, change brands of gasoline. If spark knock or pinging persists, see an authorized generator dealer. NOTICE Running the engine with persistent spark knock or pinging can cause engine damage. Running the engine with persistent spark knock or pinging is misuse, and the Distributor's Limited Warranty does not cover parts damaged by misuse. -
Page 16: Maintenance
8. MAINTENANCE Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING Exhaust gas contains poisonous carbon modoxide. Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. Periodic maintenance and adjustment is necessary to keep the generator in good operating condition. - Page 17 NOTE: Diagrams may vary according to the types. 8.3 ENGINE OIL CHANGE Drain the oil while the engine is warm to assure complete and rapid draining 1. Remove the drain plug and sealing washer, oil filler cap, and drain the oil 2.
- Page 18 1) Unsnap the air cleaner cover clips, remove the air cleaner cover, and remove the element. 2) Wash the element in a solution of household detergent and warm water, then rinse thoroughly; or wash in nonflammable or high flash point solvent. Allow the element to dry thoroughly 3) Soak the element in clean engine oil and squeeze out the excess oil.
-
Page 19: Transporting And Storage
9. TRANSPORTING/STORAGE When transporting the generator, turn the engine switch and the fuel valve OFF. Keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. Not turn the machine to any side, and keep the machine under horizontal position during the transporting process. - Page 20 The fuel of this machine is combustible and deflagrating. After the machine has been shut down, the additional fuel must be treated properly and the local environmental requirements must be met. 2) Change the engine oil 3) Remove the spark plug, and pour about a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug.
-
Page 21: Troubleshooting
10. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Is there oil in the tank? Add the recommended oil. STILL SPARK Is there spark from Replace the Take the generator to an spark plug. - Page 22 No electricity at the AC receptacles Is the AC circuit breaker ON Turn the AC circuit breaker ON NO DEFECTS Check the electrical appliance or Take the generator to an equipment for any defects. authorized generator dealer. Replace the electrical appliance DEFECTS or equipment.
-
Page 23: Wiring Diagram
11. CIRCUIT DIAGRAM... -
Page 24: Specifications
12. SPECIFICATIONS Engine Engine model LB170F Engine type Single cylinder, 4-strokes, Forced air cooling, OHV. Displacement( CC) 208cc Rated speed 3600/min Igniting system Transistor magneto Starting system Recoil Fuel Volume (L) 15 L Continuous operation time (h) 10.5 h Min. Fuel consumption (g/kW.h) 360 g/kW.h Lube Oil capacity (L) 0.6 L... -
Page 25: Ec Declaration Of Conformity
ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: Gasoline Generator Model: RAC3100-B Serial number: 20211241474-20211242071 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing Also complies with the following European directives:... -
Page 26: Warranty
14. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 27: Product Failure
15. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 28: Warranty Exclusions
16. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 29 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2021...
