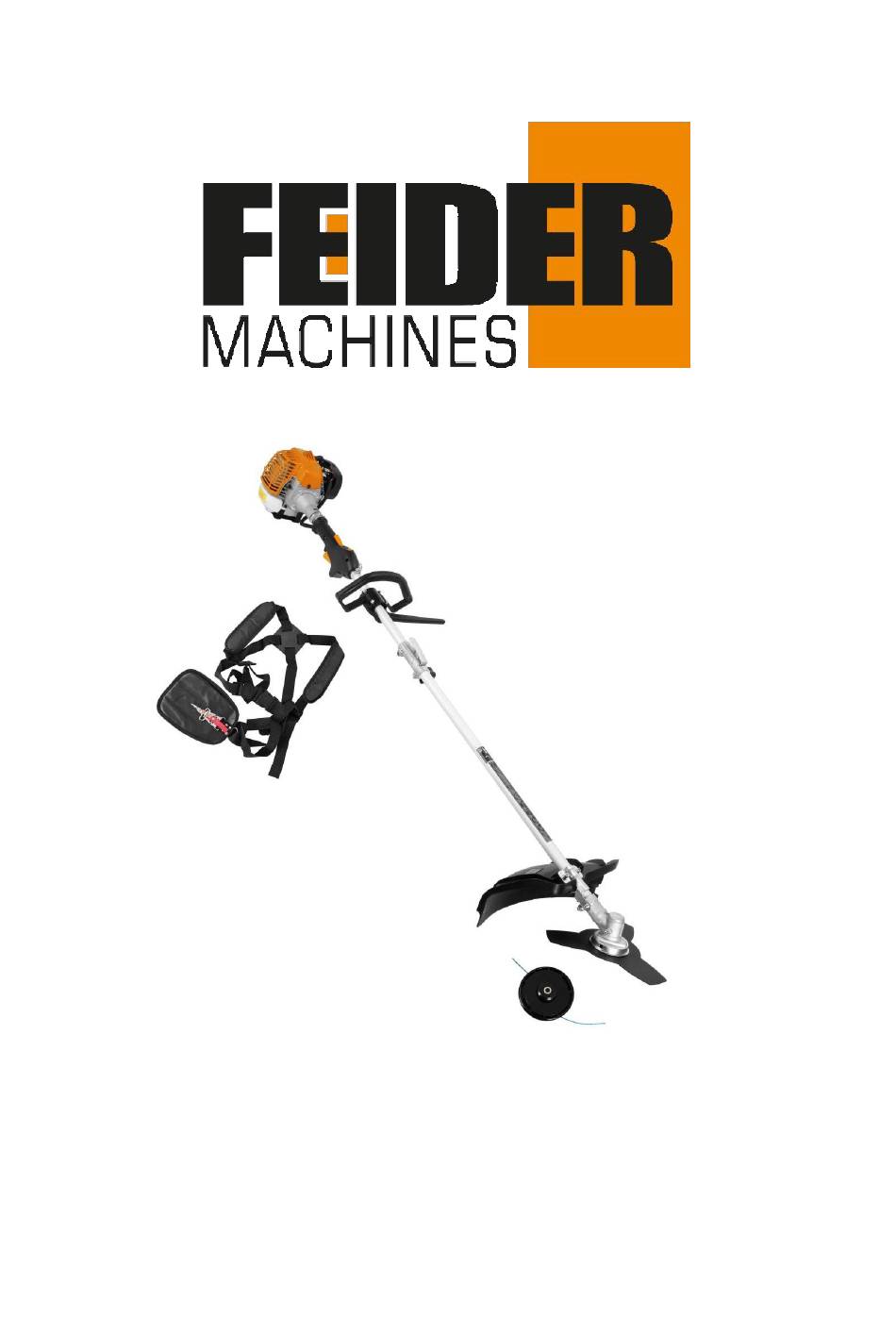

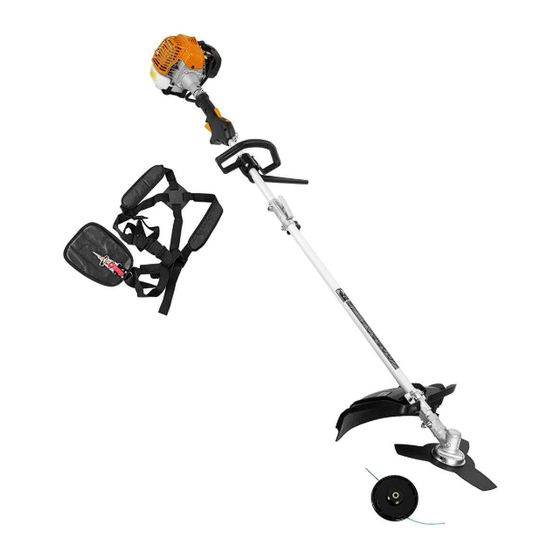

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL BRUSH CUTTER & GRASS TRIMMER FDBT25 USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. PRODUCT DESCRIPTION........................8 3. ASSEMBLY............................10 4. FILLING THE FUEL TANK........................13 5. OPERATION............................14 6. MAINTENANCE AND STORAGE....................16 7. TROUBLE SHOOTING........................18 8. DECLARATION OF CONFORMITY....................19 9. WARRANTY............................20 10. PRODUCT FAILURE........................21 11. WARRANTY EXCLUSIONS......................22... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions. This product must be operated by experienced users. - Page 4 Keep firm footing and balance during operation. Always use the harness provided. Have a correct working posture; stay stand, do not lean. The working positions should be changed regularly. Always inspect the machine before and after operation. If the tool is damaged or faulty, stop using the tool and bring it to an authorized service for inspection and repair.
- Page 5 combustible gasses or combustible liquids. When the machine is placed in storage for a long time, drain fuel from the fuel tank and carburetor, clean the parts, move the machine to a safe place and confirm that the engine is cooled down.
- Page 6 Even if you use this product in accordance with all safety requirements, the potential risk of injury and damage remains. The following hazards may arise: There are harmful health consequences resulting from the emission of vibrations if the product is used for long periods of time or not managed adequately and properly maintained. The vibrations can produce the so-called “white finger”...
- Page 7 maximum rotational frequency of the spindle. WARNING-BEWARE OF THROWN OBJECTS - KEEP BYSTANDERS AWAY BEWARE OF THROWN OBJECTS HIT BY CUTTING ATTACHMENTS. NEVER USE WITHOUT PROPERLY MOUNTED BLADE GUARD. BEWARE OF BLADE THRUST. KEEP BYSTANDERS AT LEAST 15 M AWAY. DO NOT USE SAW BLADE.
-
Page 8: Product Description
Choke lever Fuel ratio 40:1. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. 2. PRODUCT DESCRIPTION a. Description (1) Primer (8) Cutting attachment guard (15) 3T blade (2) Air cleaner cover (9) Loop handle (16) Double harness (3) Choke lever... - Page 9 Technical data MODEL FDBT25 Main Remote type Centrifugal Clutch; unit Maximum rotational frequency of the 7,200/min spindle Idle speed of engine 3,000±300 /min Measured vibration emission value 7,2 m/s at each manipulation (m/s Uncertainty K=1,5 m/s (According to ISO 22867)
-
Page 10: Assembly
Gear ratio(engine: cutting attachment 15:20 rotational frequency) Rotational direction of output shaft seen Counter-Clockwise from above…… Brush cutter Cutting diameter(mm) 255 mm Cutting line thickness(mm) 1,4 mm Number of teeth Blade centre hole diameter(mm) 25,4 mm Maximum rotational frequency of the 7200/min spindle (/min) Gear ratio(engine: cutting attachment... - Page 11 ASSEMBLY OF THE SHAFT TUBE Loosen the locking nut(18) and insert the shaft tube(14) position 1 in the connecting piece position 2 as per below image. Ensure that shaft tube(14) position L is inserted into the guide hole (position H). ...
- Page 12 To disassemble the blade, insert a metal locking tool in the hole on the side of the drive sprocket and on the drive. Loosen the retaining nut and then remove all elements. NOTE After installation, always check if the installation is correct. If blade is not installed, it will vibrate excessively and can cause injury.
-
Page 13: Filling The Fuel Tank
4. FILLING THE FUEL TANK 1) Filling fuel tank WARNING: When filling the tank: The tool must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the engine to cool completely. Do not attempt to refuel when the engine is hot. -
Page 14: Operation
5. OPERATION a. Starting the engine 1) Feed fuel into the fuel tank and tighten the cap securely. 2) Rest the unit on a flat, firm place. Keep the cutting head off the ground and clear of surrounding objects, as it will start rotating upon starting of the engine. 3) Push the primer pump several times until overflown fuel flows out in the clear tube. - Page 15 Important: Avoid pulling the rope to its end or returning it by releasing the knob. Such actions can cause starter failures. 7) Move the choke lever to the open position. And pull out the starter rope quickly to restart engine. 8) Allow the engine to warm up for a several minutes before starting operation.
-
Page 16: Maintenance And Storage
d. Brush cutter operation Do not the brush cutter for cutting trees Do not cut with dull, cracked, or damaged blade. Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade. - Page 17 Do not immerse the tool in water or any other liquid. For below maintenance tasks, Need to keep the machine in good working condition when doing such a task. a. Air filter The air filter, if clogged, will reduce the engine performance. Check and clean the filter element in warm, soapy water as required.
-
Page 18: Troubleshooting
To reinstall the cutting string, first pass the two ends of the string on the holes localized on the housing. Put the cutting string in the housing; correctly pull the string outside of the tool in equal part. Place the cover on the housing; turn it to lock it in place. f. -
Page 19: Declaration Of Conformity
Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: Petrol Brush Cutter & Grass Trimmer Model: FDBT25 Serial No.: 20240114081-20240114380 20240203277-20240204556 The people name holding the technical file：M. Olivier Patriarca have been designed in compliance with the following standards:... -
Page 20: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 21: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 23 NOTES...
- Page 24 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in China in 2024...
