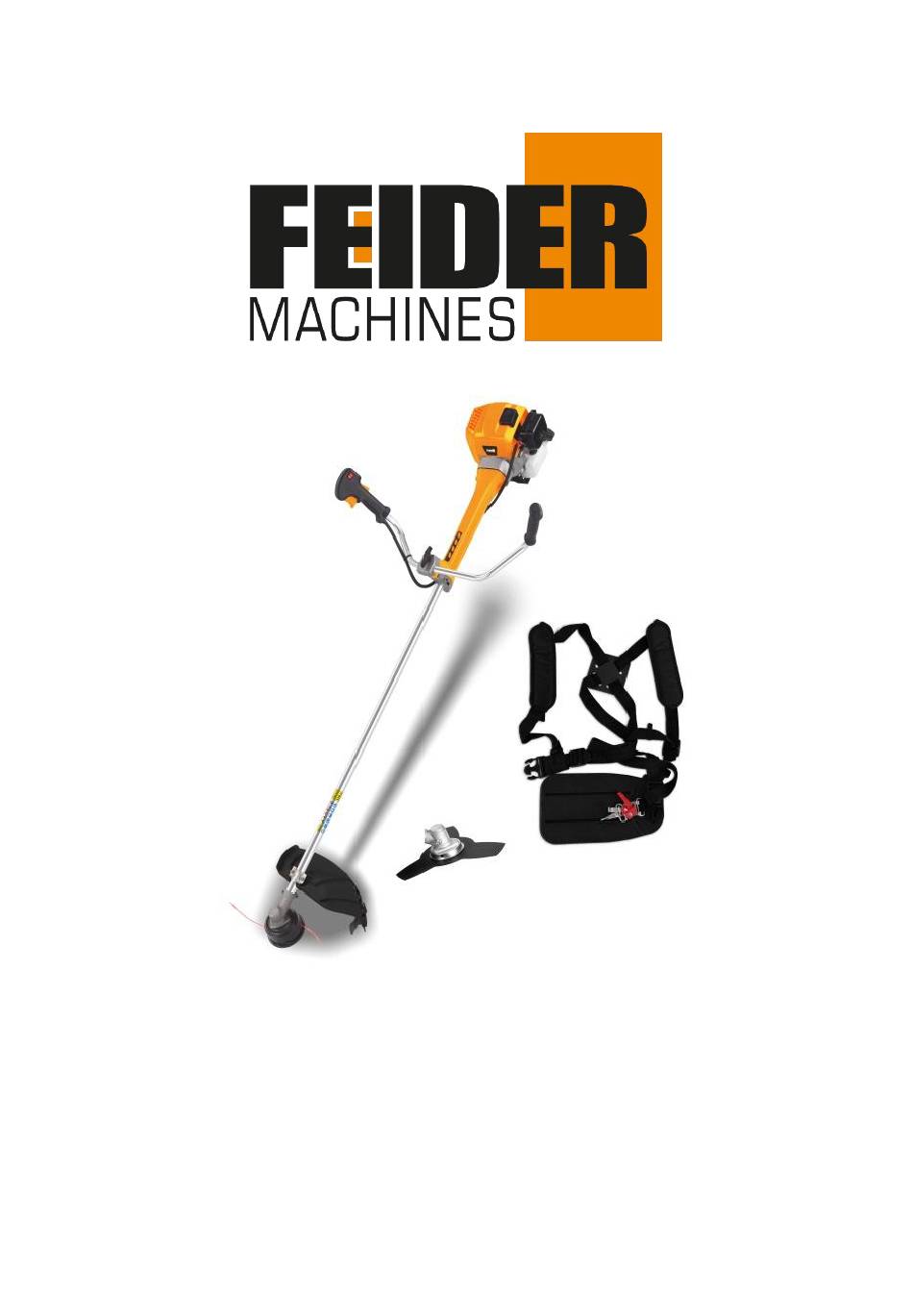

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL BRUSH CUTTER & GRASS TRIMMER FDBT50-A USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. PRODUCT DESCRIPTION........................8 3. ASSEMBLY............................10 4. FILLING THE FUEL TANK........................13 5. OPERATION............................14 6. MAINTENANCE AND STORAGE....................17 7. TROUBLE SHOOTING........................19 8. DECLARATION OF CONFORMITY....................20 9. WARRANTY............................21 10. PRODUCT FAILURE........................22 11. WARRANTY EXCLUSIONS......................23... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions. This product must be operated by experienced users. - Page 4 Keep firm footing and balance during operation. Always use the harness provided. Have a correct working posture; stay stand, do not lean. The working positions should be changed regularly. Always inspect the machine before and after operation. If the tool is damaged or faulty, stop using the tool and bring it to an authorized service for inspection and repair.
- Page 5 combustible gasses or combustible liquids. When the machine is placed in storage for a long time, drain fuel from the fuel tank and carburetor, clean the parts, move the machine to a safe place and confirm that the engine is cooled down.
- Page 6 Even if you use this product in accordance with all safety requirements, the potential risk of injury and damage remains. The following hazards may arise: There are harmful health consequences resulting from the emission of vibrations if the product is used for long periods of time or not managed adequately and properly maintained. The vibrations can produce the so-called “white finger”...
- Page 7 WARNING-BEWARE OF THROWN OBJECTS. BEWARE OF THROWN OBJECTS HIT BY CUTTING ATTACHMENTS. NEVER USE WITHOUT PROPERLY MOUNTED BLADE GUARD. BEWARE OF BLADE THRUST. KEEP BYSTANDERS AT LEAST 15 M AWAY. DO NOT USE SAW BLADE. GUARANTEE SOUND POWER LEVEL RISK OF HOT SURFACE. DOT NOT EXPOSE TO FIRE Warning! Cutting elements.
-
Page 8: Product Description
10 Engine on/off switch 3T blade Handle housing 11 Throttle trigger Double harness Handle 12 Shaft tube b. Technical data MODEL FDBT50-A Main Remote type Centrifugal Clutch; unit Maximum rotational frequency of the spindle 7,200/min Idle speed of engine 3,000±400 min... - Page 9 Metal blade (Type/Diameter) 3-teeth Ø255xØ25.4x1.4mm Weight (with empty tanks, without cutting 6,8 kg attachment, cutting attachment guard and harness) Engine Name of engine WL1E44F-5A Type Air-cooled 2 - stroke petrol engine Displacement 51.7 cm Maximum output 1.50kW (In accordance with ISO 8893) Maximum speed of engine 9600min Idle speed of engine...
-
Page 10: Assembly
Rotational direction of output shaft seen from Counter-Clockwise above…… c. Parking list Part name Quantity Part name Quantity Machine Double harness 1set Cutting attachment guard Plastic kettle Trimmer head 1set Allen key Brush blade Spark plug wrench Handle bracket 1set Ribbon 3. - Page 11 Put the bottom handle bracket(4) onto the handle base(6) (bulge A into slot A’, bulge B into slot B’, bulge C into slot C’, bulge D into slot D’). Put the handle(3) onto the groove of the bottom handle bracket(4), then insert the pin of the top handle bracket into the hole of the bottom handle bracket(2) and close the top &...
- Page 12 1. Bolt 2. Clamp 3. Safety guard 4. Shaft tube NOTE: the safety guard shall be always installed. ASSEMBLY OF THE 3-THEETH BLADE (FOR BRUSH CUTTING) Align the two holes of the flange and the pin. Use a tool to hold the flange. Loosen the nut using a wrench if necessary. Then remove the bell and the outer flange.
-
Page 13: Filling The Fuel Tank
To demount the nylon cutting head, use a screwdriver to hold flange and then rotate the nylon cuttinghead clockwise. INSTALLING THE HARNESS Put on the harness. If necessary, adjust the bands of the harness to have the blade parallel to the ground when standing in your normal working position to provide you most effectiveness and comfort on operating the machine. -
Page 14: Operation
capacity preferably). Replace the cap on the fuel tank and tighten it. Wipe any spillage around the unit if necessary NOTE: To avoid damage and accidents, DO NOT USE OTHER MIXTURES AND OTHER TYPES OF OIL/ PETROL. c. Storage of fuel The fuel must be kept in a clean and safe container and always closed. - Page 15 Warning: The product is equipped with a centrifugal clutch mechanism, so the cutting attachment begins to rotate as soon as the engine is started by putting the throttle into the start position. When starting the engine, place the product onto the ground in a flat clear area and hold it firmly in place so as to ensure that neither the cutting part nor the throttle come into contact with any obstacle when the engine starts.
- Page 16 or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier. If trimming up to a wire mesh or chain linked fence be careful to feed only up to wire.
-
Page 17: Maintenance And Storage
(1) For branches and trees (2) For grass and weeds (3) Direction of cutting (4) Direction of rotation IMPORTANT! Operating at low speed makes it easier for grass, weeds, or twigs to become caught up in the blades, and also it makes the shaft and clutch wear down more quickly. ... - Page 18 (1) Knob (2) Cover (3) Element b. Adjusting the carburettor Do not adjust carburettor unless necessary. If you have trouble with the carburettor, see your dealer. Improper adjustment may cause engine damage and void warranty. c. Fuel filter Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe. It can be picked with a hook or similar device.
-
Page 19: Troubleshooting
g. Gear case Supply multi-purpose grease at every 20 hours of use. Remove the cutter holders to arrange for old grease to exit. h. Storage Inspect and clean the tool as explained in this manual. Empty fuel tank (it can be done by switching on the tool and let it consume all remaining fuel). Disassemble the accessories. -
Page 20: Declaration Of Conformity
ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: Petrol Brush Cutter & Grass Trimmer Model: FDBT50-A Serial No.: 20240205676-20240205925 20240205926-20240206125 20240206126-20240206275 The people name holding the technical file：M. Olivier Patriarca... -
Page 21: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in China in 2024...
