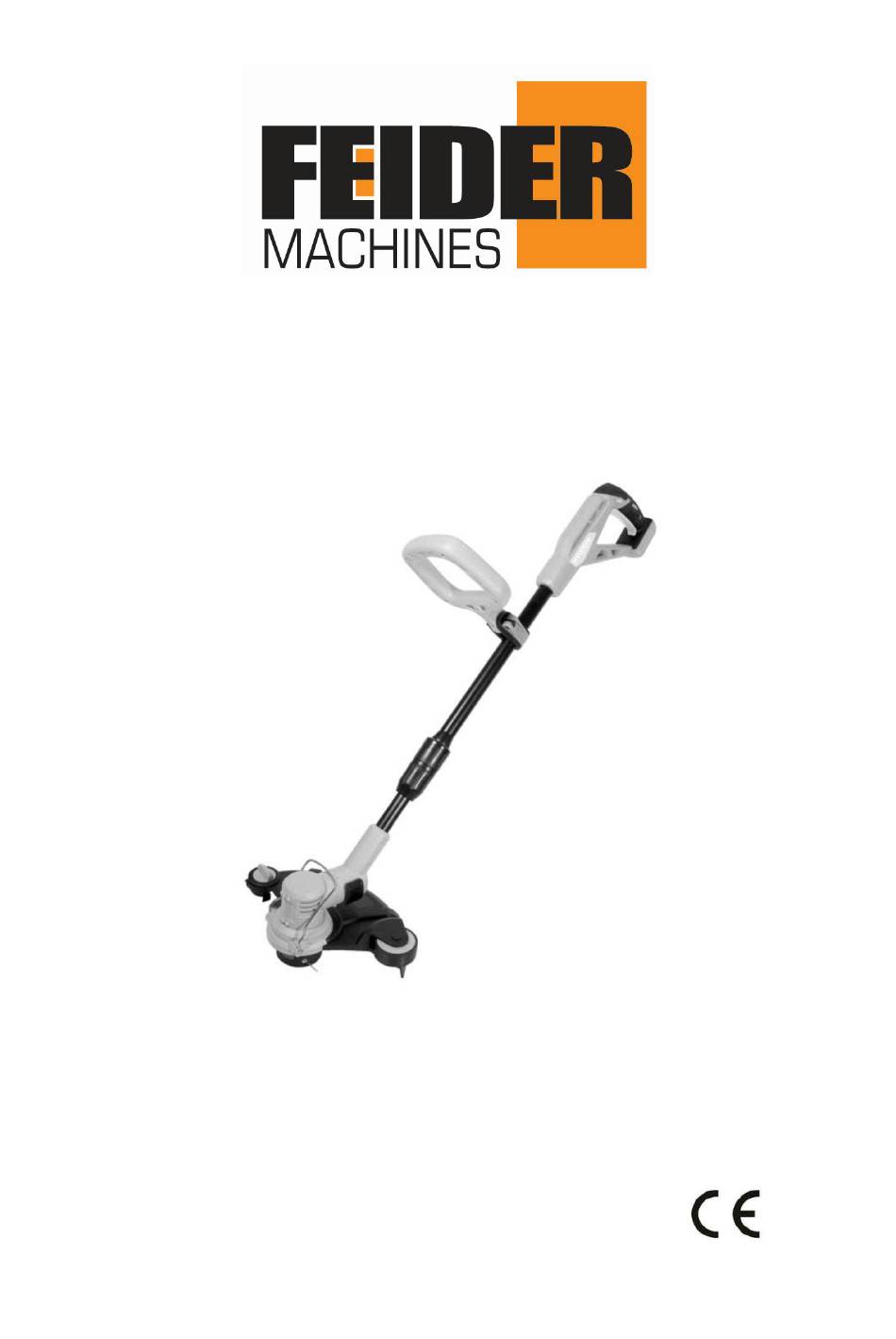

- Page 1 ORIGINAL INSTRUCTIONS CORDLESS GRASS TRIMMER FCBN20V INSTRUCTIONS MANUAL WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2020...
- Page 2 1.SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 3 reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions.
- Page 4 a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection.
- Page 5 clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection dust extraction collection facilities, ensure these are connected and properly used.
- Page 6 unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage parts other condition that may affect the power tool’s operation.
- Page 7 may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper lips, coins, keys, nails, screws or other small metal objects, that can make...
- Page 8 ADDITIONAL SAFETY RULES FOR GRASS TRIMMER Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. Danger! The cutting elements continue to rotate after the motor is switched off ...
- Page 9 Avoid using the trimmer while people, especially children, infirm people or pets, are nearby. Use the trimmer only in daylight or good artificial light. Never operate the trimmer with damaged guards or shields or without guards or shields in place.
- Page 10 Periodically inspect the condition of the cutting head. If the spool is damaged, switch off; replace the spool by a new one. Do not use the machine to cut grass, which is not on the ground. For example, do not cut grass, which is on walls or rocks.
- Page 11 o whenever the machine is left by the user; o before clearing a blockage; o before checking, cleaning or working on the machine; o after striking a foreign object to inspect the machine for damage o if machine starts vibrate abnormally, for immediately check;...
- Page 12 Take care against injury to feet and hands from the cutting means. Always ensure that ventilation openings are kept clear of debris Disconnect the machine from the power supply (i.e. remove the plug from the mains, remove the disabling device or removable battery) before carrying out maintenance or cleaning work.
-
Page 13: Residual Risks
Residual risks • Cuts from the blade • Inhalation of particles of material to be cut • Projection of the parts of the cutting blades • Contact with uncovered cutting head (wounds, cuts) • Contact with tool in operation (injuries, cuts) •... - Page 14 Wear an ocular protection Wear a hearing protection Do not expose to rain or humidity Risk of projections. Keep bystanders away Remove the battery when the tool is damaged and before maintenance and servicing. Read the instruction manual Guarantee sound power level Do not use metal blades Wear protection gloves...
- Page 15 2. YOUR PRODUCT a. Description 7. Single line cutting spool 1. ON/OFF trigger lock-out button 8. Line cutting blade adjustment dial 2. Battery port 9. Guide 3. ON/OFF trigger 10. Shaft length adjuster lock 4. Assist handle locking lever 11. Shaft angle adjuster lock 5.
- Page 16 b. Technical data Voltage 20V d.c. No load speed 7200/min Cutting width 250/300 mm Mass 2,74 kg Sound Pressure level LpA 85 dB(A) K=3dB(A) Measured sound power level 89 dB(A) K=3dB(A) Guarantee sound Power level LwA 96dB(A) Vibration Level 2.5 m/s² K=1.5m/s²...
- Page 17 3. ASSEMBLY NOTE: Supplied without battery or charger...
- Page 18 (12) a. Charging (Charger and battery not included in this model) 1) Take the battery pack out of the equipment. Do this by pressing the push lock button. 2) Check that your mains voltage is the same as that marked on the rating plate of the battery charger.
- Page 19 If the battery pack still fails to charge, send the charging unit and the battery pack to our customer service center. To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power drops. Never allow the battery pack to become fully discharged.
- Page 20 Unrecoverable battery malfunction. b. ATTACHING THE GUARD Remove the battery pack. Invert the grass trimmer/edger to access the trimmer head. Remove the pre-installed screw from the trimmer head. Place the guard on to the trimmer head so that the large part of the guard sits to the rear, Fig.3.
- Page 21 NOTE: To avoid serious personal injury, always remove the battery pack and keep hands clear of the lock-out button when carrying or transporting the tool. Slide the battery pack into the tool base, Fig 12. (Note the battery has raised ribs which allows it to fit into the too! only one way).
- Page 22 Watch cut for kickback in the events of impact with hard objects. After finishing the cutting operation, keep the head close to ground level, release the trigger switch and allow the motor to come to a complete stand still. Place the trimmer on the ground, remove the battery.
- Page 23 6. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.
- Page 24 EC Declaration of conformity BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Declares that the machine Designation: CORDLESS GRASS TRIMMER FCBN20V Serial number: 20200812345-20200812644 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU RoHS Directive 2011/65/EU+ 2015/863/EU Noise directive 2000/14/EC + Annex VI &...
