Summary of Contents for FRANKA ROBOTICS SERVICE BOX

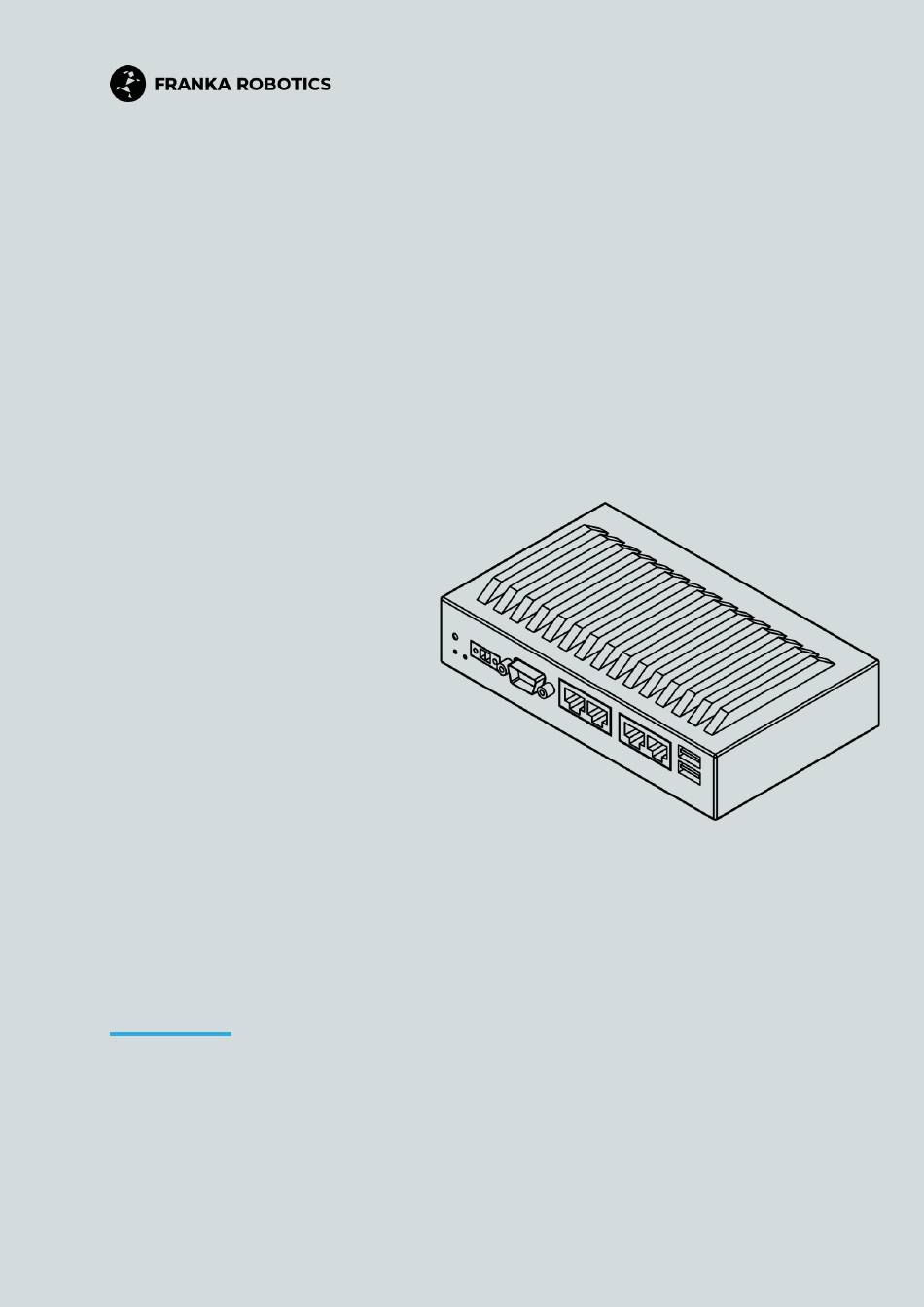

- Page 1 SERVICE BOX Quick Guide...
- Page 2 This document and extracts of it may only be reproduced or made available to third parties with the explicit authorization of Franka Robotics GmbH. The content of this document has been carefully checked against compliance with the hardware and software described.
- Page 3 NOTICE This guide is not the manual of the hardware used for your Service Box and does not replace it. Before operating a Service Box, all persons working with it has to read the relevant hardware manual carefully. Don´t hesitate to contact your sales partner or integrator if you need more detailed information.
-
Page 4: Table Of Contents
TABLE OF CONTENTS ABOUT THE SERVICE BOX ............................5 CONNECTING THE SERVICE BOX ......................... 6 START UP ..................................7 SERVICE MANAGEMENT ............................9 Installing a service ..............................9 Configuring a service ............................9 Removing a service............................. 10 Updating a service .............................. 10 UPDATING THE SERVICE BOX .......................... -
Page 5: About The Service Box
Franka Production 3 system. The Service Box can run services that can be acquired via the Franka World. It can also be employed to run the user’s own services for further customization of Franka Production 3. -
Page 6: Connecting The Service Box
• Service Box unpacked Procedure: • Connect the Control of Franka Production 3 with one of the ethernet ports of the Service Box. • Optional: connect other hardware to the Service Box using either serial, USB or ethernet. • Connect your device (e.g., laptop) to an ethernet port of the Service Box. -
Page 7: Start Up
After the bootup, the Service Box hosts a web interface for further setup and operation. • By entering the default IP address of the Service Box (192.168.1.31) in your web browser, you will be presented with the dashboard of the Service Box. - Page 8 The user can also adjust the network settings of the available ethernet interfaces of the Service Box by setting the IP address, netmask and gateway. • Additionally, the user can download logs generated by the OS of the Service Box, install updates for the OS and shutdown/reboot the Service Box. R81040/1.0/EN...
-
Page 9: Service Management
SERVICE MANAGEMENT 4 SERVICE MANAGEMENT 4.1 Installing a service Precondition: • Service Box is connected and booted Procedure: • Select the option “Service upload” in the top bar to get directed to the upload menu for new services. Figure 4.1 Upload service •... -
Page 10: Removing A Service
SERVICE MANAGEMENT Figure 4.2 Configuration 4.3 Removing a service Precondition: • Service Box is connected and booted • A service is installed Procedure: • In the dashboard you find a trash can icon for every service. Click on the respective tile of the service which should be removed. -
Page 11: Updating The Service Box
UPDATING THE SERVICE BOX 5 UPDATING THE SERVICE BOX Precondition: • Service Box is switched on Procedure: • Select the update file by clicking on “Upload file”. • Start the update by clicking on “Submit”. Figure 5.1 settings R81040/1.0/EN Franka Robotics GmbH ©... - Page 12 Figure 2.1 Ports Front ................................. 6 Figure 2.2 Ports Rear ................................6 Figure 3.1 Dashboard ................................7 Figure 3.2 Network settings .............................. 7 Figure 4.1 Upload service..............................9 Figure 4.2 Configuration ..............................10 Figure 5.1 settings ................................11 R81040/1.0/EN Franka Robotics GmbH ©...
- Page 13 Enjoy using your Service Box. We look forward to getting to know about your success! Share your experience with us as a post, and we will amplify it on our own digital and social media platforms. Just tag @frankaRobotics or #frankaRobotics in your post,...
- Page 14 Franka Robotics GmbH Frei-Otto-Strasse 20 80797 Munich Germany...
