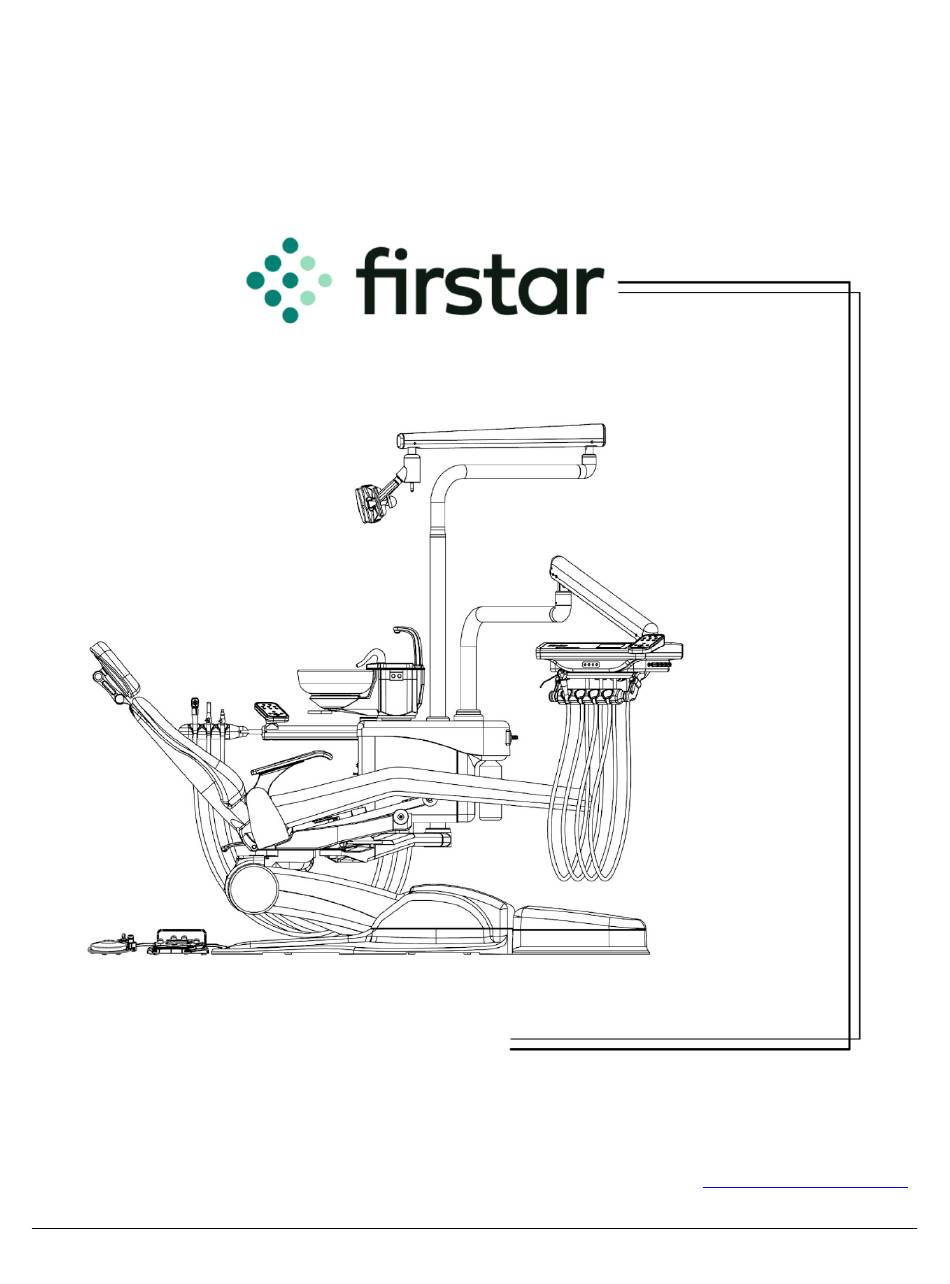

- Page 1 FDC Fixed Side Mount Chair Package FDC – 38H User Manual Firstar Dental Company 18915 84 Ave. S. Kent, WA 98032 www.firstardental.com FDC-ED 1604 RAV.1...
- Page 2 E-mail: technical@firstardental.com FDC-ED 1604 RAV.1...
-
Page 3: Table Of Contents
FDC-601 Installation Guide Table of Contents Introduction Safety Precautions Transportation and Storage Instructions Recommended Environment Conditions Specifications Classifications Package Components Unit Dimensions and Technical Data Dental Chair Delivery System Side Box, Cuspidor and Assistant’s System Dental Light System Operation Instruction Dental Chair Dental Chair Components Headrest Position Adjustment... -
Page 4: Introduction
Warranty Statement Introduction IEC Symbols Thank you for choosing Firstar Dental products. The following symbols conform to IEC labeling This booklet contains detailed information standards and may be located throughout the about the operation instruction and product: maintenance information for the FDC-38H AC (Alternating Current) model. -
Page 5: Recommended Environment Conditions
● Protect against impact, vibration and falling Electric Shock Risk: Risk of electrical shock present. Make sure power is is required during transportation and disconnected before attempting this storage. procedure. ● Transport and store the boxes upright. ● Storage location shall be well ventilated. Storage environment shall not contain any corrosive gases. -
Page 6: Package Components
Package Components FDC-37HC Pivot Chair Mount Package ① Dental Chair ② 3-Way Syringe ③ HVE/SE ④ Assistant’s System Flex Arm ⑤ Cuspidor ⑥ Bowl Rinse Spout ⑦ Cup Fill Spout ⑧ Dental Light ⑨ Dental Light Rotating Arm ⑩ ⑪ Delivery System Tray ⑫ Side Box Delivery System Rotating Arm ⑬... -
Page 7: Delivery System
B. Technical Data Hydronic Liquid Pressure: 5.6MPa (55 kgf/cm Supply Power: 115 VAC, 60Hz / 230 VAC, 50Hz/60Hz, as applicable Fuse Size: F1/F2-10A, F3-100mA | F1/F2-6.3A, F3-63mA Maximum Load (including unit): 2450N (250kgf) Control Voltage: 5VDC Modes of Operation: Intermittent: 25 sec ON – 300 sec OFF Delivery System A. - Page 8 B. Technical Data Air Pressure Requirements: -551.6kPa (-80Psi) Water Pressure Requirements: -275.8kPa (-40Psi) Maximum Load: 98N (10kgf) FDC-ED 1604 RAV.1...
-
Page 9: Side Box, Cuspidor And Assistant's System
Side Box, Cuspidor and Assistant’s System A. Dimensions B. Technical Data Bowl Rinse Water Flow: 4L/min (with water pressure at 220KPa) Cup Fill Water Flow: 3L/min (with water pressure at 220KPa) Brightness Level: 8000Lx – ~ 30000 Lx Color Temperature: 5,000 –... -
Page 10: Operation Instruction
Supply Power: AC 12V, 50/60 Hz Power Consumption: 15 VA Brightness Level: 8000Lx – ~ 30000 Lx Color Temperature: 5,000 – 5,700K Operation Instruction Dental Chair Dental Chair Components ① Adjustable Headrest Cushion ② Back Support ③ Seat ④ Armrest ⑤... -
Page 11: Headrest Position Adjustment
Headrest Position Adjustment Double Articulating Headrest Height Adjustment Push down or pull up the blade from the chair back to change the headrest to the desired height. Angle Adjustment Angle of headrest can be changed by grasping the headrest release lever on headrest release mechanism. -
Page 12: Chair Rotation Adjustment (Optional Upgraded Feature)
Chair Rotation Adjustment (Optional Upgraded Feature) Release the chair rotation lock by turning the hand lock to the right. The chair could manually rotate approximately 20° to either side of its center position. To secure the final position, simply turn the hand lock to the left. -
Page 13: Dental Chair Collision Protection System
3. Push any preset button to assign it to this position. The chair will beep three times to indicate the program is accepted. 4. Program failure is indicated by more than three beeps. Activating Auto Positions 1. Push any preset buttons on the footswitch or touchpad. - Page 14 When the safety switch is activated, the Chair Down function is disabled. The chair down button and the auto position buttons will no longer work. Extensive long use of the chair movement will result in overheating the hydraulic motor and shorten its life span. Make sure that you follow the dental chair duty cycle: 25 sec ON –...
-
Page 15: Dental Unit
Dental Unit Please read through the following sections carefully. Make sure that you understood the operation of the dental unit thoroughly in order to avoid unit operation mistakes during patient treatment operations. The dental unit mainly consist of delivery system, cuspidor, assistant’s system, dental light, side box and the contoured utility center. - Page 16 Master ON/OFF Switch. It controls the air and water supply to the delivery system. Whenever the unit is not in operation, it is recommended to turn the switch to the OFF position to ensure better operation of the air and water control circuit in a long run. ②...
-
Page 17: Doctor Control Head Touchpad Features
Light adjustment button. Doctor Control Head Touchpad Features After connecting power to the dental unit, the LED light on the touchpad will be on. The LCD display screen will indicate the current selection setting. Bowl Rinse Button: Initial Startup Process After connecting power to the dental unit, push the button for initial startup. - Page 18 finish the cup fill delay time reset. The water injection valve will close and the system will beep three times for confirmation on the completion of the new delay time setting. The maximum delay time setting is 26 seconds. Dental Light Button: Push the button to turn on the dental light.
- Page 19 1. Supply water pressure measurement 2. Supply air pressure measurement 3. Water source selection (Tap/Purified) 4. Hot water temperature measurement 5. Current time and calendar Supply Water Pressure Measurement Display When Tap Water is selected to be the water source, the LCD screen will display the supply water pressure reading.
- Page 20 Current Time and Calendar Display The LCD Display has a clock, a calendar and the ambient temperature read out. Once the date and time is updated, the system will be automatically updating the date and time. The clock display can be switched to either 12 or 24 hour modes. The calendar has been pre-programmed from year 1900 to year 2099.
-
Page 21: Delivery System Foot Control
1. Push and hold the button for 2 seconds to get into the year setting. Push the button to increase the year reading. Push and hold the button to increase the year reading rapidly. 2. Push the button again to do the month setting. Push the button to increase the month reading. - Page 22 Supply air must be processed with filtration and purification to satisfy with dental standards. Failure of keeping the supply air clean might affect patient’s health and the quality of the dental treatment. Also, it might affect the life cycle of the unit. Make sure that you turn off the master ON/OFF switch after daily operation.
-
Page 23: Cuspidor And Side Box (Control Box)
Cuspidor and Side Box (Control Box) The cuspidor bowl allows 90 degrees angle rotation that provides easy collection of patient’s saliva during dental treatment. The side box provides the controls of cup fill, bowl rinse, water heater, water volume flow and pressure. ①... -
Page 24: Assistant's Instrumentation
Assistant’s Instrumentation ① High-Volume Evacuator (Hve) ② Saliva Ejector (Se) ③ 3-Way Air/Water Syringe The standard assistant’s instruments includes one HVE, one SE and a three-way air/water syringe. ④ 3-Way Syringe Air Button Air comes out when the air button is pressed ⑤... -
Page 25: Dental Light System
Make sure that you clean or replace the solid collector periodically. Refer to the recommended maintenance schedule for more information. Dental Light System There are two joint connections to allow better angle/location adjustments of the dental light. The dental light can be adjusted to the ideal location during operation. - Page 26 brightness has been set and the programming mode is off. Due to the extreme brightness of the LED technology employed, directing the light beam into the patient’s or user’s eyes should be avoided! Briefly looking into the light beam is also not recommended. FDC-ED 1604 RAV.1...
-
Page 27: Equipment Maintenance Schedule
Equipment Maintenance Schedule Before Each Patient 1. Check dental chair movement, make sure that the control features function normally. 2. Check water and air for leakage. 3. Check for proper water flow, air flow, air turbine rotation, micro-motor rotation and scalar vibration. -
Page 28: Dental Chair Upholstery Cleaning Instructions
Monthly 1. Inspect all handpieces’ motor and O-rings. Replace the O-ring if worn or damaged. 2. Inspect HVE and saliva ejector O-rings. Replace the O-ring if worn or damaged. 3. Check the water and air pressures by reading their pressure gauges. 4. -
Page 29: Electromagnetic Compatibility
Electromagnetic Compatibility All electrical medical devices are subject to special EMC safety measurements and as a result the equipment must be installed and operated according to the installation instruction manual and the user manual. Portable and mobile RF communications equipment could affect the medical equipment. ELECTROMAGNETIC COMPATIBILITY testing was conducted for this product. - Page 30 FDC-ED 1604 RAV.1...
- Page 31 TEST DATA AND ELECTROMAGNETIC ENVIRONMENT GUIDANCE This product is intended for use in the following electromagnetic environment. Users should assure that the product is used in such an environment. IMMUNITY TEST IEC60601 ELECTROMAGNETIC COMPLIANCE LEVEL TEST DATA ENVIRONMENT GUIDANCE Electrostatic ±2, ±4, ±6 kV direct ±2, ±4, ±6 kV direct Floors should be wood,...
- Page 32 commercial or hospital environment level. Note: a. U is the AC mains voltage prior to application of the test level. IMMUNITY TEST IEC 60601 TEST LEVEL COMPLIANCE ELECTROMAGNETIC LEVEL ENVIRONMENT GUIDANCE Conducted RF 3 Vrms 3 Vrms �� = 1. 2 �� IEC 61000-4-6 150 kHz to 80 MHz Radiated RF...
- Page 33 operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating this unit. b. Over the frequency range 150 KHz to 80 MHz, field strengths should be less than 3 V/m. Emissions TEST COMPLIANCE LEVEL TEST DATA ELECTROMAGNETIC ENVIRONMENT...
-
Page 34: Appendix
Appendix Wiring Diagram FDC-ED 1604 RAV.1... - Page 35 FDC-ED 1604 RAV.1...
-
Page 36: Hydraulic Fluid Power Schematics
Hydraulic Fluid Power Schematics Pump: single phase AC hydraulic motor pump six in one solenoid valve P, A, B, C, R: solenoid valve fittings base movement cylinder back movement cylinder SV1: base up solenoid (fluid supply) SV2: base down solenoid (fluid return) SV3: back down solenoid (fluid supply) SV4:... -
Page 37: Delivery System Tray Tubing Diagram
Delivery System Tray Tubing Diagram FDC-ED 1604 RAV.1... - Page 38 FDC-ED 1604 RAV.1...
-
Page 39: Side Box Tubing Diagram
Side Box Tubing Diagram FDC-ED 1604 RAV.1... - Page 40 FDC-ED 1604 RAV.1...
-
Page 41: Contoured Utility Box Tubing Diagram
Contoured Utility Box Tubing Diagram FDC-ED 1604 RAV.1... - Page 42 FDC-ED 1604 RAV.1...
-
Page 43: Dental Chair Required Operating Area
Dental Chair Required Operating Area Note: 1. *contoured utility center size and tubing diagrams are shown on the next appendix. 2. *dental chair front clearance space is required to have at least 70cfm away from the wall. 3. Each dental chair required operating area is 9 m FDC-ED 1604 RAV.1... -
Page 44: Contoured Utility Center Detail
Contoured Utility Center Detail Note: 1. Air supply pipe, water supply pipe and central vacuum pipe are in ½” diameter size. They are all extending 30mm above the ground level. 2. Drainage pipe has diameter size 1.5” to 2”. It is extending 30mm above the ground level. 3. - Page 45 FDC-ED 1604 RAV.1...
-
Page 46: Voltage Transformer Wiring Diagram
Voltage Transformer Wiring Diagram FDC-ED 1604 RAV.1... - Page 47 FDC-ED 1604 RAV.1...
-
Page 48: Circuit Board Schematics
Circuit Board Schematics FDC-ED 1604 RAV.1... - Page 49 FDC-ED 1604 RAV.1...
- Page 50 Warranty Statement All FDC products sold to and installed by dealers are warranted to be free from defects in workmanship and materials for one year from date of purchase. Hydraulic motor pump itself has factory warranty of five years. During this period, FDC will replace any defective part at no charge to the customer. FDC however, WILL NOT be responsible for dealer or service company labor charges or shipping charges.
