QUICK START GUIDE

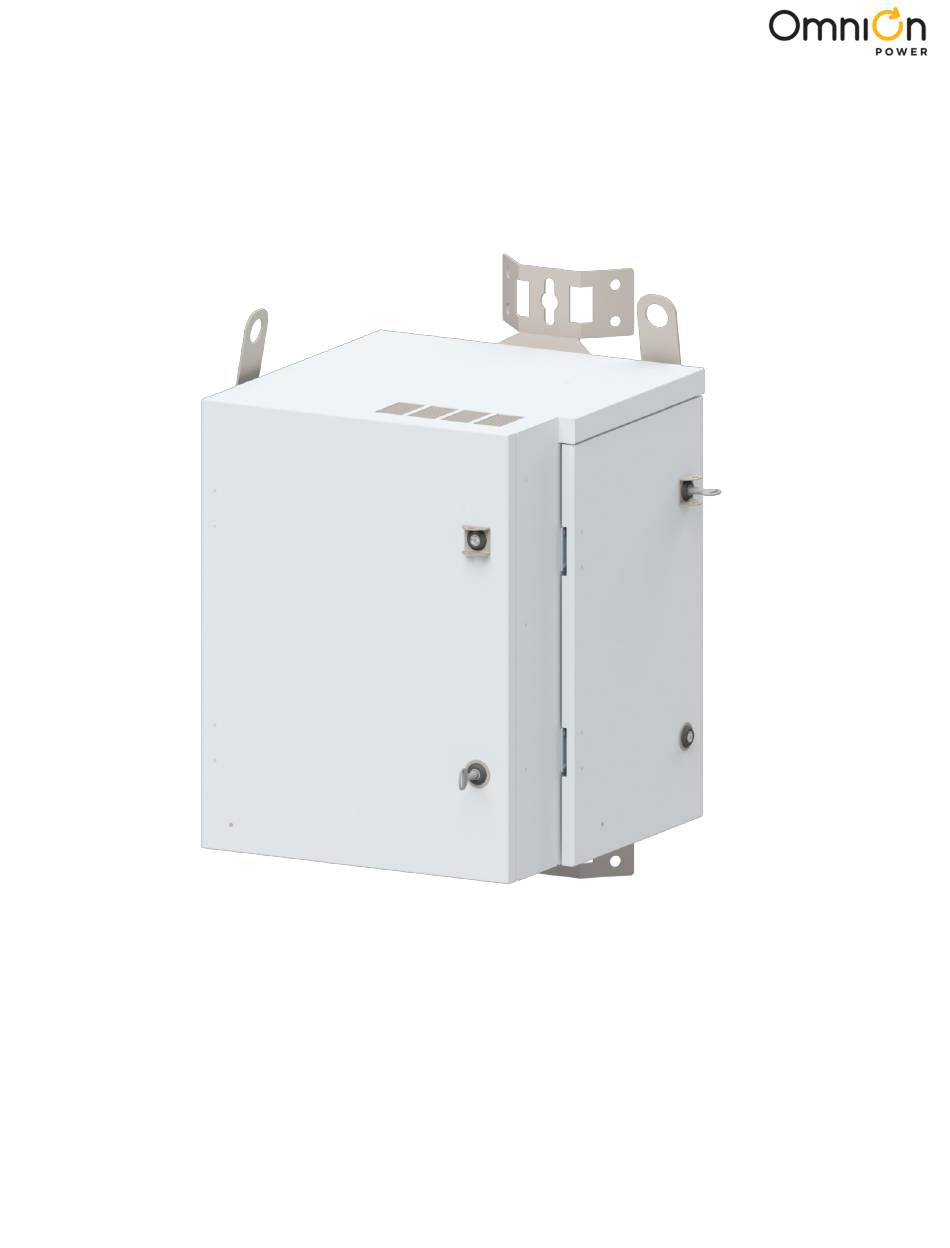

SC1024 CC1600 6U FAN COOLED SIDE MOUNT
Quick Start Guide – 1600439872A
This manual is intended as a guide in assisting equipment understanding and installation. The cabinet SC1024 CC1600
6U FAN COOLED is a pole mount cabinet with CC1600SC55SXZ01A rectifier along with a separate space for customer
equipment and has two AC inputs supplied through two circuit breakers which are mechanically interlocked. The AC
input is fed from a utility source and upon failure Generator can be used to fed the AC input through a mechanical
interlocked transfer breaker. The cabinet is air cooled. Rectifier Unit CC1600SC55SXZ01A rated input AC voltage is from
120/240V 3W+PE and cabinet provides DC output rated -48V at 1600watts. The cabinet is equipped with 19 – in Rack
Mount, 6 RU space for mounting Customer Equipment , a DIN rail to provide DC distribution, and a 120VAC
convenience outlet. Maximum weight for the customer equipment not to exceed 130 lbs (59 Kgs).
Document – 8600468490P
Page 1
© 2023 OmniOn Power Inc. All rights reserved.
SC1024_QSG
Rev. 1.1
Advertisement
Table of Contents
Related Manuals for OmniOn Power SC Series
Summary of Contents for OmniOn Power SC Series
- Page 1 Mount, 6 RU space for mounting Customer Equipment , a DIN rail to provide DC distribution, and a 120VAC convenience outlet. Maximum weight for the customer equipment not to exceed 130 lbs (59 Kgs). Document – 8600468490P Page 1 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
-
Page 2: Safety Statements
Grounding – Connect the equipment chassis directly to ground. In enclosed equipment cabinets connect to the cabinet AC service ground bus. In huts, vaults, and central offices connect to the system bonding network. Page 2 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... - Page 3 à l’armoire AC service ground bus. Dans les huttes, les coffres – forts et les bureaux centraux se connectent au réseau de liaison du système. Page 3 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
- Page 4 Personnel with electronic medical devices need to be aware that proximity to DC power and distribution systems, including batteries and cables, typically found in telecommunications utility rooms, can affect medical electronic devices, such as pacemakers. Effects decrease with distance. Page 4 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
-
Page 5: Précautions À Prendre
CC, y compris les batteries et les câbles, que l’on trouve généralement dans les salles de télécommunications, peut affecter les appareils électroniques médicaux, tels que les stimulateurs cardiaques. Les effets diminuent avec la distance. Page 5 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... -
Page 6: Equipment Identification
The product ID label on door of AC compartment of SC1024 model is shown below. It includes the product serial number and input – output specifications of the cabinet. Figure 2 Product ID Label Information Customer Care +1 877 546 – 3243 Page 6 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... -
Page 7: Site Preparation
Remove the bracket used to hold the cabinet to pallet. holding bracket Retain the screws, for pole mount bracket assembly. Check the parts for damages. Cabinet holding screws Figure 3 Holding bracket Page 7 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... -
Page 8: Cabinet Preparation
Side holes to be used for lag bolts added strength Holes used for mounting bracket to side of the cabinet Figure 4 Mounting bracket Figure 5 Cabinet with attached pole mount bracket Page 8 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... -
Page 9: Step 2 - Ground The Unit
Place the cable lug on grounding hole and connect to the cabinet with bolts. Torque the bolts to 30 in–lbs (3.4 Nm) – flat blade screwdriver. Figure 7 Cabinet grounding Page 9 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... - Page 10 3 captive screws of the lower dead – front covers and 4 captive screws of upper dead front. Lower dead front cover screws Figure 10 Upper and lower dead front screws Page 10 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
- Page 11 Insert the AC cables through the punched holes/conduit. Bring AC wires L1 and L2 toward the AC input breaker and terminate the neutral wire into the terminal block. Insert AC cables Figure 13 AC utility input Page 11 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
- Page 12 AC input cap damage insulation and cause a short circuit. Close the socket lid. Close the generator AC input waterproof cap with the Figure 15 Generator AC input screw. Page 12 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
- Page 13 Knockout holes and route the equipment cables Equipment Mounting space Figure 16 DC output connections and Space for equipment mounting Figure 17 DC side knockout holes Page 13 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
- Page 14 Connected devices must provide their own suitable DC input transient suppression as dictated by the equipment’s vendor for the installation site environment or per company or industry standards (e.g., ITU K series standards). Page 14 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
-
Page 15: Spare Parts List
, Ball QFR1248GHE/QFR1248GHE–SP01 Bearing, Lead Wires, Locked Rotor Sensor 1600131299A CC1600SC55SXZ01A Rectifier 7T.81.0.000.230x Ventilation control – Blue Dial (Thermostat) 357 – 011 – 160 POLY KLEAN AFP10 707 Page 15 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... -
Page 16: Schematic Diagram
Schematic diagram Figure 22 Schematic diagram Page 16 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1... - Page 17 Change History (excludes grammar & clarifications) Rev. Description Date Dept./Inti Initial release 10/28/2022 Updated as per OmniOn template 03/05/2024 Page 17 © 2023 OmniOn Power Inc. All rights reserved. SC1024_QSG Rev. 1.1...
- Page 18 – in whole or in parts – is forbidden without prior document and makes no warranty with respect to written consent of OmniOn Power. This document does and assumes no liability as a result of any use of not convey license to any patent or any intellectual information in this document.
