QUICK START GUIDE
3U DIN Distribution Shelf - 19 in Rack Mount
J2012001 - multiple models - See SPS, NE, or CP Brochure for details of models
The distribution shelf may be installed as a component of a power systems or as a stand-alone remote distribution
(cabled input power). Some models include battery connections. Some models include battery connections and battery
contactors.
Controller: All power systems have a controller. It may be located in the primary rectifier shelf or in the distribution
shelf. If the power system has a primary rectifier shelf (with controller), install the distribution shelf
immediately above it.
Refer to SPS, Infinity S (NE S), or CPL Brochure for details, circuit breakers, and accessories.
Document: 850037453
Page 1
2023 OmniOn Power. All rights reserved.

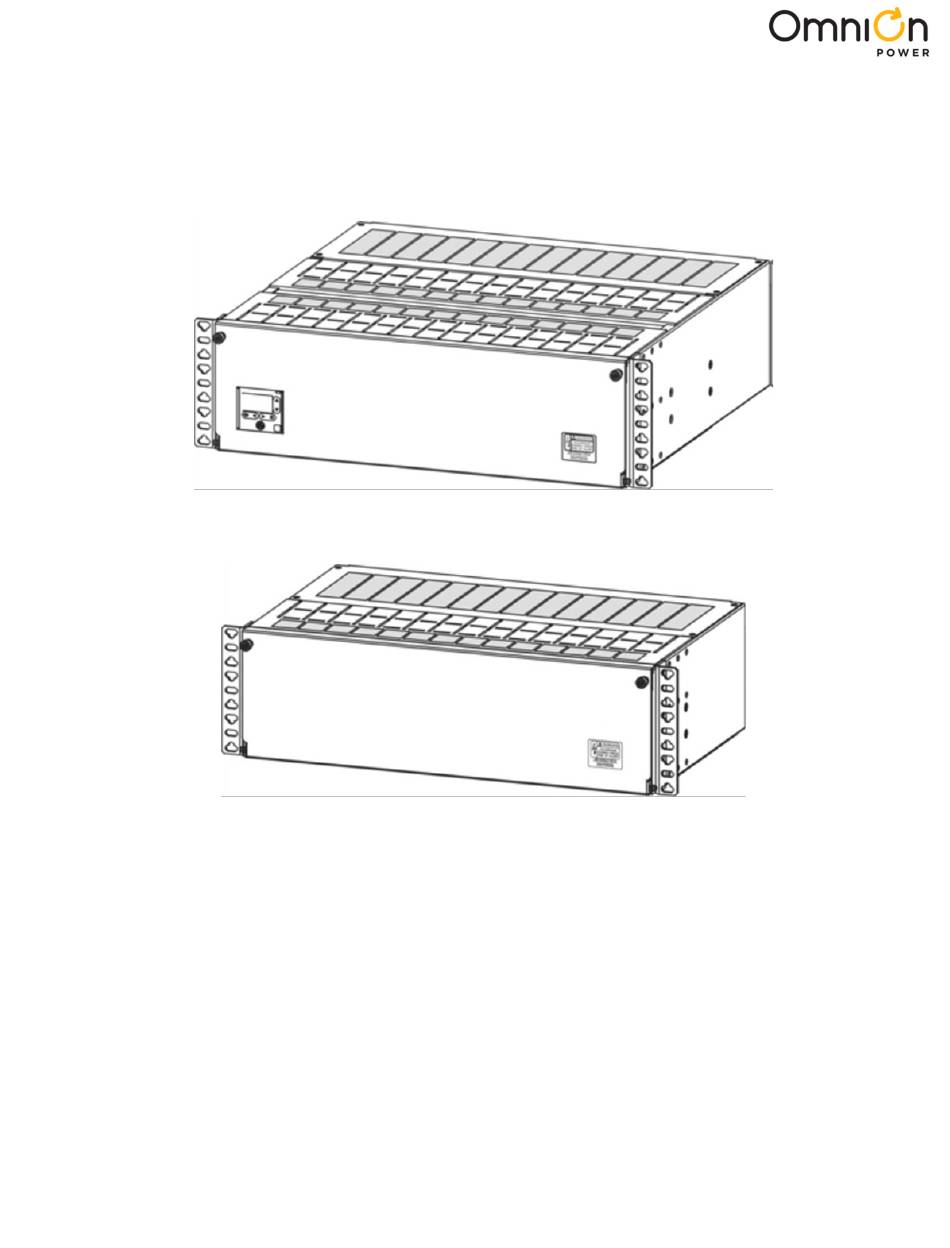

17" deep Shelf (NE & CP compatible)
11" deep Shelf (SPS compatible)
J2012 3U DIN Dist Panel_QSG
Rev.3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J2012001 and is the answer not in the manual?

Questions and answers

Related Manuals for OmniOn Power J2012001

Summary of Contents for OmniOn Power J2012001

  • Page 1 QUICK START GUIDE 3U DIN Distribution Shelf - 19 in Rack Mount J2012001 - multiple models - See SPS, NE, or CP Brochure for details of models 17” deep Shelf (NE & CP compatible) 11” deep Shelf (SPS compatible) The distribution shelf may be installed as a component of a power systems or as a stand-alone remote distribution (cabled input power).

  • Page 2: Safety Statements

    This equipment is not suitable for use in locations where children are likely to be present. • Installation in restricted access areas only. Note: Proper grounding of AC supply receptacles must be verified by qualified personnel. Page 2 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 3 Installation dans des zones à accès restreint uniquement Remarque: La mise à la terre adéquate des prises d’alimentation en courant alternatif doit être vérifiée par du personnel qualifié. Page 3 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 4 Personnel with electronic medical devices need to be aware that proximity to DC power and distribution systems, including batteries and cables, typically found in telecommunications utility rooms, can affect medical electronic devices, such as pacemakers. Effects decrease with distance. Page 4 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 5 électroniques médicaux, tels que les stimulateurs cardiaques. Les effets diminuent avec la distance. Page 5 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 6 250A Notes: • All J2012001 List have a 10kA interrupt rating. • All charge and discharge ratings are at 45°C ambient except L019BP and L019BLP which are at 65°C ambient. For ratings beyond the listed ambient temperature, contact OmniOn Power Page 6 2023 OmniOn Power.

  • Page 7: Tools Required

    Lug Landings - 2 x 1/4” on 5/8” center, 0.7” (18mm) max. tongue width. Connect cables with suitable lugs to -48V & -48V bus Connections RETURN. Torque to 4Nm (35in-lb) - 8mm (8mm)socket. covers removed Page 7 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 8 1. Connect alarm wire to battery breaker (wires provided). Connect Fastons to breaker terminals. Terminal 11 - Red Terminal 12 - Black Page 8 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 9 Battery Return Battery Connection Connection Battery Return Bus Alarm Card Release Levers HDR3 Push to release DIN Rail Engagement Breaker Bottom Connections Bus Tabs Alarm Wires Page 9 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 10 Step 8 - Label Connections ID label is in front of the breakers or on the door. Mark each connected circuit identification on the ID label. ID Label Example Page 10 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 11 J1-2 Alarms - detachable block - Wire to office alarms and signals. See Information: Alarm Connections for alarm connection details J5 LAN - Connect to Ethernet network. Page 11 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 12 Bottom View Rectifier Shelf without controller typical OmniOn Device Comm Cable - to Rectifier Shelf OmniOn Device Comm Cable - a shipped Controller in Distribution Shelf Page 12 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 13 Output: R4 = FAJ Output: PMJ Output: R4 = Rtn Only with 6 relay controllers (...6R…). Returns for R1 and R4 are bridged. Other returns are isolated. Page 13 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...

  • Page 14: Reference Documents

    CC848815341 Pulsar Edge Controller Family Product Manual 850035894 Galaxy Pulsar Edge Quick Start Guide SPS Brochure Infinity S (NE S) Brochure Compact Power Line (CPL) Brochure Page 14 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...

  • Page 15: Ordering Information

    Temperature/Voltage probes are needed for battery monitoring. They are connected to each battery or battery string to provide slope thermal compensation, temperature alarms and voltage imbalance alarms. Page 15 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 16 Ordering Information (Continued) Battery Monitoring (Continued) Temperature Measurement Temperature and Voltage Measurement Page 16 2023 OmniOn Power. All rights reserved. J2012 3U DIN Dist Panel_QSG Rev.3.1...
  • Page 17 – in whole or in parts – is forbidden document and makes no warranty with respect to without prior written consent of OmniOn Power. This and assumes no liability as a result of any use of document does not convey license to any patent or information in this document.
