Summary of Contents for HOTO Compressed Air Capsule

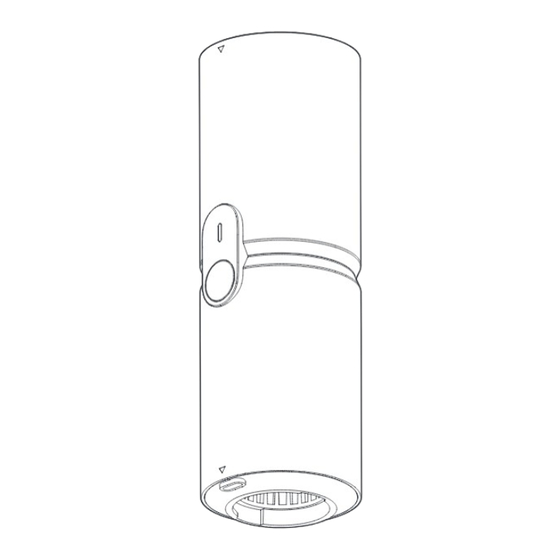

- Page 1 HOTO Compressed Air Capsule...
- Page 3 Stay tuned to our social media (@hoto_official)
-
Page 4: Safety Instructions
01 Safety Instructions Warning! Please read all safety warnings, instructions, illustrations, and rules provided along with the product and keep all warnings and instructions for reference. Read this manual carefully before use, and retain it for future reference. This product will make noise around 75dB when working. Please be careful. This product is not a toy, and children are forbidden to use it. -
Page 5: Product Overview
HOTO Compressed Air Capsule enables vacuum cleaning, inflating, dust blowing and vacuum deflating after the accessories are installed. For details, please visit the sales page or contact Hoto customer service. The images shown are for illustration purposes only and may not be an exact representation of the product. - Page 6 Vacuum cleaning accessories Dust cup (including a Movable brush HEPA and metal filter) vacuum head Inflating/deflate valve Short air valve Long air valve Swim ring air valve Vacuuming connector Vacuum deflating connector...
- Page 7 03 How to Use Battery indicator and charging Battery indicator When the product is working, its battery indicator light is on. When the power is ≥ 20%, the white indicator light always stays on. When the power is ＜ 20%, the red indicator light always stays on, indicating that the product needs charging.
- Page 8 Turn-on/Turn-off/Gear switch Turn-on Press and hold the ON/OFF button for 1.5 seconds to turn on the machine and make it work. Turn-off When the machine is working, press and hold the ON/OFF button for 1.5 seconds to make it stop working and turn it off. Gear switch The machine will run in high gear by default after being turned on.
- Page 9 Installation and cleaning of the vacuum cleaning accessories Installation of the dust cup Please align the dot marking on the dust cup with the unlocking marking on the machine body, insert the dust cup, and rotate it clockwise to tighten it up. When the dust cup is installed, the dot marking on the dust cup will be aligned with the locking marking on the machine body.
- Page 10 Installation of the movable brush vacuum head After the dust cup is installed, insert the movable brush vacuum head into the dust cup according to the arrow as illustrated. When it is fully inserted, there will be an obvious gear sense, indicating that the vacuum head is fully installed.
- Page 11 Removal and installation of the HEPA in the dust cup 1. Press the dust cup lid and then rotate to screw it out. 2. Take out the internal filter and remove the dust in the dust cup. 3. If you want to change the HEPA for a new one, please rotate the metal gauze on the filter to remove it and then rotate and install the new HEPA and metal gauze.
- Page 12 Installation of the air valve and connector Installation of the air valve Please align the bump on the air valve with the groove on the inflating/suc- tion port, insert the air valve, and rotate the air valve clockwise to tighten it up.
- Page 14 Attention Please use the product with caution when the pressure allowed by the balloon is smaller than the max inflating pressure of the product. Please do not use accessories other than the components of the dust cup for vacuum cleaning, as the intrusion of fine dust may damage the product. 04 Precautions This product is not a toy, and children are forbidden to use it.
- Page 15 Please turn off the machine immediately if it makes a strange voice or overheats when working. Please do not leave during the inflating. Observe the inflating process to prevent the inflating pressure from being too high. Please use the product in a dry and clean environment, as the product is not waterproof.
-
Page 16: Troubleshooting
06 Troubleshooting Issues Solutions Fail to turn this product on Turn on the machine after charing for a while 1. Check whether the power is sufficient. 2. Check whether accessories are fully Slow inflating installed. 3. Check whether the air outlet is fully connected to the air valve of the inflated object. -
Page 17: Specifications
07 Specifications Name: HOTO Compressed Air Capsule Model: QWCXJ001 Item Dimensions: Approx. 55×56×163.5mm (bare machine， without accessories) Net Weight: Approx. 356g Color: Black Max Suction: 15000 Pa Storage Temperature: -10℃~45℃ Battery Type: Lithium-ion battery Battery Capacity: 1900mAh Operating Noise: Around 75dB Rated Input: 5V Rated Power：... -
Page 18: Regulatory Compliance Information
08 Regulatory Compliance Information Europe — EU declaration of conformity We, Shanghai HOTO Technology Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. Disposal and recycling information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. - Page 19 Federal Communications Commission Supplier’ s Declaration of Conformity This supplier’s declaration of conformity is hereby for Product: HOTO Air Compressed Machine Model Number(s): QWCXJ001 Brand/Trade: HOTO We declare that the above mentioned device has been tested and found in compliance with CFR 47 Part 15 Regulation.
- Page 20 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Representative of Responsible Party for SDoC Company: Shanghai HOTO Technology Co., Ltd. Address: Building 45, No.50 Moganshan Road, Shanghai, China Country: China Telephone No.: 400-021-8696 Manufacturer: Shanghai HOTO Technology Co., Ltd.
- Page 21 DECLARATION OF CONFORMITY EU Declaration of Conformity Shanghai HOTO Technology Co., Ltd. Declare that the product: HOTO Compressed Air Capsule / QWCXJ001 Complies with the essential health and safety requirements of the following directives: 2014/30/EU Electromagnetic Compatibility directive References to the...
