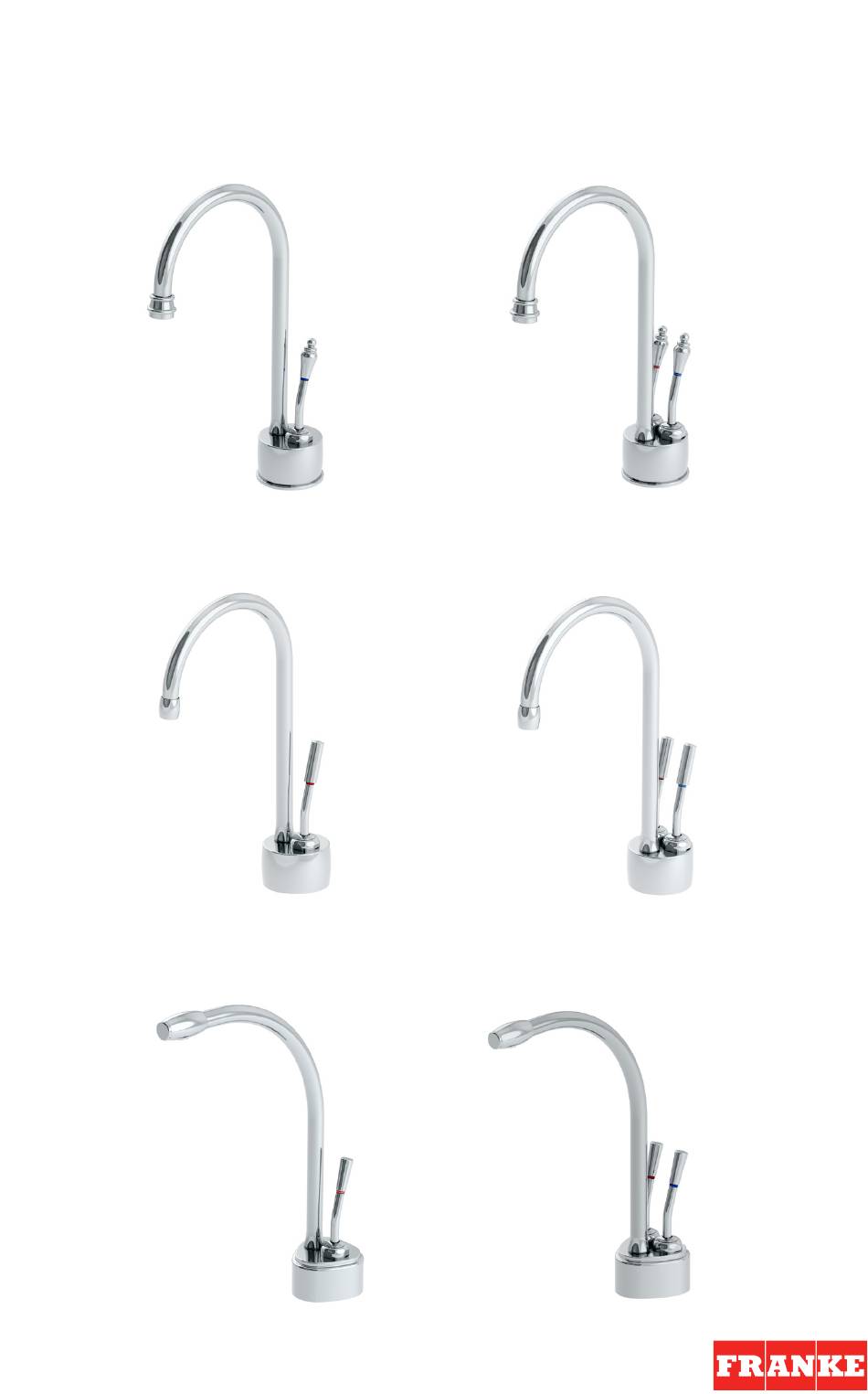

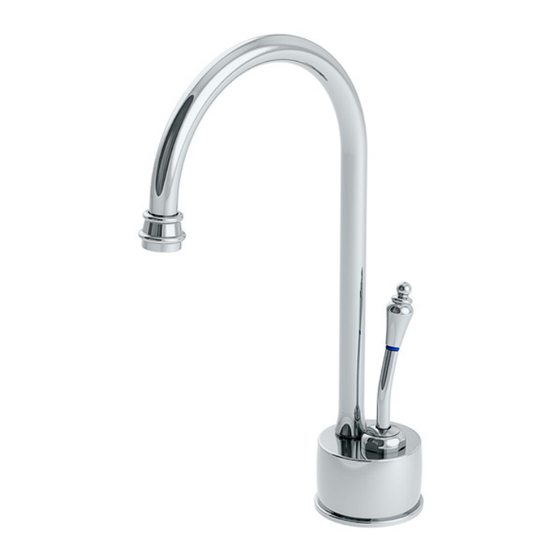

- Page 1 INSTALLATION GUIDE Little Butler® Hot Water Dispensing Faucets and Drinking Water Dispensing Faucets DW6100C & LB6200C Series LB6100C Series DW7000C & LB7200C Series LB7100C Series DW9000C & LB9200C Series LB9100C Series MAKE IT WONDERFUL Rev 1 - 8/4/2017...
-
Page 2: Technical Data
Water Act of 2014. INSTALLATION INSTRUCTIONS Remove all contents from the package and check for completeness. NOTE: Call immediately if you see inconsistencies. (1-800-626-5771) or visit www.franke.us/ks.com Installation Tools: 5/8” [16mm] - Mounting Nut Drinking Water Series Faucets (DW_ _00C) Package Contents:... - Page 3 Installation Little Butler® Series Hot only Faucets (LB_100C) Package Contents: 1 - Faucet (item pictured may differ from faucet you have. See front cover for accurate illustration) 2 - Fastening Set (1 - O-Ring) (1 - Mounting Washer) (1 - Mounting Spacer) (1 - Mounting Nut) 3 - Cold Water Supply Tubing (black 3/8”...
-
Page 4: Installation
Hot Water Installation Options: The LB_200C Series dispensers offer hot and filtered water separately. These dispensers must be used in conjunction with both a Franke heating tank unit and a Franke filtration system. They utilize 4 tubes to connect to the system. - Page 5 Installation It is recommended to take the components and locate their optimum positions before starting the installation. Make sure there is adequate clearance for the dispenser handle(s) to open fully without interference. Make sure all plumbing and electrical connections will reach the intended mounting positions for all the components and there will be no obstructions or sharp bends in plumbing.
- Page 6 Installation Ensure proper hole is in place for the faucet. This faucet is designed for a 1-3/8” (35mm) mounting hole. Be- fore inserting the faucet in the hole in the sink or counter top, make sure the O-ring is positioned in its seat. All supply hoses are factory installed for convenience and to ensure a proper connection.
- Page 7 Installation Take the black 3/8” poly-tubing from the faucet and connect it to the outlet of the filtration system as outlined in the filtration system instructions. If you decide not to utilize a filtration system with your LB_100 Series faucet, you must provide a connection for the black 3/8”...
- Page 8 Usage Push the handle(s) back to turn on the water supply and foreward to turn the water off the water supply. Note: The spout has a 360° swivel capability COLD WARNING! Do not operate both handles at the same time, as this can build up pressure in the heating tank causing the bladder to expand and eventually burst.
-
Page 9: Maintenance
MAINTENANCE Trouble Shooting PROBLEM POSSIBLE CAUSE RECOMMENDED ACTION Water spews and -The heating tank is boiling Lower temperature steams forcefully because temperature setting adjustment on the heating from spout with the it too high tank. Turn on faucet lever dispenser in the off and run water until stream position -The heating tank is boiling... -
Page 10: Replacement Parts
Replacement Parts Replacement Part # for Identified Part #3 Lever Assembly #7 Cold #8 Cold Cartridge Cartridge (see chart below Mounting Mounting Mounting Water Water Model # 1/4”x1/4” 9000 for all series) Washer Spacer Supply Supply x3/8” Series Assembly Tubing Tubing Y-Fitting Flow... -
Page 11: Warranty
Franke accepts no liability for such damages. The Franke warranty is limited to the above condition and to the warranty period specified herein and is exclusive. Franke DISCLAIMS all other warranties, expressed or implied, including the IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. - Page 12 Franke Kitchen Systems, LLC 800 Aviation Parkway Smyrna, TN 37167 Phone: 1-800-626-5771 Fax: 1-888-685-0007 www.franke.us/ks.com...
