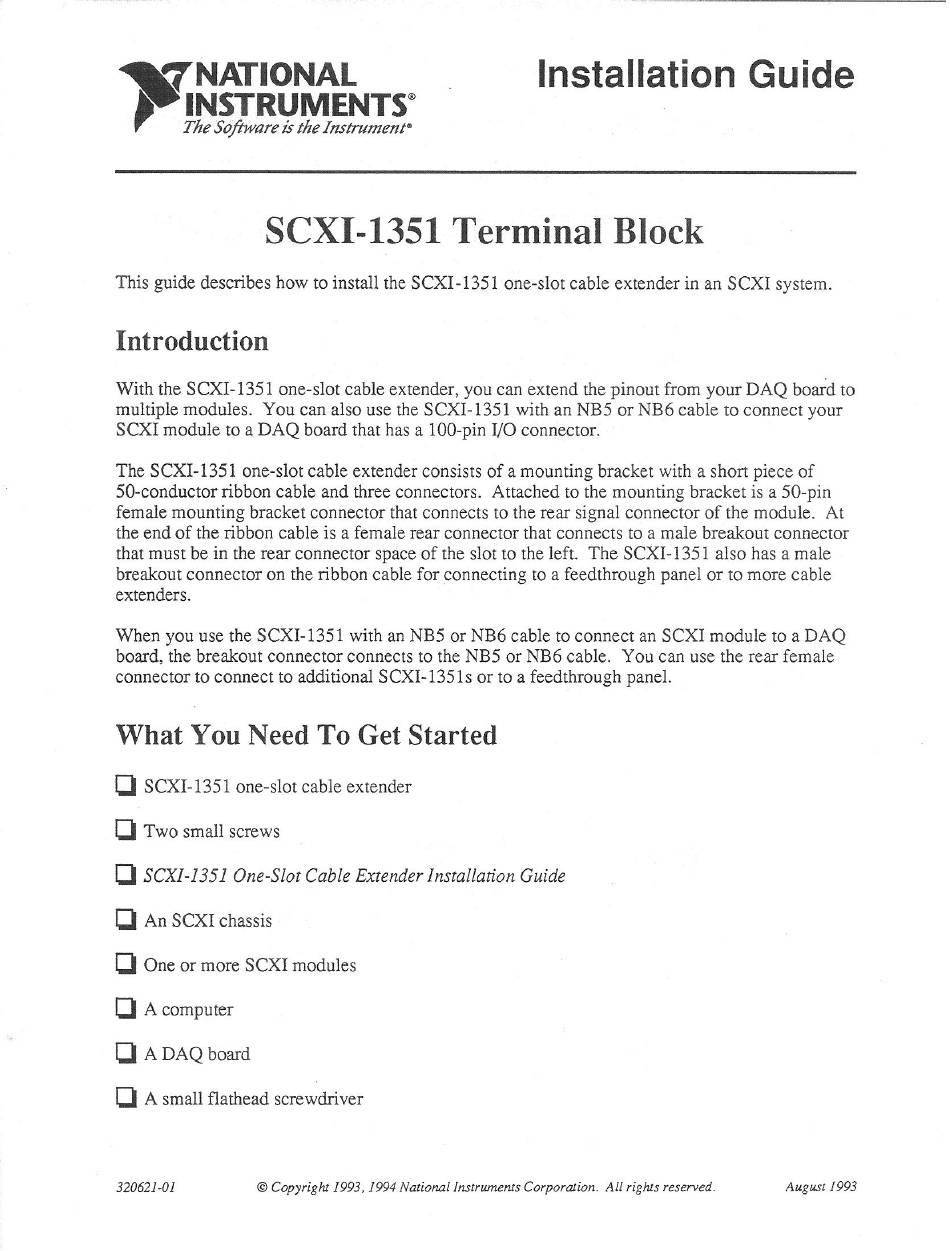

National Instruments SCXI-1351 Installation Manual

Installation Guide
SCXI-1351 Terminal Block
This guide describes how to install the SCXI-1351 one-slot cable extender in an SCXI system.
Introduction
With the SCXI-1351 one-slot cable extender, you can extend the pinout from your DAQ board to
multiple modules. You can also use the SCXI-1351 with an NB5 or NB6 cable to connect your
SCXI module to a DAQ board that has a loo-pin I/O connector.
The SCXI-1351 one-slot cable extender consists of a mounting bracket with a short piece of
50conductor ribbon cable and three connectors. Attached to the mounting bracket is a 50-pin
female mounting bracket connector that connects to the rear signal connector of the module. At
the end of the ribbon cable is a female rear connector that connects to a male breakout connector
that must be in the rear connector space of the slot to the left. The SCXI-1351 also has a male
breakout connector on the ribbon cable for connecting to a feedthrough panel or to more cable
extenders.
When you use the SCXI-1351 with an NB5 or NB6 cable to connect an SCXI module to a DAQ
board, the breakout connector connects to the NB5 or NB6 cable. You can use the rear female
connector to connect to additional SCXI-1351s or to a feedthrough panel.
What You Need To Get Started
5 SCXI-1351 one-slot cable extender
cl Two small screws
u SCXI-1351 One-Slot Cable Extender Installation Guide
a An SCXI chassis
D One or more SCXI modules
D A computer
u A DAQ board
# A small flathead screwdriver
320621.01
0 Copyright 1993, I994 Notional lnrtmments Corpora&w. All rights reserved.
ALL,p.G 1993
