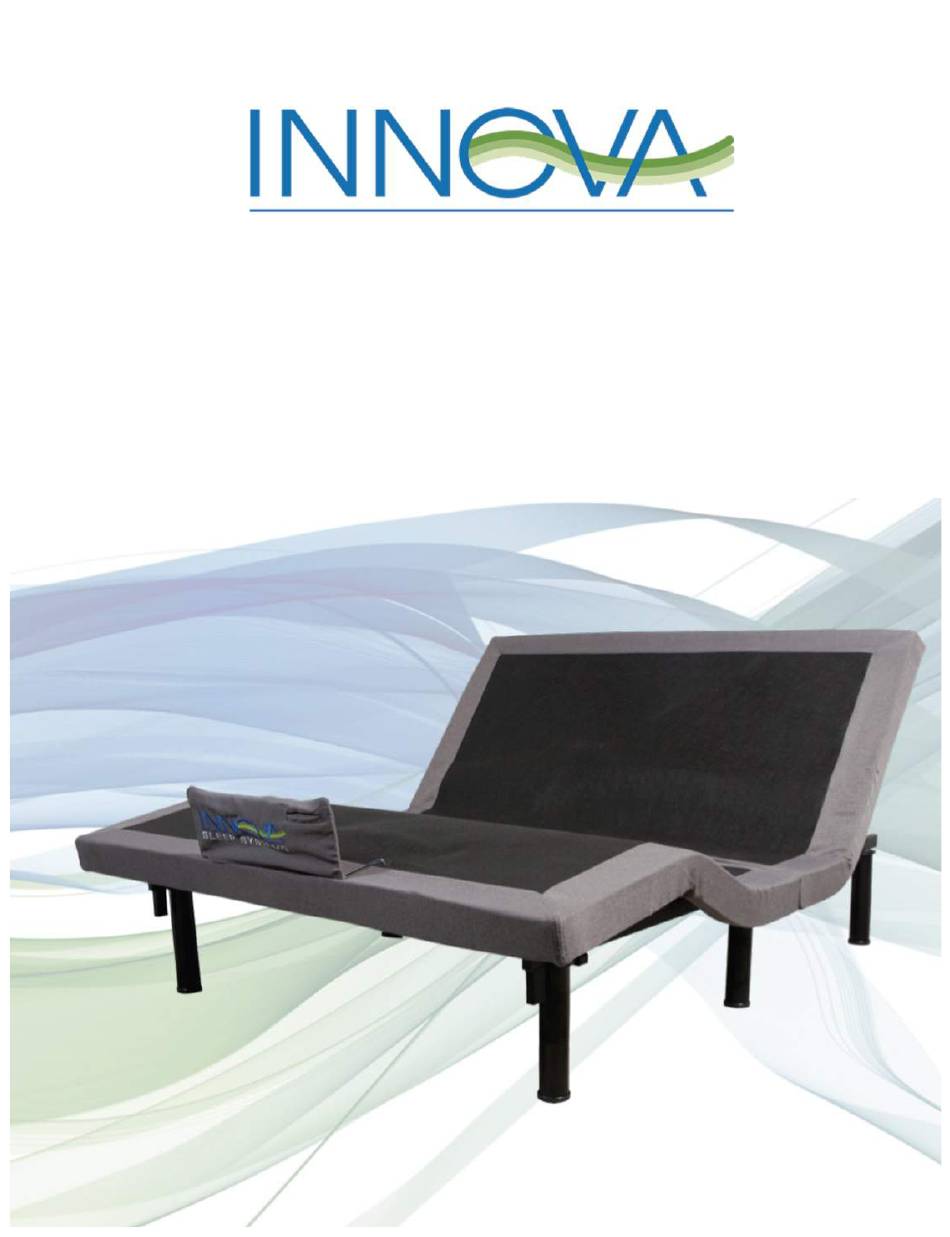

- Page 1 SLEEP SYSTEMS OWNER’S MANUAL ELE-33/46/50 Wired...
-
Page 2: Table Of Contents
Table of Contents Precautions ..................Parts List ....................Installation Guide ................... Remote Control Instructions ..............Warranty Info……………………………………………………..………….. -
Page 3: Precautions
PRECAUTIONS WARNING Read the following information before using this product. Failure to adhere to these terms and precautions could compromise safety, cause product malfunction and/or void a portion of your warranty. Electrical power surges are a leading cause of problems with electrical circuits. In order to help protect your investment in case of a power surge or outage, use an electrical surge protection device (not included). - Page 4 PRODUCT RATINGS: The product’s lift motors are not designed for continuous use of more than 2 minutes in an 18 minute period, or approximately 10% duty cycle. Any attempt to circumvent or exceed this rating will shorten the life expectancy of the product and may void the warranty.
- Page 5 FCC COMPLIANCE: This device complies with part 15 of the FCC Rules for residential use. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Parts List
PARTS LIST Check and verify all parts are included before discarding any packing materials. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. B) Mattress Retainer Bar (1) A) Wired Remote C) Legs (6) Control (1) D) Power Cord (1) -
Page 7: Installation Guide
SET UP & INSTALLATION Step 2: With two able-bodied people, place carton on floor and remove the lid on the box. Step 3: It is recommended to test the bed while still in the box before fully setting up. • Connect the Transformer “E” to Control Connector “F”. •... - Page 8 Step 4: Plug the Power Cord into a grounded electrical outlet. A surge protector is recommended. Using the Wired Remote Control, push the HEAD UP button and then push the FOOT UP button (Figure 2). If the motors are working, skip to step 5. NOTE: The actuator is a gravity down motor, which needs weight to be lowered.
- Page 9 Step 5: Unplug the Power Cord. Install the six legs firmly into the base of the frame. The legs screw into the threaded holes around the perimeter of the adjustable base frame (See Figure 5). The legs are stackable. The combination gives you a set of six 4", 7" or 11” legs. The minimum height for this base is 4”.
- Page 10 Step 7: Note: The Mattress Retaining Bar is mounted upside down for shipping only . Remove the Mattress Retaining Bar in the foot section of the bed and turn the bar upright and reinstall by carefully aligning and pushing the bar into place. Insert the Mattress Retaining Bar into the holders at the foot of the bed.
-
Page 11: Remote Control Instructions
Wired Remote Control Instructions For toll-free customer service, call 1-877-386-1373 (US) or email us: service@innovasleep.com Please tell us your name, phone, address, Model Name and/or Model ID (found on the law label tags, which are stapled to the head of the base), purchase date, and the question or concern when you call/email. -
Page 12: Warranty Info
OR REPLACEMENT AS DESCRIBED BELOW. WHO MAY USE THIS WARRANTY? Innova Sleep Products, Inc. (“Innova”) extends this limited warranty only to the consumer who is the original purchaser of a new Product (the “Purchaser”). It does not extend to any subsequent owner or other transferee of the Product. Floor model Products and Products sold expressly “as is”... - Page 13 With respect to any defective Product or part thereof (as listed above) during the first year of the Warranty Period, Innova will, in its sole discretion, either: (i) repair such Product (or the defective part) free of charge to the Purchaser, or (ii) replace the Product (or the defective part) with new or refurbished Product(s) or part(s) free of charge to the Purchaser.
- Page 14 Purchaser to provide adequate space and accessibility to the Product. In the event that Innova is unable to perform service due to lack of accessibility, the service call will be billed to the Purchaser and the service will have to Finding Law Label be rescheduled.
- Page 15 INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, INNOVA LIMITS THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO THE DURATION OF THIS WRITTEN WARRANTY.
- Page 16 WHEN TWO BEDS DO NOT ALIGN: On the higher angled bed of the two, use a 19mm wrench to turn the nuts on the Level Right mechanism counterclockwise to adjust the angle until the higher angle bed matches the level of the lower angle bed and lock the nut with the reinforcement nuts.
- Page 17 For toll-free customer service, call 1-877-386-1373 (US) or email service@innovasleep.com Please tell us your name, phone, address, Model Number/ID (found on the law label tags, which are stapled to the head of the base), purchase date, and the question or concern when you call or email.
