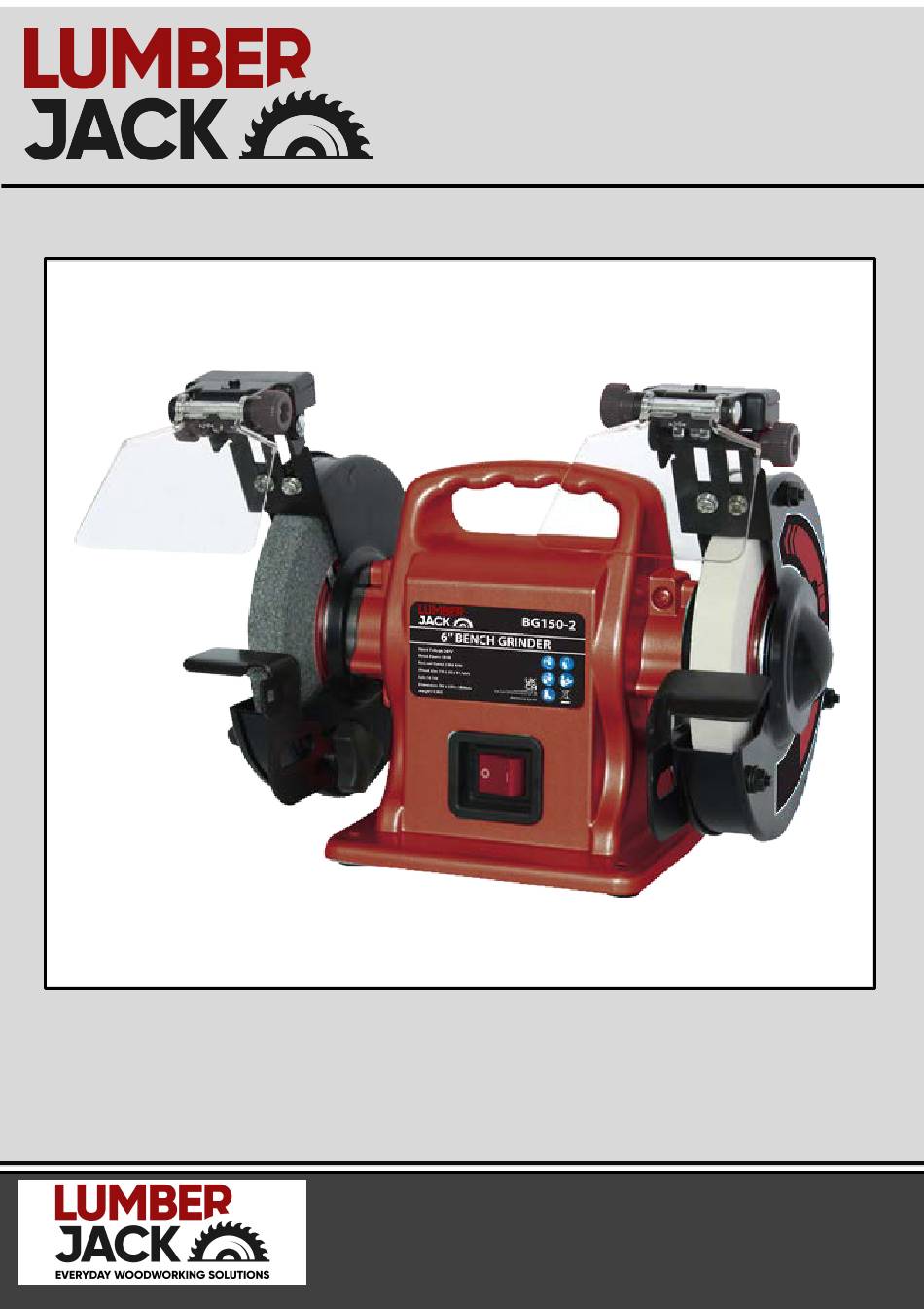

- Page 1 SAFETY AND OPERATING MANUAL 6" BENCH GRINDER BG150-2 ORIGINAL INSTRUCTIONS BG150-2...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this Bench Grinder with sanding belt. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. WORK ENVIRONMENT 1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite accidents 2. -
Page 4: Electrical Safety
3. NEVER abuse the mains cable. Never yank the cable to disconnect it from the socket. Keep the cable away from sharp edges/hot surfaces. 4. NEVER carry out any alterations or modifications to this product. 5. NEVER wipe the machine clean with solvents. Wipe plastic parts with a soft cloth, slightly dampened with soapy water. -
Page 5: Grinding Stone Safety
4. When operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock. GRINDING STONE SAFETY 1. Check the speed of the grindstone before fitting to your grinder. Never use a stone with a rpm speed less than the rpm speed of your grinder. -
Page 6: Bench Grinder Safety Warnings
BENCH GRINDER SAFETY WARNINGS 1. Hold a hand tool or blade being sharpened firmly to prevent loss of control. 2. Never install a abrasive flap wheel or sanding disc on this grinder. 3. Always replace a cracked grinding wheel immediately. 4. -
Page 7: Specifications
SPECIFICATIONS Feature Value 365 (H) x 250(W) x 280 (D) Overall Dimensions Weight Grinding Stone Dimensions 150 dia x 20 mm thickness (12.7 mm bore) Rated Voltage / Frequency 230 V / 50 Hz 250W Motor Wattage 2980 No Load Speed Duty Cycle Classification 2 minutes on/2 minutes off Grit... - Page 8 OVERVIEW Description Eye Shield LED Light W A Grinding Wheel (60 Grit) Right Tool Rest (V Grooved) ON / OFF Switch Tool Rest Lock Knob Left Tool Rest Coarse Wheel (36 Grit) Spark Guard...
- Page 9 ASSEMBLY Assembly And Adjustments Estimated Assembly Time: 10 - 20 Minutes. • To avoid injury, do not connect this bench grinder to the power source until it is completely assembled and adjusted, and you have read and understood this Instruction Manual. •...
- Page 10 INSTALLING THE LED LIGHT AND EYE SHIELD ASSEMBLY (FIG. B, C) 1. Bag "F" - Tighten the LED light assembly (1) to grinder with two composite screws (2) using a Philips screwdriver. (Fig. B) 2. Bag "D" - Attach one eye shield (3) to the support bracket (4) of the LED light assembly.
- Page 11 MOUNTING THE TOOL ON A WORKBENCH (FIG. I} NOTE: FIRMLY BOLT THE GRINDER TO A WORK BENCH OR LEG ST AND to gain maximum stability for your machine. 1. Using the base of the bench grinder as a Fig, I template, mark the bench through tw o holes (1) in the casting.
-
Page 12: General Operation
Starting And Stopping The Grinder (Fig. K) To avoid injury, always keep the plug disconnected from the power source and switch turned OFF until the grinder is completely assembled and adjusted properly. The ON/OFF switch (1) is located on the front of the grinder. - Page 13 SCISSORS KNIVES If possible, take the scissors apart to make the sharpening operation easier and safer. Remove material only from the outside surface and work from the heavy end of the blade toward the tip. Remove metal from both faces of most knives, working from the heavy end of the blade toward the tip.
- Page 14 DRESSING A GRINDING WHEEL (FIG. M) Bring the dressing tool forward on the tool rest until it touches the high point on the face of the wheel. Dress the wheel by moving the dressing tool back and forth. Repeat this operation until the face of the grinding wheel is clean and the comer of the wheel is square.
-
Page 15: General Maintenance
MAINTENANCE GENERAL MAINTENANCE Make sure that all components are tight and secure. Always have any damaged or worn parts repaired or replaced by qualified service personnel. Do not attempt to repair the bench grinder unless you are qualified to do so. The grinding stone will wear down with use and may well go out of true. -
Page 16: Declaration Of Conformity
TOOLSA VE LTD Unit C, Manders Ind. Est., Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: 6" BENCH GRINDER Model: BG150-2 Standards & technical specifications referred to: Authorized Technical File Holder: Bill Evans 14/08/2023 The Director... -
Page 17: Component Parts Diagram
COMPONENT PARTS DIAGRAM... -
Page 18: Component Parts List
COMPONENT PARTS LIST PHLP HD SCR M5-.8 X 50 WHEEL GUARD (OUTER, LEFT) HEX NUT M12-1.75 LH GRINDING WHEEL FLANGE 1/2 GRINDING WHEEL 6" X 3/4" X 1/2" 36G PHLP HD SCR M5-.8 X 10 WHEEL GUARD (INNER, LEFT) FLANGE NUT M5-.8 WHEEL GUARD (INNER, RIGHT) CARRIAGE BOLT M5-.8 X 55 SPARK DEFLECTOR... - Page 19 COMPONENT PARTS LIST FLAT WASHER 6MM KNOB M6-1, D26, 6-LOBE GRINDER BASE PLATE FOOT (RUBBER) PHLP HD SCR M5-.8 X 8 EXT TOOTH WASHER 4MM TOOL REST (RIGHT) GRINDING WHEEL 6" X 3/8" X 1/2" 60G HEX NUT M12-1.75 WHEEL GUARD (OUTER, RIGHT) STRAIN RELIEF TYPE-1 1/2 POWER CORD 18G 3W 78"...
