Summary of Contents for Lumberjack BG250

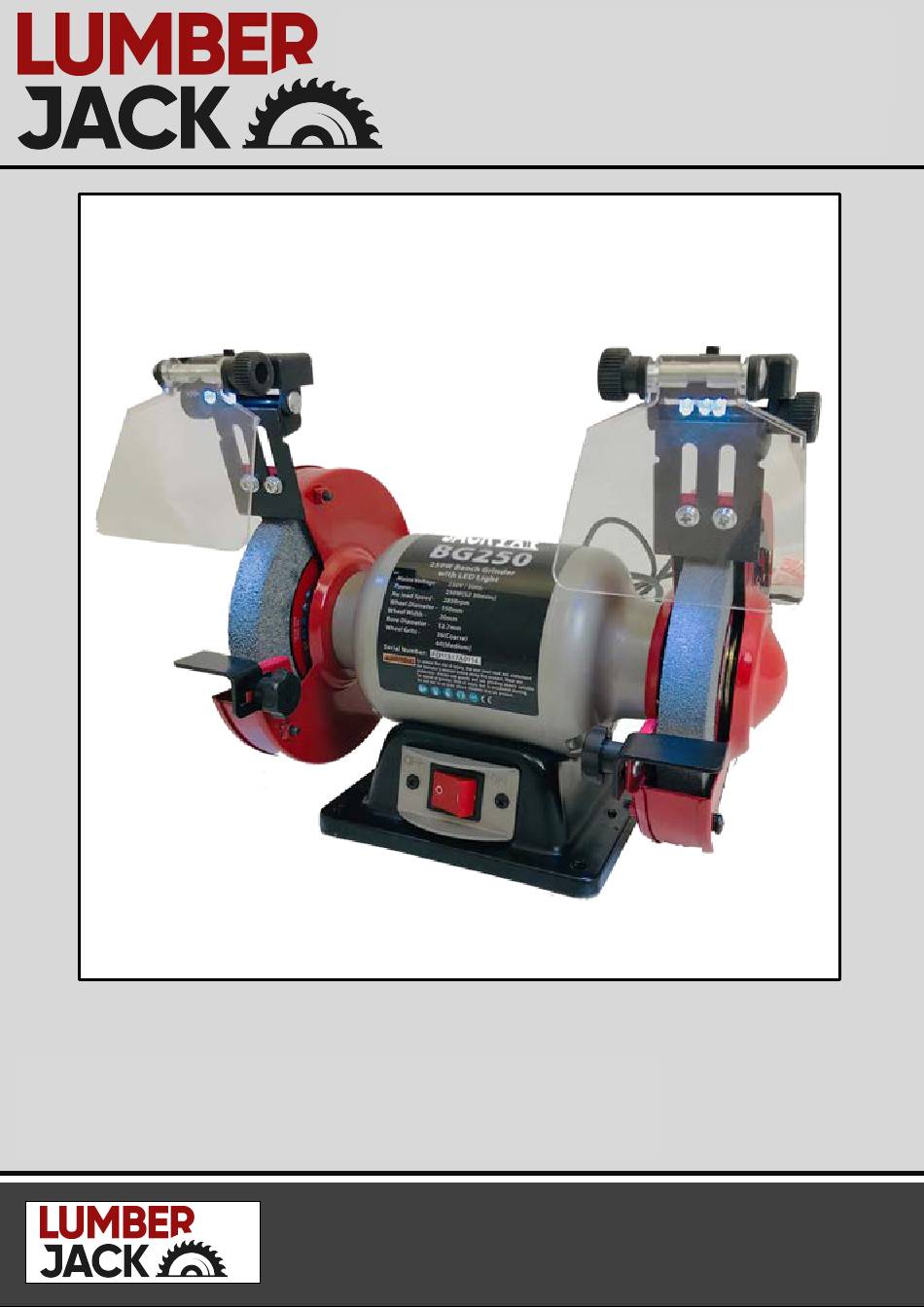

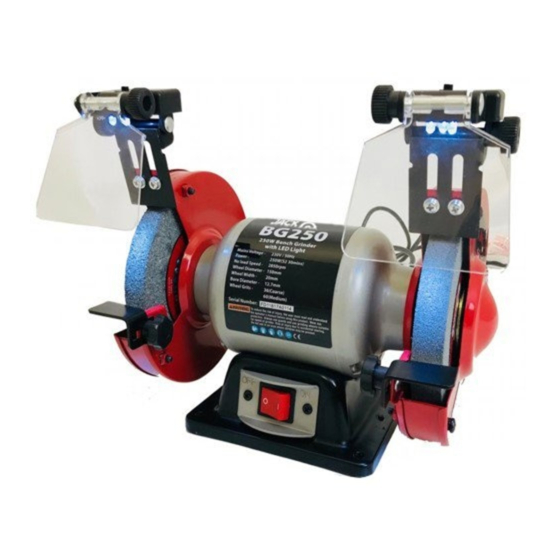

- Page 1 SAFETY AND OPERATING MANUAL 250W Bench Grinder with LED Light BG250 O RIGINAL INSTRUCTIONS BG250...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear Customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. BG250... - Page 4 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. BG250...
- Page 5 Stay alert and exercise control. Watch what operation. you are doing and use common sense. do not operate tool when you are tired. do not rush. BG250...
- Page 6 The smaller the gauge number of the wire the greater the capacity of the cord. f) When using a cable reel, always unwind the cable completely. BG250...
- Page 7 SYMBOLS AND POWER RATING CHART Danger! – Read the operating Caution! Wear safety goggles. instructions to reduce the risk of injury. Caution! Risk of Injury! Do Caution! Wear ear defenders. not reach into the running saw blade Caution! Wear a dust mask. BG250...
-
Page 8: Machine Details And Product Features
Any other use is considered as not intended use and any damages or injuries result from this unintended use is at operators own risk. This item is also not intended to be used for continuous production or production line use. BG250 AIR6V AIR6V AIR6V AIR6V... -
Page 9: Assembly
–Place spark shield onto spark deflector with LED assembly. Align the holes in the spark shield with the holes in the spark deflector with LED assembly. BG250... - Page 10 (not included). Bolts should be of sufficient length to accommodate the saw base, lock washers, hex nuts, and the thickness of the workbench. Tighten all four bolts securely. BG250...
- Page 11 Do not use wheels rated less than the speed of this tool. Failure to heed this warning could result in personal injury. CAUTION: Excessive pressure on a cold wheel may cause the wheel to crack. NOTICE: Never sharpen or grind anything made of aluminium, brass, or copper. BG250...
-
Page 12: Operation, Maintenance And Service
Bench grinders are ideal for the efficiency of your bits. sharpening tools such as chisels, scissors, etc., and for removing rust or corrosion. Grinders remove material rapidly so pressure is the key to efficient grinding. BG250... - Page 13 Therefore, no further lubrication is required. Power supply cord replacement If replacement of the power supply cord is necessary, this must be done by an authorized service centre in order to avoid a safety hazard. BG250...
- Page 14 – Remove the outer flange and grinding wheel. – To install a new grinding wheel, reverse the above procedure. NOTE: Be sure the grinding wheel and outer flange are properly seated on the spindle shaft. BG250...
-
Page 15: Lumberjack Guarantee
If a 1.2.3 If asked to do so by Lumberjack or its return is requested by the Authorised Dealer or Authorised dealer, you return the product at Lumberjack, you will be provided with a Returns your own cost to Lumberjack’s or supplying... - Page 16 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 17: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Bench Grinder(BG250) Is in compliance with the regulations included in the Directives:2006/95/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by Intertek Testing Services Ltd.,Shanghai,ETL Semko Building No.86,1198 Qinzhou Road(North),Caohejing Development Zone,Shanghai 200233,China. -
Page 18: Parts List
Phillips Screw spring washer +flat washer Assembly Cable Grommet Phillips Screw Ball bearing Phillips Screw Rotor Strain Relief Rubber sheath Strain Relief cover Cord &Plug Capacitor holder I type Hex Nut Right Work Rest Standard spring washer BG250 AIR6V AIR6V AIR6V... -
Page 19: Parts Diagram
Parts Diagram BG250...
