Lütze CPSRM50 Instruction Leaflet
  1. Manuals
  2. Brands
  3. Lütze Manuals
  4. Control Unit
  5. CPSRM50
  6. Instruction leaflet

Lütze CPSRM50 Instruction Leaflet

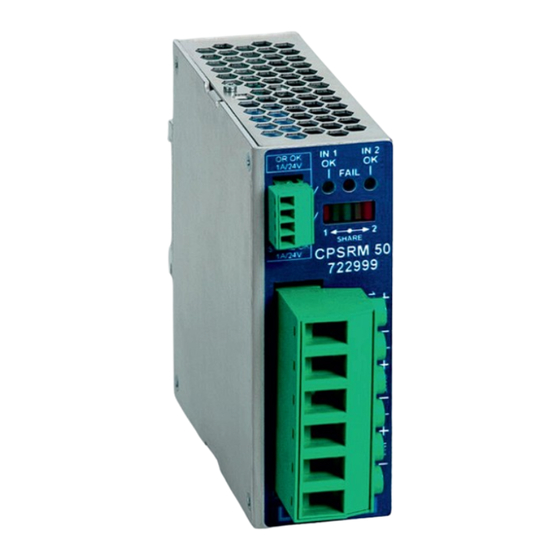

Redundant module 12 to 85 v, 50 a, potential-free signalling contact
